Pn16 Carbon Steel Flexible Concentric Reducer Rubber Coupling ss flexible bellows duct

Name: Pn16 Carbon Steel Flexible Concentric Reducer Rubber Coupling ss flexible bellows duct
Brand: ZhiCheng
SKU: KXT400
Price: 50 USD
Availability: InStock
Rating: 4.5 (154 reviews)

Product Details

Place of Origin: Gongyi, China

Brand Name: ZhiCheng

Model Number: KXT400

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: CN¥50-CN¥860

Packaging Details: 1. plastic film wrapped products 2. packing in cartons (according to product size and caliber) 3. loading wooden cases (1.1m*1.1m*1.1m) 4.Transportation: by sea or by air.

Delivery Time: 5-10 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: Production capacity 8000 pieces per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    duct flexible joint, Concentric Reducer Rubber Coupling, ss flexible bellows


Warranty:	1 Years	Customized Support:	OEM, ODM
Model Number:	KXT400	Connection:	Flange
Flange Material:	CS, SS304, SS316, Etc.	Work Stress:	1.0 - 2.5 MPa
Media:	Air, Water, Oil, Weak Acids And Bases	Size:	DN25-DN300mm
Certificates:	ISO9001	Flange Standards:	DIN/JIS/ANSI/BS/ISO
Vacuum:	53.5-100mmHg	Certification:	International Organization For Standardization

Warranty:	1 Years
Customized Support:	OEM, ODM
Model Number:	KXT400
Connection:	Flange
Flange Material:	CS, SS304, SS316, Etc.
Work Stress:	1.0 - 2.5 MPa
Media:	Air, Water, Oil, Weak Acids And Bases
Size:	DN25-DN300mm
Certificates:	ISO9001
Flange Standards:	DIN/JIS/ANSI/BS/ISO
Vacuum:	53.5-100mmHg
Certification:	International Organization For Standardization

Description

Pn16 Carbon Steel Flexible Concentric Reducer Rubber Coupling ss flexible bellows duct

Oil And Acid Resistant Pn16 Carbon Steel Flexible Concentric Reducer Rubber Coupling

Details Images

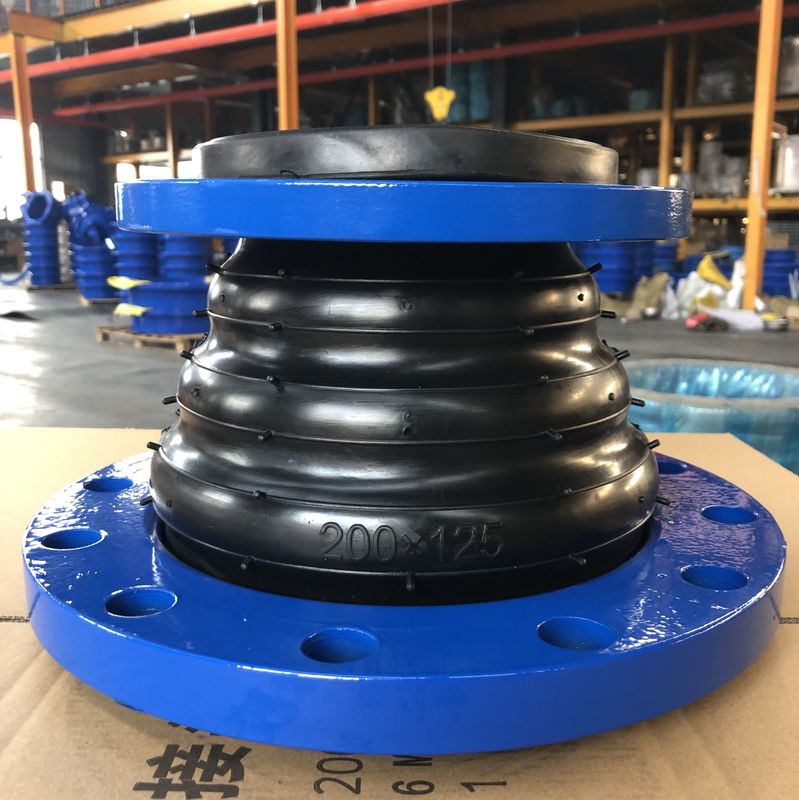

Pn16 Carbon Steel Flexible Concentric Reducer Rubber Coupling ss flexible bellows duct 0

Name	Size
Routine rubber joint	DN15~DN4000
Concentric reducer rubber joint	DN32xDN25~DN600xDN500
Eccentric reducer rubber joint	DN100xDN80~DN500xDN300

NO	Name	Material	Remarks
1	Outer/inner rubber	EPDM,NR,NBR,PTFE,BR,CR,BR+CR,FKM,Sylopute.	Select different materials according to the media
2	Frame	Nylon cord fabric	the density and number of layers determine the pressure
3	Pressurized ring	Nylon cord fabric	Prevent pressure bearing deformation from being pulled off
4	Flange	stainless steel,carbon steel,ductile iron.	Choose different materials according to your requirements

Product Paramenters

Advantages of bendable concentric reducing rubber joints:
Bendable concentric rubber joint with inner layer of rubber, middle layer of nylon cord fabric reinforced, outer rubber layer compound rubber bent sphere body using injection and pressure method vulcanized in cast iron, forged metal flange composition

. Pn16 Carbon Steel Flexible Concentric Reducer Rubber Coupling ss flexible bellows duct 1

Installation Notes

Pipeline installation with directional, installation of bendable concentric reducer rubber joint, rubber joint surface arrow indication direction must be consistent with the direction of the flow of the transport medium, its bendable concentric reducer rubber joint longer end for the export direction. When using bendable concentric reducer rubber joint to connect and install the pipeline, the two ends of the rubber joint sleeve inserted length should be adjusted symmetrically. As the coefficient of the bendable concentric reducing rubber joint is about 1/3 of the steel, the expansion gap can be reduced to 3-5 mm. when using flange connection, the flange end face shall be flush with the end face of the composite pipe.

According to different material, acid resistance rubber joint, flameproof rubber joint, oil resistant rubber joint, thermostatic
rubber joint, low temperature resistant rubber joint, wear resistance rubber joint can be made to suitable for various kinds of
medium, and environment.

Product packaging

1. Inner package: plastic film / carton cases
2. Outer pacakge: wooden cases

Our Advantages
1.24 hours online service-- Anytime,anywhere can
provide what you want
2.100% quality inspection Before Shippment
3.Reasonable and competitive price
4.Best production capability ,best quality control, best Service .

Company Profile

FAQ

Q:Are you trading company or manufacturer?
A:We are manufacturer of rubber expansion joint, bellow ,flange adaptor and flange with more than 30-years experience.

Q:Do you have products catalog?
A:Yes, we have. Please tell me your email or instant messager, we will send our catalog.

Q:Can you provide drawings and technical data?
A:Yes, our professional technical department will design and provide drawings and technical data.

Q:Do you provide samples? Is it free or charged?
A:Yes, we can offer sample free but shipping charges covered by customer.

Q:Can the products be manufactuered by customer's requirement?
A:Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.
