Product Details
Place of Origin: Henan, China
Brand Name: Zhicheng
Model Number: C2F
Payment & Shipping Terms
Minimum Order Quantity: 10 pieces
Price: $14.20/pieces 10-99 pieces
Packaging Details: The inner layer is packed in plastic film and the outer layer is packed in standard export wooden boxes.
Supply Ability: 8000 Piece/Pieces per Month
Warranty: |
1 Year |
Customized Support: |
ODM, OEM |
Technics: |
Forged |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Product Name: |

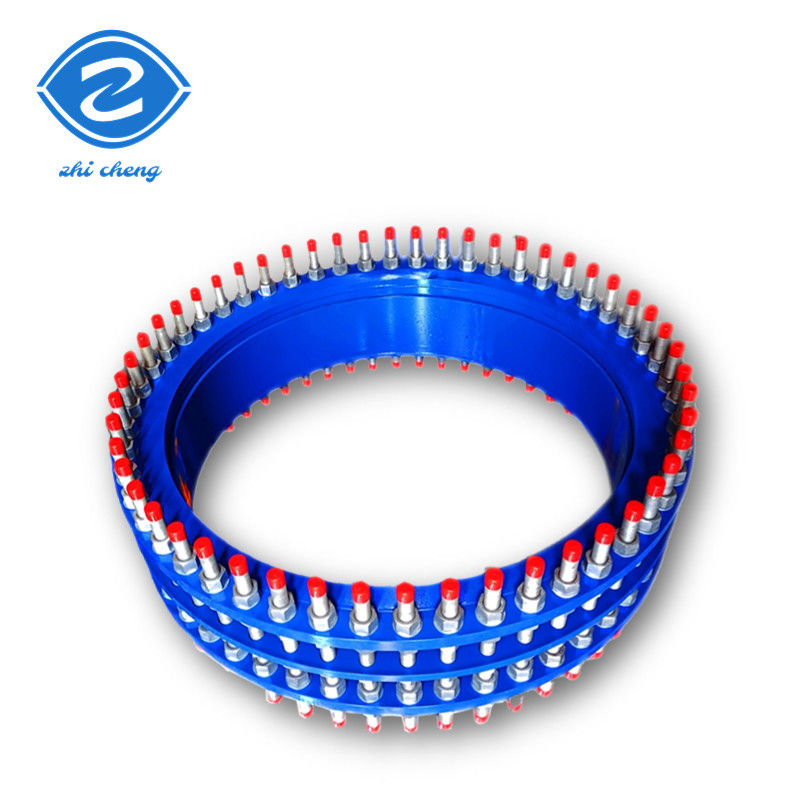

Double Flange Carbon Steel Ductile Iron Dismantling Joint |
Size: |
DN65 - DN3200mm |
Flange Standard: |
DIN, ANSI, BS, JIS, EN 1092 |
Working Pressure: |
PN10 - PN40 |
Working Temperature: |
-10°C ~+ 70°C |
Drawing: |
Offer |
Body Material: |
Stainless Steel/carbon Steel/ductile Iron |
Bolt And Nut: |
Stainless Steel/carbon Steel |
Certificate: |
ISO 9001 |
Application: |
Connect Pipes,valves Etc |
Port: |
Qingdao, Tianjin, Dalian, Shanghai, Ningbo, Guangzhou, Yiwu, Horgos, Jiegao, Etc |
Warranty: |
1 Year |
Customized Support: |
ODM, OEM |
Technics: |
Forged |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Product Name: |
Double Flange Carbon Steel Ductile Iron Dismantling Joint |
Size: |
DN65 - DN3200mm |
Flange Standard: |
DIN, ANSI, BS, JIS, EN 1092 |
Working Pressure: |
PN10 - PN40 |
Working Temperature: |
-10°C ~+ 70°C |
Drawing: |
Offer |
Body Material: |
Stainless Steel/carbon Steel/ductile Iron |
Bolt And Nut: |
Stainless Steel/carbon Steel |
Certificate: |
ISO 9001 |
Application: |
Connect Pipes,valves Etc |
Port: |
Qingdao, Tianjin, Dalian, Shanghai, Ningbo, Guangzhou, Yiwu, Horgos, Jiegao, Etc |
Customized Support ODM Pipe Fittings Forged Double Flange Carbon Steel Disassembly Joint
1.rubber expansion joint
2.bellow expansion joint
3.Union type rubber expansion joint
Introduction of dismantling joint
The dismantling joint consists of the main body, the sealing ring, the gland, the telescopic short pipe and other main parts.
It is a new product that connects pumps, valves and other equipment with pipelines. It connects them into a whole through full bolts, and has a certain displacement. In this way, it can be adjusted according to the installation size on site during installation and maintenance, and the axial thrust can be transferred back to the whole pipeline during work. This not only improves work efficiency, but also plays a certain protective role for pumps, valves and other equipment.
Advantages of dismantling joint
1.Installation is simple and convenient, convenient valve installation.
2.Rubber is strong in compression and elasticity.
3.Metal and sealing rings are highly stringent.
4.In the pipeline, it can effectively compensate and ease the pipe and blind plate thrust.
The dismantling joint is suitable for pipelines with flanges on both sides. When installing, the installation length of both ends of the product and flanges can be adjusted,can tighten the bolt of the pressure cap evenly, making it an integral whole with a certain displacement. It is convenient to install and repair, and it can be adjusted according to the size of the site.
If you need more details,pls click here to contact us now!
| Inner package of dismantling joint | plastic film |
| Outer pacakge of dismantling joint | wooden cases |
Clients visit our factory for confirming order detailes of mass production.
