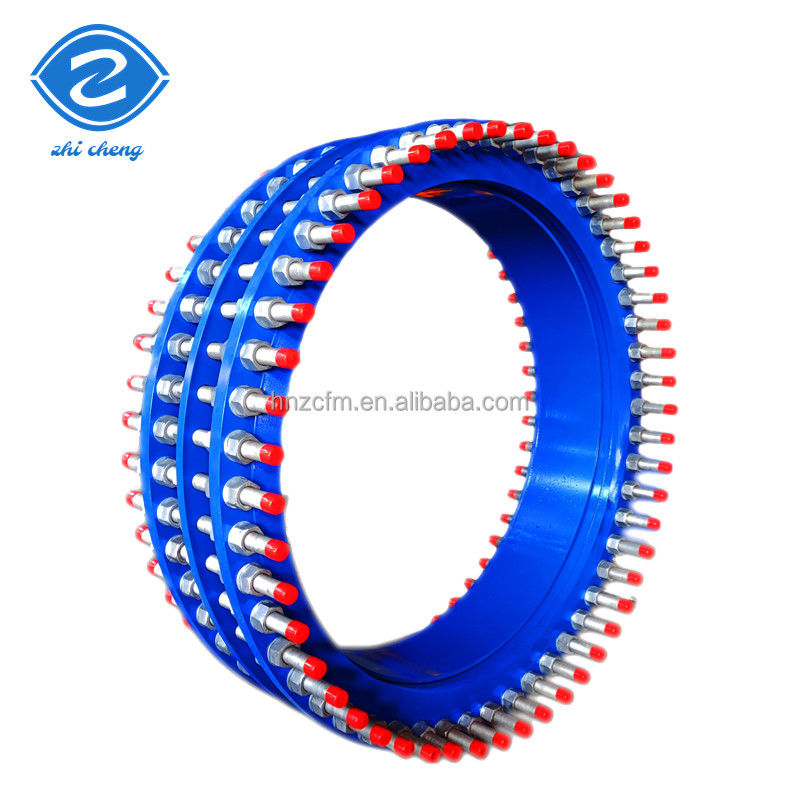

DN65-DN3200mm Ductile Iron Dismantling Joint Stainless Steel Joints Expansion And Disassembly

Product Details

Place of Origin: Henan, China

Brand Name: Zhicheng

Model Number: ZC

Payment & Shipping Terms

Minimum Order Quantity: 10 pieces

Price: $785.30/pieces >=10 pieces

Packaging Details: Inner plastic film packaging,outer standard export wooden case or pallet.

Supply Ability: 15000 Piece/Pieces per Month

Get Best Price
Contact Now
Specifications
Highlight:

ductile iron dismantling joint

,

dismantling joint Stainless Steel

,

DN65-DN3200mm dismantling joint

Warranty:
1 Year
Customized Support:
ODM, OEM
Technics:
Casting
Connection:
Flange
Shape:
Equal
Head Code:
Round
Product Name:
304 316 Stainless Steel Couplings Expansion And Disassembly Couplings
Size:
DN65-DN3200mm
Working Temperature:
-10~+70℃
Nominal Pressure:
PN10/16/25/40
Applicable Media:
Portable Water,neutral Liquids,sewage
Material:
Stainless Steel, Carbon Steel, Ductile Iron, Etc
Customized Production:
Support
Certificate:
ISO 9001
MOQ:
1 Piece
Drawing:
Offer
Port:
Qingdao, Tianjin, Dalian, Shanghai, Ningbo, Guangzhou, Yiwu, Horgos, Jiegao, Etc.
Warranty:
1 Year
Customized Support:
ODM, OEM
Technics:
Casting
Connection:
Flange
Shape:
Equal
Head Code:
Round
Product Name:
304 316 Stainless Steel Couplings Expansion And Disassembly Couplings
Size:
DN65-DN3200mm
Working Temperature:
-10~+70℃
Nominal Pressure:
PN10/16/25/40
Applicable Media:
Portable Water,neutral Liquids,sewage
Material:
Stainless Steel, Carbon Steel, Ductile Iron, Etc
Customized Production:
Support
Certificate:
ISO 9001
MOQ:
1 Piece
Drawing:
Offer
Port:
Qingdao, Tianjin, Dalian, Shanghai, Ningbo, Guangzhou, Yiwu, Horgos, Jiegao, Etc.
Description
DN65-DN3200mm Ductile Iron Dismantling Joint Stainless Steel Joints Expansion And Disassembly

Customized Support for DN65-DN3200mm Stainless Steel Joints Expansion and Disassembly


Why choose us

1. 24-hour online service - available with what you want.
2. 100% quality check before delivery.
3. Reasonable and competitive price.
4. High volume production capacity, fine quality control and excellent service.

DN65-DN3200mm Ductile Iron Dismantling Joint Stainless Steel Joints Expansion And Disassembly 0 Manufacturer Of Dn500dn1000pn10pn16 Stainless Steel Joints Expansion And Disassembly Joints

Product Description

Force transfer joints are also called expansion joints, compensators. They are composed of body, sealing rings, caps, extension and shortening tubes, etc. It is a new product that connects pumps, valves and other equipment with pipelines. It connects them into a whole through full bolts, and has a certain displacement. In this way, it can be adjusted according to the installation size on site during installation and maintenance, and the axial thrust can be transferred back to the whole pipeline during work. This not only improves work efficiency, but also protects pumps, valves and other equipment.

DN65-DN3200mm Ductile Iron Dismantling Joint Stainless Steel Joints Expansion And Disassembly 1

Model introduction

The model of detachable double flange power delivery joint is VSSJAFC (CC2F), it's suitable for the pipeline which both sides are connected with the flange, when installing, adjust the installation length of the two ends of product and flange, tighten the gland bolts diagonally in turn, make them a whole, and retain a certain amount of displacement, convenient for adjusting according to the size of site in the installation and maintenance, the axial thrust can be transmitted to the whole pipeline at work.

Function

Double flange loose sleeve power delivery joint is mainly used for the loose sleeve connection of pump, valve and other accessories.

Scope

Double flange loose sleeve power delivery joint is suitable for transporting sea water, fresh water, cold and hot water, drinking water, domestic sewage, crude oil, fuel oil, lubricating oil, refined oil, air, gas, the steam which temperature is not higher than 250°C, particle and powder other media etc.



Easy installation, and it can bear the axial tensile force of pipeline.

Characteristic

Double flange connection.

Technicial parameter

DN65-DN3200mm Ductile Iron Dismantling Joint Stainless Steel Joints Expansion And Disassembly 2

Technical parameters of ductile iron pipe fittings
No Name Quantity Material
1 Valve body 1 QT450-10,Q235A, ss304, 316 etc.
2 Gasket 1 NBR
3 Follower 1 QT450-10,Q235A,ss304,316 etc.
4 Limited short pipe 1 Q235A,ss304,316 etc.
5 Stud n Q235A,35#,ss304,316 etc.
6 Nut Tn Q235A,20#, ss304,316 etc.

DN65-DN3200mm Ductile Iron Dismantling Joint Stainless Steel Joints Expansion And Disassembly 3

Packaging & Shipping

1.Plastic film packaging,then fixed into standard export wooden case or pallet.

2.FedEx/DHL/UPS/TNT for sample.Door-to-Door.

3.By Air or By Sea for batch goods for LCL/FCL;Airport /Port receiving.

4.Customers specified freight forwarders or negotiable shipping methods!DN65-DN3200mm Ductile Iron Dismantling Joint Stainless Steel Joints Expansion And Disassembly 4

DN65-DN3200mm Ductile Iron Dismantling Joint Stainless Steel Joints Expansion And Disassembly 5

Certifications

The company has passed the ISO9001:2008 quality management system certification. The company has a strict quality management system, standard production processes and standardized factory inspection means to ensure that every product meets national standards and customer requirements.

DN65-DN3200mm Ductile Iron Dismantling Joint Stainless Steel Joints Expansion And Disassembly 6

Company Information

Henan Zhicheng Valve & Fittings Manufacturing Co.

The main products we offer are: rubber expansion joints, bellows expansion joints, metal hoses, disassembly joints, duckbill check valves, flange adapters, bellows-sealed globe valves, etc.

DN65-DN3200mm Ductile Iron Dismantling Joint Stainless Steel Joints Expansion And Disassembly 7

DN65-DN3200mm Ductile Iron Dismantling Joint Stainless Steel Joints Expansion And Disassembly 8

Advantages of our factory

1.Quick consulation service

2.Most reasonable price

3.High quality product

4.Strict quality control and inspection

5.Careful packing and transportation

6.100% quality warranty

Service of our factory

OEM&ODM service,we can processing customized products according to customer's requests, samples or drawings.

FAQ

Q: Can you make products according to customers' requirements?
A: We can make them according to your requirements.

Q: What are your payment terms?
A: T/T (30% as payment and the remaining 70% before delivery), L/C on sight.

Q: How do you guarantee quality?
A: If any quality problems arise during use, they can be returned at the consumer's request.

Q: Do you accept small orders?
A: Certainly.

Q: What are your shipping and delivery times?
A: By sea or air. Usually 7 to 14 days for delivery, depending on the quantity ordered

Q: Where is your nearest port of loading?
A: Shanghai, Qingdao or Tianjin, China.
