Product Details
Place of Origin: Henan, China
Brand Name: ZHICHENG
Model Number: ZCC
Payment & Shipping Terms
Minimum Order Quantity: 10 sets
Price: $321.60/sets 10-98 sets
Packaging Details: coupling is packed by plastic film,then fixed into standard export wooden case.
Supply Ability: 5000 Set/Sets per Month
Warranty: |
1year |
Customized Support: |
ODM, OEM |
Technics: |
Forged |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Certificate: |
ISO9001:2008 |
Nominal Diameter: |
DN65-3200mm |
Customized Production: |
Support |
Body Material: |
Carbon Steel |
Application: |
Connect Pipes,valves Etc |
Flange Standard: |
DIN, ANSI, BS, ISO, JIS,EN 1092 |
Working Pressure: |
PN10-PN40 |
Sealing Material: |
EPDM Or As You Request |
Applicable Media: |
Water, Sewage,oil,fuel,air,gas Etc |
Product Name: |
Epoxy Ductile Iron Double Flange Dismantling Joint Expansion Joint |
Port: |
Qingdao Port Or Negotiable |
Warranty: |
1year |
Customized Support: |
ODM, OEM |
Technics: |
Forged |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Certificate: |
ISO9001:2008 |
Nominal Diameter: |
DN65-3200mm |
Customized Production: |
Support |
Body Material: |
Carbon Steel |
Application: |
Connect Pipes,valves Etc |
Flange Standard: |
DIN, ANSI, BS, ISO, JIS,EN 1092 |
Working Pressure: |
PN10-PN40 |
Sealing Material: |
EPDM Or As You Request |
Applicable Media: |
Water, Sewage,oil,fuel,air,gas Etc |
Product Name: |
Epoxy Ductile Iron Double Flange Dismantling Joint Expansion Joint |
Port: |
Qingdao Port Or Negotiable |

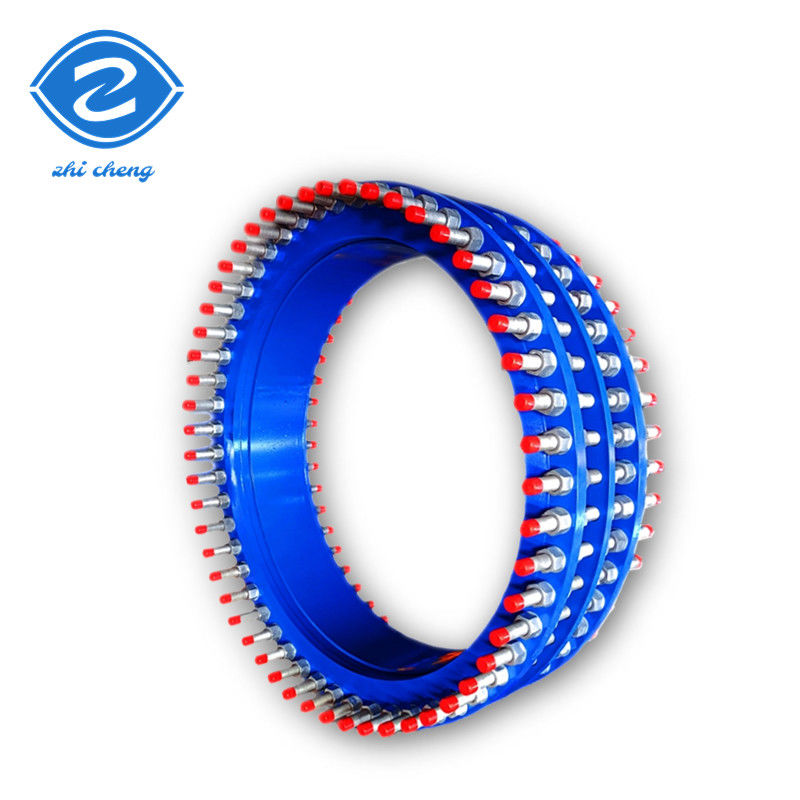

Double Flange Carbon Steel Expansion Pipe Metal Expansion Joint for Customized Support
Introduction of dismantling joint
The dismantling joint consists of the main body, the sealing ring, the gland, the telescopic short pipe and other main parts.
It is a new product that connects pumps, valves and other equipment with pipelines. It connects them into a whole through full bolts, and has a certain displacement. In this way, it can be adjusted according to the installation size on site during installation and maintenance, and the axial thrust can be transferred back to the whole pipeline during work. This not only improves work efficiency, but also plays a certain protective role for pumps, valves and other equipment.
Scope of dismantling joint
Dismantling joint is suitable for transporting sea water, fresh water, cold and hot water, drinking water, domestic sewage, crude oil, fuel oil, lubricating oil, refined oil, air, gas, the steam which temperature is not higher than 250°C, particle and powder other media etc.
Advantages of dismantling joint
1.Installation is simple and convenient, convenient valve installation.
2.Rubber is strong in compression and elasticity.
3.Metal and sealing rings are highly stringent.
4.In the pipeline, it can effectively compensate and ease the pipe and blind plate thrust.
Structure of dismantling joint
If you need more details,pls click here to contact us now!
| Inner package of dismantling joint | plastic film |
| Outer pacakge of dismantling joint | wooden cases |
Henan Province Zhicheng Valve & Fittings Manufacturing Co., Ltd. is located in Xicun Pipeline Equipment Industrial Park, Gongyi City, Henan Province, Mainland China.
The main products of the company are: disassembled joints, steel expanders, flexible waterproof casing, large diameter flanges, double flange drive expanders, sleeve compensators, bellows compensators (bellows compensators), rubber expanders, DC thrustless compensators, flexible expansion tubes, etc. The annual production capacity is 15,000 pieces.
Clients visit our factory for confirming order detailes of mass production.
| choose the products of ZHICHENG ? | |||||||||
|
|||||||||
| OEM&ODM service | We are a company which specialised in producing expansion joints, and we producing according to your samples or drawings ,if they are not available, we design according to your requirements and the application. |
| After sale service | Professional service team, all-weather emergency telephone within 48 hours to solve difficult problems, to provide you with the fastest and healthiest after-sales service. |
Q1. What media do you want to flow through the dismantling joint ?
A1. Sea water, fresh water, cold and hot water, drinking water or anything else.
Q2. What's the standard of the flane you want ?
A2. ANSI, ASEM, DIN, JIS, BS, or else.
Q3. What's the material of the dismantling joint you want ?
A3. Carbon steel, Stainless steel 304, 316 or else.
Q4. What's the nominal diameter, pressure and length of the dismantling join you want ?
A4. DN200mm,1.0Mpa, length = 400mm or else.
Q5. How many pieces of dismantling joint do you need in total ?
A5. 5 pieces, 8000 pieces or else.
Q6. Do you have any special requests?
A6. production within 5 days or else.
Pls write your needs in below,get a quick reply now!
