Product Details
Place of Origin: Henan, China
Brand Name: Zhicheng
Model Number: zcd
Payment & Shipping Terms
Price: $13.00/sets 1-199 sets
Packaging Details: Inner: plastic film, then put into carton case.
Outer: safe firmed export plywood case, marking on carton case and wooden case can be customized, or packing as per your requests.
Supply Ability: 16000 Piece/Pieces per Month
Warranty: |
1 Year |
Customized Support: |
ODM, OEM |
Technics: |
Forged |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Product Name: |
DN350 DN500 DN80 PN16 Flange Epdm Flexible Bellow Rubber Expans Joint |
Size: |
DN15-DN4000 |
Working Temperature: |
-15~80℃(-30~150℃) |
Rubber Material: |
EPDM, NR, NBR,PTFE, FPM,etc |
Flange Material: |
SS304,SS316,carbon Steel, Ductile Iron,etc |
Working Pressure: |
6~40bars(PN6~PN40) |
Test Pressure: |
1.5 Times Of Working Pressure |
Explosion Pressure: |
2 Times Of Working Pressure |
Certificate: |
ISO, TUV, WRAS, CO, MTC, Etc |
Manufacturer: |
Yes, Factory Add: Gongyi City,China |
Port: |
Qingdao, Tianjin, Dalian, Shanghai, Ningbo, Guangzhou, Yiwu, Horgos, Jiegao, Etc |
Warranty: |
1 Year |
Customized Support: |
ODM, OEM |
Technics: |
Forged |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Product Name: |
DN350 DN500 DN80 PN16 Flange Epdm Flexible Bellow Rubber Expans Joint |
Size: |
DN15-DN4000 |
Working Temperature: |
-15~80℃(-30~150℃) |
Rubber Material: |
EPDM, NR, NBR,PTFE, FPM,etc |
Flange Material: |
SS304,SS316,carbon Steel, Ductile Iron,etc |
Working Pressure: |
6~40bars(PN6~PN40) |
Test Pressure: |
1.5 Times Of Working Pressure |
Explosion Pressure: |
2 Times Of Working Pressure |
Certificate: |
ISO, TUV, WRAS, CO, MTC, Etc |
Manufacturer: |
Yes, Factory Add: Gongyi City,China |
Port: |
Qingdao, Tianjin, Dalian, Shanghai, Ningbo, Guangzhou, Yiwu, Horgos, Jiegao, Etc |

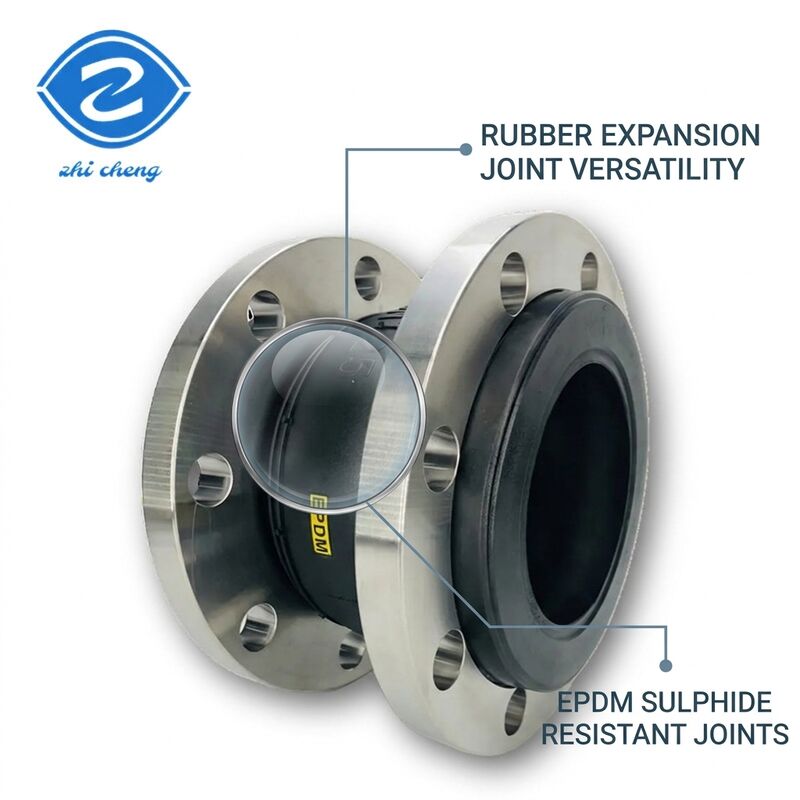

Rubber Expansion Joint Dn50 Dn100 Dn1000 Dn200 Dn300 Dn350 Flange Connection Pn80
|
Name of product
|
Flange Connection Dn50 Pn80 Dn100 Dn1000 Dn200 Dn300 Dn350 Epdm Bellows Rubber Expansion Joint
|
|
|
|
Structure of product
|
Inner and outer rubber,nylon cord fabric,steel wire and flange
|
|
|
|
Size
|
DN15-DN4000
|
|
|
|
Material of rubber
|
EPDM, NR, NBR,PTFE, FPM,etc
|
|
|
|
Material of flange
|
SS304,SS316,carbon steel, ductile iron,etc
|
|
|
|
Standard of flange
|
DIN, BS, ANSI, JIS,ISO,etc.
|
|
|
|
Product classification
|
Single sphere , Double sphere, Union type,etc
|
|
|
|
Operation condition
|
|
|
|
Working temperature
|
-15~80℃(-30~150℃)
|
|
|
Working pressure
|
6~40bars(PN6~PN40)
|
|
|
Test pressure
|
1.5 times of working pressure
|
|
|
Explosion pressure
|
2 times of working pressure
|
|
|
Applicable Media
|
water,sea water,hot water,oil,acid,alkali, and so on
|
|
| Issue.1 | Solution. | Issue.2 | Solution. |
| Pull-off caused by excessive displacement and exposed nylon rope fabric | Limit pullers should be added | Long storage time and short service life | 1. When storing rubber joints, avoid placing them in the rain, in the or in places with severe weathering to prevent the rubber from aging. 2. For products stored for a long time, check the appearance before use, if there is any damage or aging, they should not be installed and used again. 3. Check the site installation environment. If installed outdoors without shade, it is recommended to install a protective cover to protect the rubber joint from wind, and rain and prolong the service life of the rubber joint. |
Henan Province Zhicheng Valve & Fittings Manufacturing Co.
Our mission: on product details, improve innovation, and meet user needs.
Our value: integrity and standardization, cooperation and win-win
Main products: rubber expansion joints, bellows expansion joints, metal hoses, double flange disassembly joints, flange adapters, fabric expansion joints, bellows
Q: Are you a trading company or a manufacturer? A: We are a manufacturer of rubber expansion joints, bellows expansion joints, metal hoses, breakaway joints, flange adapters and flanges with over 30 years experience.
Q: Do you have a catalogue? A: Yes, we do. Please let me know your email or instant messenger and we will send you our catalogue.
Q: Can you provide drawings and technical information? A: Yes, our specialist technical department will design and provide drawings and technical information.
Q: Do you offer samples? Are they free of charge or do you charge for them? A: Yes, we can provide samples for free, but the shipping cost is borne by the customer.
Q: Can the products be produced according to the customer's requirements? A: Yes, the above specifications are standard specifications and we can design and manufacture as required.
Please write your requirements below and contact us for more details!
