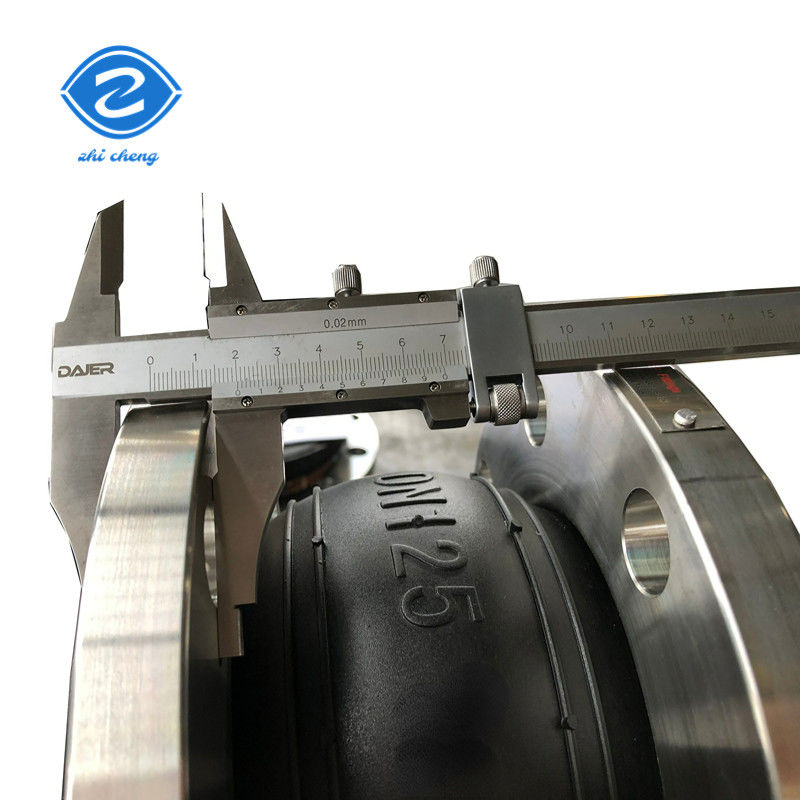

Round Head Code Dn1000pn16 Custom Rubber Joint Bellows Compensator for Large Expansion

Name: Round Head Code Dn1000pn16 Custom Rubber Joint Bellows Compensator for Large Expansion
Brand: Zhicheng
SKU: ZCF
Price: 16.30 USD
Availability: InStock
Rating: 4.9 (148 reviews)

Product Details

Place of Origin: Henan, China

Brand Name: Zhicheng

Model Number: ZCF

Payment & Shipping Terms

Minimum Order Quantity: 10 pieces

Price: $16.30/pieces 10-99 pieces

Packaging Details: Inner: plastic film packing.
Outer: wooden case packing.

Supply Ability: 10000 Piece/Pieces per Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Warranty:	1 Year	Customized Support:	ODM, OEM
Technics:	Forged	Connection:	Flange, Flanged
Shape:	Equal	Head Code:	Round
Product Name:	Valve Connector Carbon Steel Flange Type Epdm Rubber Expansion Joint	Nominal Diameter:	DN32-DN1200mm
Working Pressure:	PN6~PN40	Working Temperature:	-15~80℃
Applicable Media:	Water, Oil, Air, Sewage,etc	Material Of Flange:	Carbon Steel
Packing:	Wooden Case	Standard:	DIN Standard
MOQ:	1 Piece	Port:	Tianjin Port, Qingdao Port Or Negotiable

Warranty:	1 Year
Customized Support:	ODM, OEM
Technics:	Forged
Connection:	Flange, Flanged
Shape:	Equal
Head Code:	Round
Product Name:	Valve Connector Carbon Steel Flange Type Epdm Rubber Expansion Joint
Nominal Diameter:	DN32-DN1200mm
Working Pressure:	PN6~PN40
Working Temperature:	-15~80℃
Applicable Media:	Water, Oil, Air, Sewage,etc
Material Of Flange:	Carbon Steel
Packing:	Wooden Case
Standard:	DIN Standard
MOQ:	1 Piece
Port:	Tianjin Port, Qingdao Port Or Negotiable

Description

Round Head Code Dn1000pn16 Custom Rubber Joint Bellows Compensator for Large Expansion

Product Description

Specification

Name of product	ANSI DN100 stainless steel flanged compensator bellow compens flexible rubber expans joint
Structure of product	Inner and outer rubber,nylon cord fabric,steel wire and flange
Size	DN15-DN4000
Material of rubber	EPDM, NR, NBR,PTFE, FPM,etc
Material of flange	SS304,SS316,carbon steel, ductile iron,etc
Standard of flange	DIN, BS, ANSI, JIS,ISO,etc
Product classification	Single sphere , Double sphere, Union type,etc

Product Paramenters

Packing & Delivery

Inner: plastic film, then put into carton case.
Outer: safe firmed export plywood case, marking on carton case and wooden case can be customized, or packing as per your requests.

Company Profile

Company :Henan Province Zhicheng Valve & Fittings Manufacturing Co.
Address:Xicun Pipeline Industrial Park,Xicun Town,Gongyi City,Henan Province,China
The factory covers an area of 40,000 square meters. The production equipment is complete, with a monthly output of 10,000 pieces.
The company has passed the ISO9001:2008 quality management system certification and has a strict quality control system, standard
production process and standardized delivery inspection program to ensure that the delivered products meet the technical
requirements.
The main products are: rubber expansion joints, bellows expansion joints, metal hoses, double flange disassembly joints, flange adapters

Advantages

Production process

Installation instructions: 1.Installation bolts should be symmetrical and gradually pressurized to prevent local leakage. 2.1.6MPa above working pressure,installation bolts should have elastic pad to prevent bolts loosening when working. 3.Vertical force support should be provided at both ends of the joint pipe during vertical installation, and anti-pull-off device can be adopted to prevent working pressure pull-off. 4.Rubber joints should be installed away from the heat source. ozone. Strictly prohibit strong radiation light. exposure and the use of non-conforming media. 5.Rubber joints shall be strictly prohibited from cutting the surface and sealing surfaces during transportation and handling.

FAQ

Q: Are you a trading company or a manufacturer? A: We are a manufacturer of rubber expansion joints, bellows expansion joints, metal hoses, breakaway joints, trimmer joints, flange adapters and flanges with over 30 years experience. Q: Do you have a catalogue? A: Yes, we do. Please let me know your email or instant messenger and we will send you our catalogue. Q: Can you provide drawings and technical information? A: Yes, our specialist technical department will design and provide drawings and technical information. Q: Do you offer samples? Are they free of charge or do you charge for them? A: Yes, we can provide samples for free, but the shipping cost is borne by the customer. Q: Can the products be manufactured according to the customer's requirements? A: Yes, the above specifications are standard and we can design and manufacture as required. Please write your requirements below and contact us for more details!
