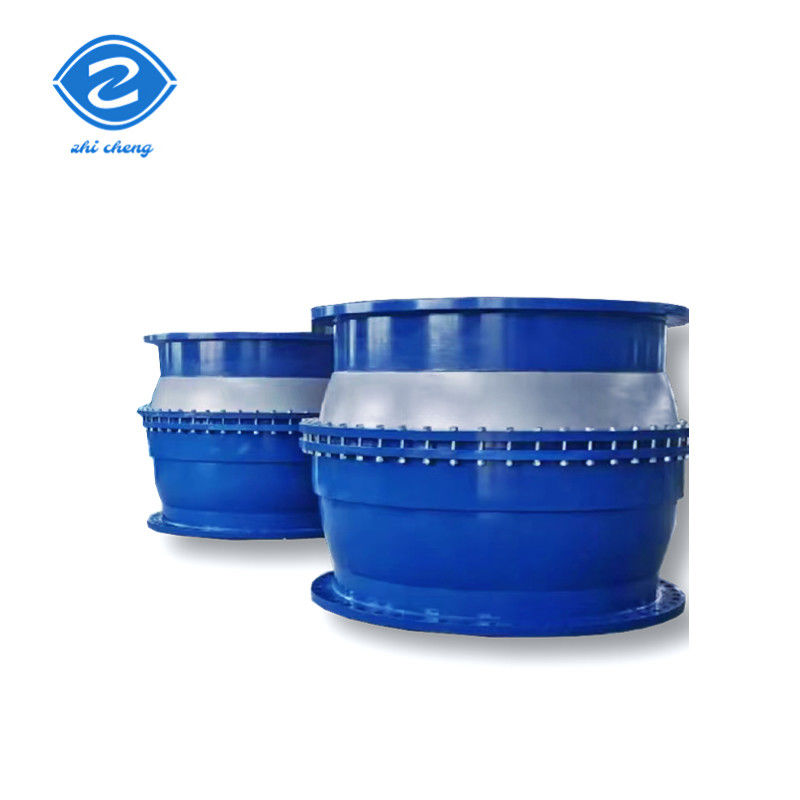

DN800 6" 8 Inch Double Flange Limit Expansion Joint Round Head For High Pressure Pipes

Name: DN800 6" 8 Inch Double Flange Limit Expansion Joint Round Head For High Pressure Pipes
Brand: ZHICHENG
SKU: ZCD
Price: 65.30 USD
Availability: InStock
Rating: 4.5 (147 reviews)

Product Details

Place of Origin: Henan, China

Brand Name: ZHICHENG

Model Number: ZCD

Payment & Shipping Terms

Price: $65.30/sets 1-99 sets

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    8 expansion joint, 8 inch expansion joint, 6 pipe expansion joint


Warranty:	1year	Customized Support:	OEM, ODM
Technics:	Casting	Connection:	Flange
Shape:	Equal	Head Code:	Round
Standard::	ANSI JIS DIN	Size::	DN100mm-DN3200mm
Application::	Pipe Lines Connect	Range Of Application::	Acid, Alkali, Corrosion, Oil, Hot Water, Cold Water, Etc
Working Temperature:	-40-350℃	Product Name::	Ball Compensation Joint E-type Compensator
Material::	Carbon Steel, Stainless Steel	Pressure::	0.6-4.0MPa
Certificate::	ISO9001-2008	Customized:	OEM, ODM

Warranty:	1year
Customized Support:	OEM, ODM
Technics:	Casting
Connection:	Flange
Shape:	Equal
Head Code:	Round
Standard::	ANSI JIS DIN
Size::	DN100mm-DN3200mm
Application::	Pipe Lines Connect
Range Of Application::	Acid, Alkali, Corrosion, Oil, Hot Water, Cold Water, Etc
Working Temperature:	-40-350℃
Product Name::	Ball Compensation Joint E-type Compensator
Material::	Carbon Steel, Stainless Steel
Pressure::	0.6-4.0MPa
Certificate::	ISO9001-2008
Customized:	OEM, ODM

Description

DN800 6" 8 Inch Double Flange Limit Expansion Joint Round Head For High Pressure Pipes

DN800 Round Head D Type Large Deflection Compensator for High Pressure Pipes -40-350C

Details Images

Specification

Product name	Ball compensation joint E-type compensator
Size	DN100-DN2400
Material	carbon steel,stainless steel
Application	Pipe Lines Connect
Working Pressure	0.6 Mpa ~4.0 Mpa
Working Temperature	-40-350℃

Product Paramenters

The spherical compensator is a kind of equipment to solve the thermal expansion and contraction of pipelines, which can be widely used in metallurgy, petroleum, chemical industry, electric power, light industry, textile, construction and national defense construction industries, etc. Specific uses are as follows 1,It is used in thermal pipeline to compensate thermal expansion, its compensation capacity is 5-10 times of "WHP" compensator.

2,It is used in rocket launch pad and aircraft exhaust facility to compensate impact expansion.

3,It is used in vaporization cooling system of metallurgical equipment (such as blast furnace, converter, electric furnace, heating furnace, etc.) for universal joint.

4,It is used in In various pipelines of buildings to prevent damage to the pipeline due to uneven sinking of the foundation, or earthquake and other unexpected reasons.

Manufacturing Technique

Packing & Delivery

Inner: plastic film, then put into carton case.
Outer: safe firmed export plywood case, marking on carton case and wooden case can be customized, or packing as per your requests.

FAQ

Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement
Q: What are your payment terms?
A: T/T (30% as desposit, the rest 70% will be paid before delivery), L/C at sight
Q: Can I visit your factory before the order?
A: Yes, welcome to our factory to check the quality
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned or according to consumer's requests
Q: Do you accept small quantity order?
A: Of course we do.
Q: Can we choose different material?
A: Yes, the material can be chose according to your requirement.
Q: And what is your shipment and delivery time?
A: By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
Q: And what's your packing?
A: carton cases inside, export wooden cases outside.
