Product Details
Place of Origin: Henan, China
Brand Name: ZHICHENG
Certification: ISO
Model Number: KXT
Payment & Shipping Terms
Price: $14.50/sets 1-99 sets
Packaging Details: Inner: plastic film, then put into carton case.
Outer: safe firmed export plywood case, marking on carton case and wooden case can be customized, or packing as per your requests.
Supply Ability: 10000 Set/Sets per Month
Warranty: |
1year |
Customized Support: |
ODM, OEM |
Technics: |
Forged |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Product Name: |

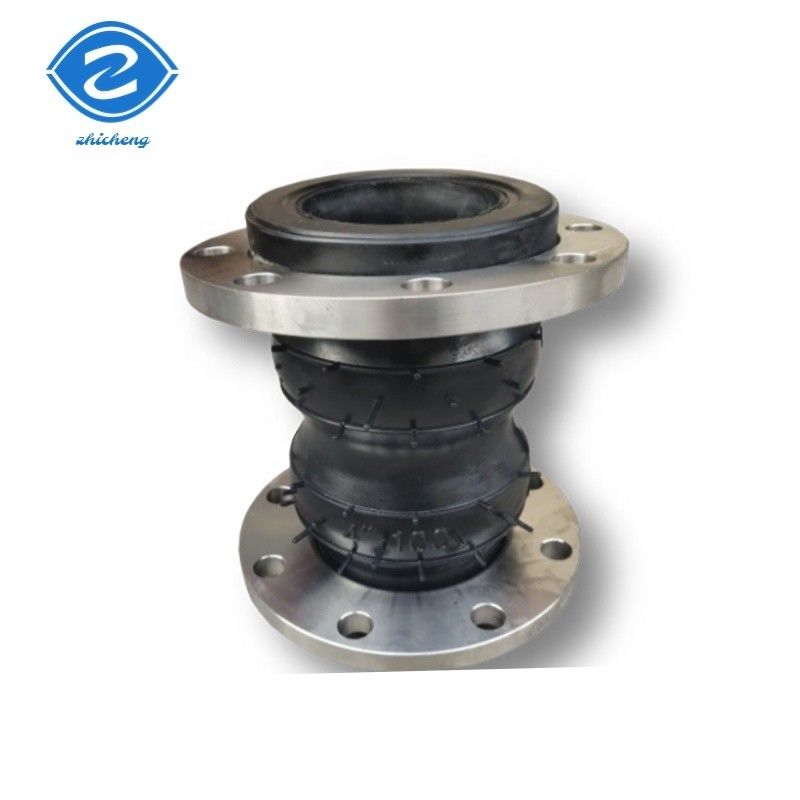

Double Sphere Rubber Expansion Joint |
Nominal Diameter: |
DN25 - DN500 |
Working Pressure: |
PN6 - PN40 |
Working Temperature: |
15~+80°C(special:-30~+150°C) |
Applicable Media: |
Air, Water, Sewage, Acid, Oil, Etc. |
Rubber Material: |
NR, EPDM, NBR, Etc. |
Flange Material: |
Carbon Steel, Stainless Steel Etc. |
Flange Standard: |
DIN, ANSI, JIS, Etc. |
Factory Address: |
Henan, China |
Port: |
Qingdao, Tianjin, Dalian, Shanghai, Ningbo, Guangzhou, Yiwu, Etc. |
Warranty: |
1year |
Customized Support: |
ODM, OEM |
Technics: |
Forged |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Product Name: |
Double Sphere Rubber Expansion Joint |
Nominal Diameter: |
DN25 - DN500 |
Working Pressure: |
PN6 - PN40 |
Working Temperature: |
15~+80°C(special:-30~+150°C) |
Applicable Media: |
Air, Water, Sewage, Acid, Oil, Etc. |
Rubber Material: |
NR, EPDM, NBR, Etc. |
Flange Material: |
Carbon Steel, Stainless Steel Etc. |
Flange Standard: |
DIN, ANSI, JIS, Etc. |
Factory Address: |
Henan, China |
Port: |
Qingdao, Tianjin, Dalian, Shanghai, Ningbo, Guangzhou, Yiwu, Etc. |
The sphere length of the double-ball rubber joint is longer than that of the ordinary sphere,
which facilitates connection on both sides of the pipeline, so compensation is large, with an
axial displacement of 80-95mm. Compared to ordinary rubber joints, the compensation is
much larger.
|
Operation condition
|
||
| Working temperature | -15~80℃(-30~150℃) | |
| Working pressure | 6~40bars(PN6~PN40) | |
| Test pressure | 1.5 times of working pressure | |
| Explosion pressure | 2 times of working pressure | |
| Applicable Media | water,sea water,hot water,oil,acid,alkali, and so on | |
|
Item
|
Nominal diameterDN(mm)
|
||||
| 200~300(8-12'') | 50~150(2-6'') | ||||
| KXTJGD)-A(I) | KXTJGD)-A(ll) | KXTJGD)-A(lll) | |||
| Working pressure | 1.0(10) |
1.6(16)
|
2.5(25)
|
||
| Burst pressure |
2.0(20)
|
3.0(30) |
4.5(45)
|
||
| Vacuum degree | 40(300) | 53.3(400) |
86.7(650)
|
||
| Temperature | -15 to +115 Special up to -30 to +250 | ||||
| Applicable media | air, compressed air, water, sea water, hot water, oil, acids, alkalis and other chemicals | ||||
