Product Details
Place of Origin: Henan, China
Brand Name: ZHICHENG
Model Number: CC2F
Payment & Shipping Terms
Price: $35.60/sets 1-99 sets
Warranty: |
1 Year |
Customized Support: |
ODM, OEM |
Technics: |
Casting Forging |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Nominal Size: |
DN25 - DN3000mm |
Working Pressure: |
From Pn10 To Pn25 |
Flange Drilling: |
DIN, ANSI, BS, ISO, JIS,EN 1092 |
Material Of Flange: |
Galvanized Carbon Steel ,Stainless Steel 304,316 Etc. |
Drawing: |
Offer |
Applicable Media: |
Water |
Export Countries: |
Canada, America, Australia, Chile, Malaysia, Philippine Etc |
Product Certificate: |
ISO9001, WRAS |
Brand: |
Runtaida |
Product Name: |
Flange Connection Disassembly Joint Expansion Joint |
Warranty: |
1 Year |
Customized Support: |
ODM, OEM |
Technics: |
Casting Forging |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Nominal Size: |
DN25 - DN3000mm |
Working Pressure: |
From Pn10 To Pn25 |
Flange Drilling: |
DIN, ANSI, BS, ISO, JIS,EN 1092 |
Material Of Flange: |
Galvanized Carbon Steel ,Stainless Steel 304,316 Etc. |
Drawing: |
Offer |
Applicable Media: |
Water |
Export Countries: |
Canada, America, Australia, Chile, Malaysia, Philippine Etc |
Product Certificate: |
ISO9001, WRAS |
Brand: |
Runtaida |
Product Name: |
Flange Connection Disassembly Joint Expansion Joint |

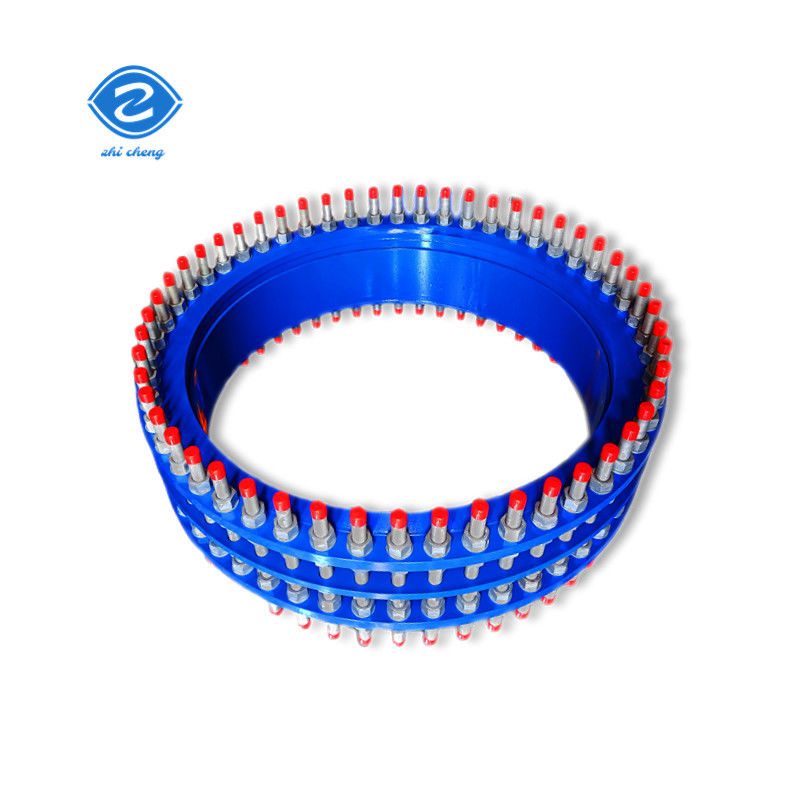

The force transmission joint is made by adding flanged short pipes and force transmission
screws to the loose flange compensation joint. This type of compensation is different from
the loose flange compensation joint and the loose flange limit compensation joint in that its
compensation amount refers to the adjustment amount during installation and disassembly
Once all the nuts are tightened, it becomes a rigid connection that can transmit axial force,
thereby protecting valves, pumps, and other equipment.
No.
|
Name
|
Quantity
|
Material
|
1 | Valve | 1 | QT450-10,Q235A,304,316etc. |
2 | Gasket | 1 | NBR |
3 | Follower | 1 | QT450-10,Q235A,304,316etc. |
4 | limited short pipe | 1 | Q235A,304,316etc. |
5 | stud | n | Q235A,35#,304,316etc. |
6 | nut | Tn | Q235A,20#,304,316etc. |
The dismanting joint is suitable for pipelines with flanges on both sides. When installing, the
installation length of both ends of the product and flanges can be adjusted. The diagonal fund-raising
can tighten the bolt of the pressure cap evenly, making it an integral whole with a certain
displacement. It is convenient to install and repair, and it can be adjusted according to the size
of the site.
