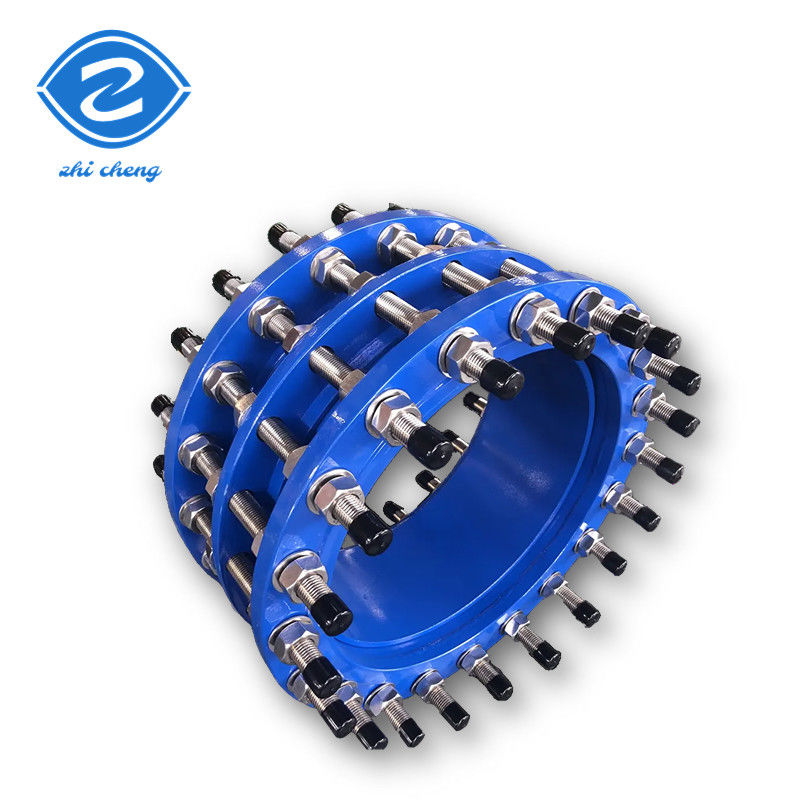

Dn600 Pn16 Carbon Steel Double Disassembly Joint Flange Dismantling Joint Stainless Steel

Name: Dn600 Pn16 Carbon Steel Double Disassembly Joint Flange Dismantling Joint Stainless Steel
Brand: ZHICHENG
SKU: C2F
Price: 35.60 USD
Availability: InStock
Rating: 5 (143 reviews)

Product Details

Place of Origin: Henan, China

Brand Name: ZHICHENG

Model Number: C2F

Payment & Shipping Terms

Price: $35.60/sets 1-99 sets

Packaging Details: Steel flange expansion dismantling joint pipe fitting mould is packed in a bubble bag, put in a cardboard box, and finally packed in a wooden box.

Supply Ability: 10000 Set/Sets per Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            dismantling joint stainless steel, Double Disassembly Joint, Disassembly Joint Flange


Warranty:	1 Year	Customized Support:	ODM, OEM
Technics:	Casting Forging	Connection:	Flange
Shape:	Equal	Head Code:	Round
Nominal Size:	DN25 - DN3000mm	Working Pressure:	From Pn10 To Pn25
Flange Drilling:	DIN, ANSI, BS, ISO, JIS,EN 1092	Material Of Flange:	Galvanized Carbon Steel ,Stainless Steel 304,316 Etc.
Drawing:	Offer	Applicable Media:	Water
Export Countries:	Canada, America, Australia, Chile, Malaysia, Philippine Etc	Product Certificate:	ISO9001, WRAS
Brand:	Runtaida	Product Name:	Flange Connection Disassembly Joint Expansion Joint
Port:	Qingdao Port Or Negotiable

Warranty:	1 Year
Customized Support:	ODM, OEM
Technics:	Casting Forging
Connection:	Flange
Shape:	Equal
Head Code:	Round
Nominal Size:	DN25 - DN3000mm
Working Pressure:	From Pn10 To Pn25
Flange Drilling:	DIN, ANSI, BS, ISO, JIS,EN 1092
Material Of Flange:	Galvanized Carbon Steel ,Stainless Steel 304,316 Etc.
Drawing:	Offer
Applicable Media:	Water
Export Countries:	Canada, America, Australia, Chile, Malaysia, Philippine Etc
Product Certificate:	ISO9001, WRAS
Brand:	Runtaida
Product Name:	Flange Connection Disassembly Joint Expansion Joint
Port:	Qingdao Port Or Negotiable

Description

Dn600 Pn16 Carbon Steel Double Disassembly Joint Flange Dismantling Joint Stainless Steel

ODM Dn600 Pn16 Carbon Steel Double Flange Disassembly Joint with Flange Connection

Video description

Product Description

Specification

No.	Name	Quantity	Material
1	Valve	1	QT450-10,Q235A,304,316etc.
2	Gasket	1	NBR
3	Follower	1	QT450-10,Q235A,304,316etc.
4	limited short pipe	1	Q235A,304,316etc.
5	stud	n	Q235A,35#,304,316etc.
6	nut	Tn	Q235A,20#,304,316etc.

Installation Instructions

Technological process
The dismanting joint is suitable for pipelines with flanges on both sides. When installing, the installation length of both ends
of the product and flanges can be adjusted. The diagonal fund-raising can tighten the bolt of the pressure cap evenly, making it
an integral whole with a certain displacement. It is convenient to install and repair, and it can be adjusted according to the size of the site.

Company Profile

Company :Henan Province Zhicheng Valve & Fittings Manufacturing Co.
Address:Xicun Pipeline Industrial Park,Xicun Town,Gongyi City,Henan Province,China
The factory covers an area of 40,000 square meters. The production equipment is complete, with a monthly output of 10,000 pieces.
The company has passed the ISO9001:2008 quality management system certification and has a strict quality control system, standard
production process and standardized delivery inspection program to ensure that the delivered products meet the technical
requirements.
The main products are: rubber expansion joints, bellows expansion joints, metal hoses, double flange disassembly joints, flange adapters
