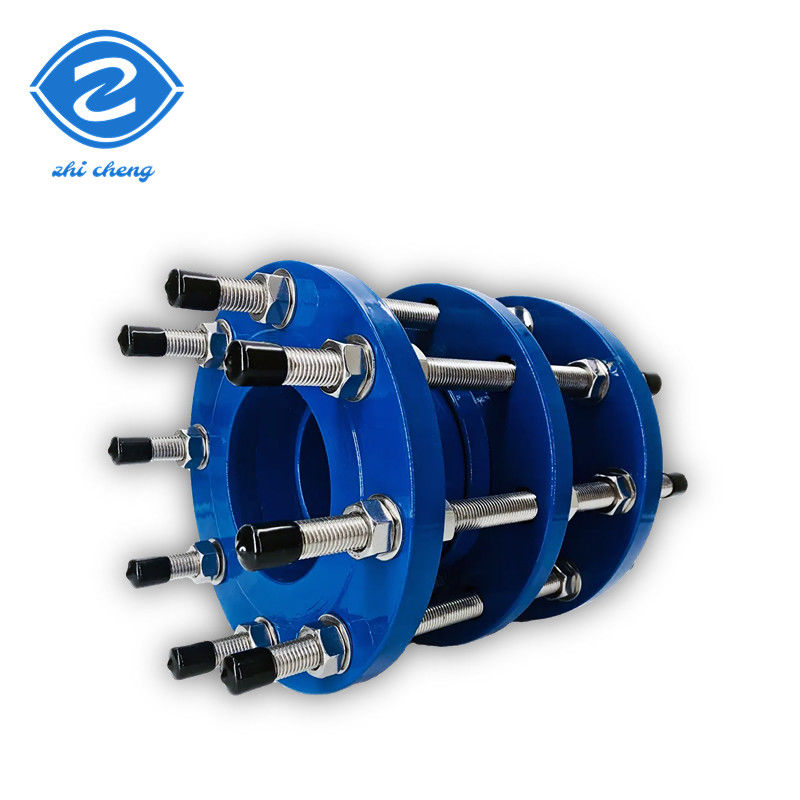

Product Details
Place of Origin: Henan, China
Brand Name: ZHICHENG
Model Number: C2F
Payment & Shipping Terms
Price: $35.60/sets 1-99 sets
Packaging Details: Steel flange expansion dismantling joint pipe fitting mould is packed in a bubble bag, put in a cardboard box, and finally packed in a wooden box.
Supply Ability: 10000 Set/Sets per Month
Warranty: |
1 Year |
Customized Support: |
ODM, OEM |
Technics: |
Casting Forging |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Nominal Size: |
DN25 - DN3000mm |
Working Pressure: |
From Pn10 To Pn25 |
Flange Drilling: |
DIN, ANSI, BS, ISO, JIS,EN 1092 |
Material Of Flange: |
Galvanized Carbon Steel ,Stainless Steel 304,316 Etc. |
Drawing: |
Offer |
Applicable Media: |
Water |
Export Countries: |
Canada, America, Australia, Chile, Malaysia, Philippine Etc |
Product Certificate: |
ISO9001, WRAS |
Brand: |
Runtaida |
Product Name: |
Flange Connection Disassembly Joint Expansion Joint |
Port: |
Qingdao Port Or Negotiable |
Warranty: |
1 Year |
Customized Support: |
ODM, OEM |
Technics: |
Casting Forging |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Nominal Size: |
DN25 - DN3000mm |
Working Pressure: |
From Pn10 To Pn25 |
Flange Drilling: |
DIN, ANSI, BS, ISO, JIS,EN 1092 |
Material Of Flange: |
Galvanized Carbon Steel ,Stainless Steel 304,316 Etc. |
Drawing: |
Offer |
Applicable Media: |
Water |
Export Countries: |
Canada, America, Australia, Chile, Malaysia, Philippine Etc |
Product Certificate: |
ISO9001, WRAS |
Brand: |
Runtaida |
Product Name: |
Flange Connection Disassembly Joint Expansion Joint |
Port: |
Qingdao Port Or Negotiable |
|
No.
|
Name
|
Quantity
|
Material
|
| 1 | Valve | 1 | QT450-10,Q235A,304,316etc. |
| 2 | Gasket | 1 | NBR |
| 3 | Follower | 1 | QT450-10,Q235A,304,316etc. |
| 4 | limited short pipe | 1 | Q235A,304,316etc. |
| 5 | stud | n | Q235A,35#,304,316etc. |
| 6 | nut | Tn | Q235A,20#,304,316etc. |
Technological process
The dismanting joint is suitable for pipelines with flanges on both sides. When installing,
the installation length of both ends of the product and flanges can be adjusted. The
diagonal fund-raising can tighten the bolt of the pressure cap evenly, making it
an integral whole with a certain displacement. It is convenient to install and repair,
and it can be adjusted according to the size of the site.
