Product Details
Place of Origin: Henan, China
Brand Name: ZHICHENG
Model Number: C2F
Payment & Shipping Terms
Price: $35.60/sets 1-99 sets
Packaging Details: Steel flange expansion dismantling joint pipe fitting mould is packed in a bubble bag, put in a cardboard box, and finally packed in a wooden box.
Supply Ability: 10000 Set/Sets per Month
Warranty: |
1 Year |
Customized Support: |
ODM, OEM |
Technics: |
Casting Forging |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Nominal Size: |
DN25 - DN3000mm |
Working Pressure: |
From Pn10 To Pn25 |
Flange Drilling: |
DIN, ANSI, BS, ISO, JIS,EN 1092 |
Material Of Flange: |
Galvanized Carbon Steel ,Stainless Steel 304,316 Etc. |
Drawing: |
Offer |
Applicable Media: |
Water |
Export Countries: |
Canada, America, Australia, Chile, Malaysia, Philippine Etc |
Product Certificate: |
ISO9001, WRAS |
Brand: |
Runtaida |
Product Name: |
Flange Connection Disassembly Joint Expansion Joint |
Port: |
Qingdao Port Or Negotiable |
Warranty: |
1 Year |
Customized Support: |
ODM, OEM |
Technics: |
Casting Forging |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Nominal Size: |
DN25 - DN3000mm |
Working Pressure: |
From Pn10 To Pn25 |
Flange Drilling: |
DIN, ANSI, BS, ISO, JIS,EN 1092 |
Material Of Flange: |
Galvanized Carbon Steel ,Stainless Steel 304,316 Etc. |
Drawing: |
Offer |
Applicable Media: |
Water |
Export Countries: |
Canada, America, Australia, Chile, Malaysia, Philippine Etc |
Product Certificate: |
ISO9001, WRAS |
Brand: |
Runtaida |
Product Name: |
Flange Connection Disassembly Joint Expansion Joint |
Port: |
Qingdao Port Or Negotiable |

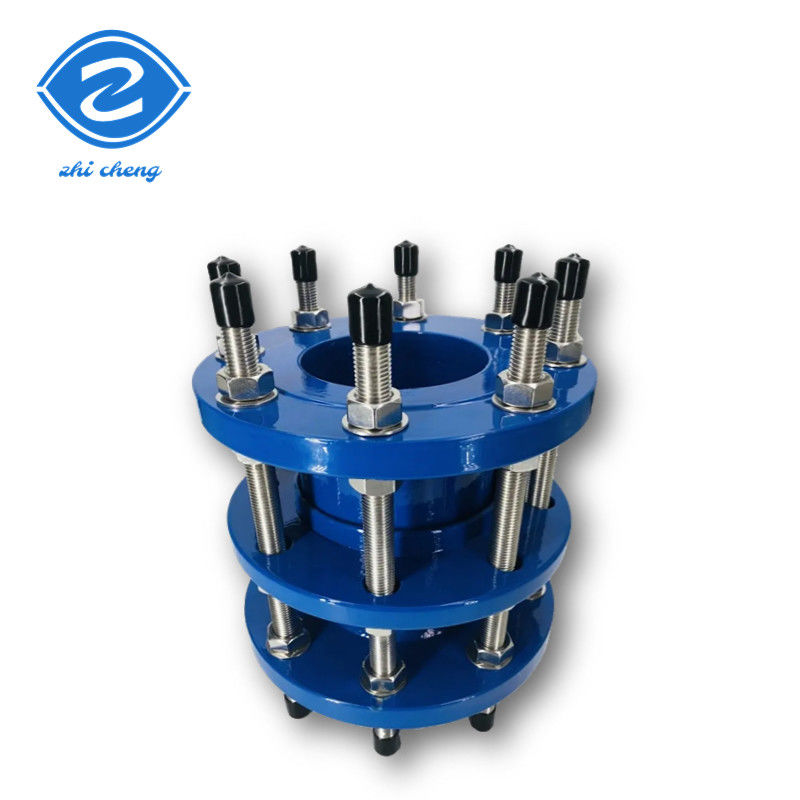

The force transmission joint, also known as an expansion joint, compensator, expander, and
telescopic joint, can be divided into2F type double flange force transmission joint, CF type
single flange force transmission joint, and CC2F type detachable force transmission joint.
It is of a main body, sealing ring, pressure cover, telescopic short pipe, and other main parts.
It is a new product for connecting pumps, valves, and equipment to pipelines. By connecting
them with all bolts, it becomes a whole and has a certain displacement, which allows for
adjustment according to the installation size on during installation and maintenance. In operation,
it can transmit axial thrust to the entire pipeline. This not only improves work efficiency but also
provides some protection for pumps,, and other equipment.
|
No.
|
Name
|
Quantity
|
Material
|
| 1 | Valve | 1 | QT450-10,Q235A,304,316etc. |
| 2 | Gasket | 1 | NBR |
| 3 | Follower | 1 | QT450-10,Q235A,304,316etc. |
| 4 | limited short pipe | 1 | Q235A,304,316etc. |
| 5 | stud | n | Q235A,35#,304,316etc. |
| 6 | nut | Tn | Q235A,20#,304,316etc. |
