Product Details
Place of Origin: Henan, China
Brand Name: ZHICHENG
Model Number: ZCF
Payment & Shipping Terms
Price: $90.00/sets 1-99 sets
Packaging Details: Inner: plastic film, then put into carton case.
Outer: safe firmed export plywood case, marking on carton case and wooden case can be customized, or packing as per your requests.
Supply Ability: 20000 Set/Sets per Day
Warranty: |
1year |
Customized Support: |
ODM, OEM, OEM, ODM |
Technics: |
Forged/vulcanization |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Material: |
EPDM/NBR/NR/FKM Etc |
Product Name: |
Rubber Expansion Joint |
Application: |
Air,water,sewage,acid,oil,etc. |
Working Temperature:: |
-15℃-80℃(-30℃-150℃) |
Flange Material: |
Carbon Steel Galvanized,Stainless Steel Etc. |
Flange Standard: |
DIN,ANSI,JIS Etc. |
Explosion Pressure: |
3 Times Of Working Pressure |
Certificate: |
ISO9001, TUV, WRAS, CO, MTC, PL, IV Etc |
Working Pressure: |
6-40bars(PN6-PN40) |
Port: |
Tianjin/Shanghai/Qingdao/Ningbo |
Warranty: |
1year |
Customized Support: |
ODM, OEM, OEM, ODM |
Technics: |
Forged/vulcanization |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Material: |
EPDM/NBR/NR/FKM Etc |
Product Name: |
Rubber Expansion Joint |
Application: |
Air,water,sewage,acid,oil,etc. |
Working Temperature:: |
-15℃-80℃(-30℃-150℃) |
Flange Material: |
Carbon Steel Galvanized,Stainless Steel Etc. |
Flange Standard: |
DIN,ANSI,JIS Etc. |
Explosion Pressure: |
3 Times Of Working Pressure |
Certificate: |
ISO9001, TUV, WRAS, CO, MTC, PL, IV Etc |
Working Pressure: |
6-40bars(PN6-PN40) |
Port: |
Tianjin/Shanghai/Qingdao/Ningbo |

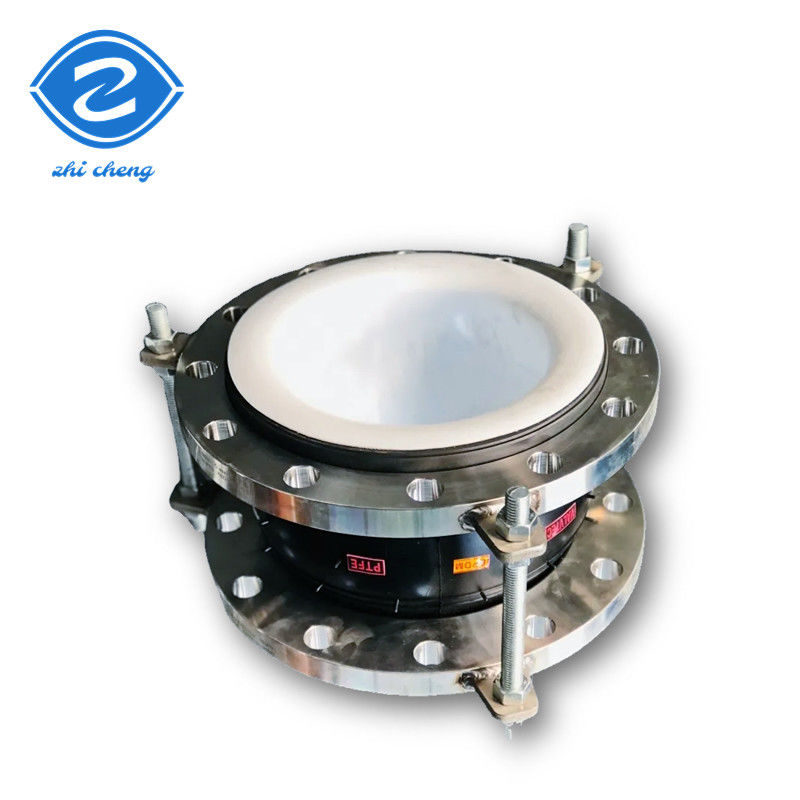

WRAS Approved Ss304 Chemical Pipeline Flexible Ptfe Rubber Expansion Joint for Industrial
|
No.
|
Name
|
Material
|
|
1
|
Flange
|
SS304
|
|
2
|
Pressurized ring
|
Steel wire strand
|
|
3
|
Lined
|
PTFE
|
|
4
|
Outer/inner rubber
|
NR/NBR/EPDM
|
|
5
|
Frame
|
Nylon cord fabric
|
|
Model
|
Ⅰ
|
Ⅱ
|
Ⅲ
|
||
|
Working pressure(Kg f/cm²)
|
1.0(10)
|
1.6(16)
|
2.5(25)
|
||
|
Explosion pressure(Kg f/cm²)
|
2.0(20)
|
3.0(30)
|
4.5(45)
|
||
|
Vacuum(mmHg)
|
53.3(400)
|
53.3(400)
|
53.3(400)
|
||
|
Applicable Temperature
|
-15℃ - +80℃ (the special can reach -30℃ - +150℃)
|
|
|
||
|
|
Air, Water, Oil, Weak Acid and Alkali etc.
|
|
|
||
