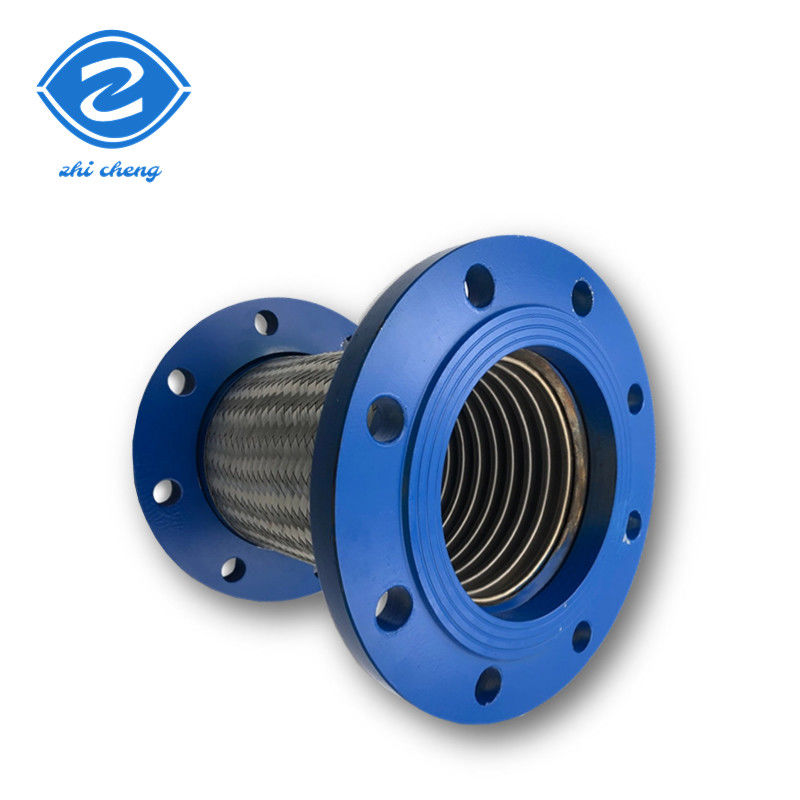

1 2 Inch Stainless Steel Braided Hose Garden Flanged PTFE Lined Pump Valve Pipe Connection

Name: 1 2 Inch Stainless Steel Braided Hose Garden Flanged PTFE Lined Pump Valve Pipe Connection
Brand: ZHICHENG
SKU: ZCB-1
Price: 43.20 USD
Availability: InStock
Rating: 4.9 (127 reviews)

Product Details

Place of Origin: Henan, China

Brand Name: ZHICHENG

Model Number: ZCB-1

Payment & Shipping Terms

Minimum Order Quantity: 15 bushels

Price: $43.20/bushels 15-98 bushels

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    1 2 inch stainless steel garden hose, 1 2 inch stainless steel braided hose, 1 2 inch stainless steel braided hose


Warranty:	1years	Customized Support:	OEM, ODM
Technics:	Casting	Connection:	Flange
Shape:	Equal	Head Code:	Round
Working Pressure::	PN10-PN40	Flange Standard::	DIN, ANSI, BS, ISO, JIS, EN 1092
Operating Temperature::	-10℃-+300℃	Flange Material::	Stainless Steel, Carbon Steel, Etc
Application::	Air, Water, Oil, Steam, Etc.	Package::	Wooden Case Packing
Product Name::	Pipepline Flexible Expansion Joint Metal Corrugated Bello	Certificate::	ISO 9001:2008
Drawing::	Offer	Nominal Size::	DN32 - DN3000mm

Warranty:	1years
Customized Support:	OEM, ODM
Technics:	Casting
Connection:	Flange
Shape:	Equal
Head Code:	Round
Working Pressure::	PN10-PN40
Flange Standard::	DIN, ANSI, BS, ISO, JIS, EN 1092
Operating Temperature::	-10℃-+300℃
Flange Material::	Stainless Steel, Carbon Steel, Etc
Application::	Air, Water, Oil, Steam, Etc.
Package::	Wooden Case Packing
Product Name::	Pipepline Flexible Expansion Joint Metal Corrugated Bello
Certificate::	ISO 9001:2008
Drawing::	Offer
Nominal Size::	DN32 - DN3000mm

Description

1 2 Inch Stainless Steel Braided Hose Garden Flanged PTFE Lined Pump Valve Pipe Connection

304 Stainless Steel Flanged PTFE Lined Pump And Valve Pipe Connection Hose for Pumping

Video description

Details Images

Fanged braided flexible hose is an important connecting component in engineering technology, which is composed of corrugated flexible pipe, net sleeve and joint. As compensation element, sealing element, connecting element and shock absorber in various gas and liquid pipeline systems and length, temperature, position and angle compensation systems, it is applied in aerospace, petrochemical industry, mine electronics, mechanical shipbuilding, textile electronics, energy construction and other fields.

The structure of Stainless Steel Flexible Metal Hose Our stainless steel metal hose is a kind of high quality flexible element in today’s industry , it is made up of stainless steel ripple hose consisting of outer braided layer, one or more multilayer wire or steel belt net, with joints or flanges at both ends.

Product Paramenters

Data above is only for reference.If you want to know more details of our products,pls click here to contact us!

Metal flexible hose is a kind of flexible pipe with high quality in modern industrial pipeline.The inner tube of metal bellows hose is spiral or annular thin-wall stainless steel bellows, the outer braid mesh of bellow pipe(corrugated pipe) is made of stainless steel wire and steel belt according to certain parameters,the joints or flanges on both ends of the hose are matched to the joint or flange of the customer's pipe.
Character of metal flexible hose:
1. Good softness, anti-fatigue
2. High pressure resistant, high and low temperature resistant, corrosion resistant
3. The service life of metal hose is much higher
4. High comprehensive economical benefits.Wtih the development of modern industry, the demand for hig pressure resistance and high temperature resistant bellows metal hose (corrugated metal hose) is also increasing.

Manufacturing Technique

1.Cutting stainless steel plate.

2.Rolling and welding stainless steel plate into pipe.

3.Extruded pipe into bellow.

4.Welding bellow with other parts into expansion joint as per drawing.

Grinding and polishing

6.Hydro test inspecting.

Related products

Application Scenarios

Certifications

Product packaging

Inner: plastic film packing.
Outer: export wooden cases.

Why choose the Stainless Steel Flexible Metal Hose from ZHI CHENG ?
1.24 hours online service-- Anytime,anywhere can provide what you want
2.100% quality inspection Before Shippment
3.Reasonable and competitive price
4.Best production capability ,best quality control, best Service .

Henan Province Zhi cheng Valve & Fittings Manufacturing Co., Ltd, established in 1985, is located in Xicun Town Pipeline Industrial Park, Gongyi City, China, covering an area of 20,000 square meters. The production equipment is complete, with a monthly output of 10,000 pieces. Main products: rubber expansion joints, bellows expansion joints, metal hoses, disassembly joints, flange adapters, bellows, etc.

FAQ

Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement
Q: What are your payment terms?
A: T/T (30% as desposit, the rest 70% will be paid before delivery), L/C at sight
Q: Can I visit your factory before the order?
A: Yes, welcome to our factory to check the quality
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned or according to consumer's requests
Q: Do you accept small quantity order?
A: Of course we do.
Q: Can we choose different material?
A: Yes, the material can be chose according to your requirement.
Q: And what is your shipment and delivery time?
A: By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
Q: And what's your packing?
A: carton cases inside, export wooden cases outside.
