Product Details
Place of Origin: Henan, China
Brand Name: ZHICHENG
Model Number: C2F
Payment & Shipping Terms
Price: $35.60/sets 1-99 sets
Packaging Details: Wrapped in bubble wrap, placed in a cardboard box and finally packed in a wooden crate.
Supply Ability: 10000 Set/Sets per Month
Warranty: |
1 Year |
Customized Support: |
ODM, OEM |
Technics: |
Casting Forging |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Warranty:: |
1 YEAR |
Model Number:: |
SSJB(AY) |
Working Pressure:: |
From Pn10 To Pn16 |
Color:: |
Blue |
Technics:: |
Casting Forging |
Medium:: |
Water |
Nominal Size:: |
DN40- DN600mm |
Drawing:: |
Offer |
Product Certificate:: |
ISO9001, WRAS |
Material Of Body:: |
Cast Iron,carbon Steel,stainless Steel |
Port: |
Qingdao Port Or Negotiable |
Warranty: |
1 Year |
Customized Support: |
ODM, OEM |
Technics: |
Casting Forging |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Warranty:: |
1 YEAR |
Model Number:: |
SSJB(AY) |
Working Pressure:: |
From Pn10 To Pn16 |
Color:: |
Blue |
Technics:: |
Casting Forging |
Medium:: |
Water |
Nominal Size:: |
DN40- DN600mm |
Drawing:: |
Offer |
Product Certificate:: |
ISO9001, WRAS |
Material Of Body:: |
Cast Iron,carbon Steel,stainless Steel |
Port: |
Qingdao Port Or Negotiable |

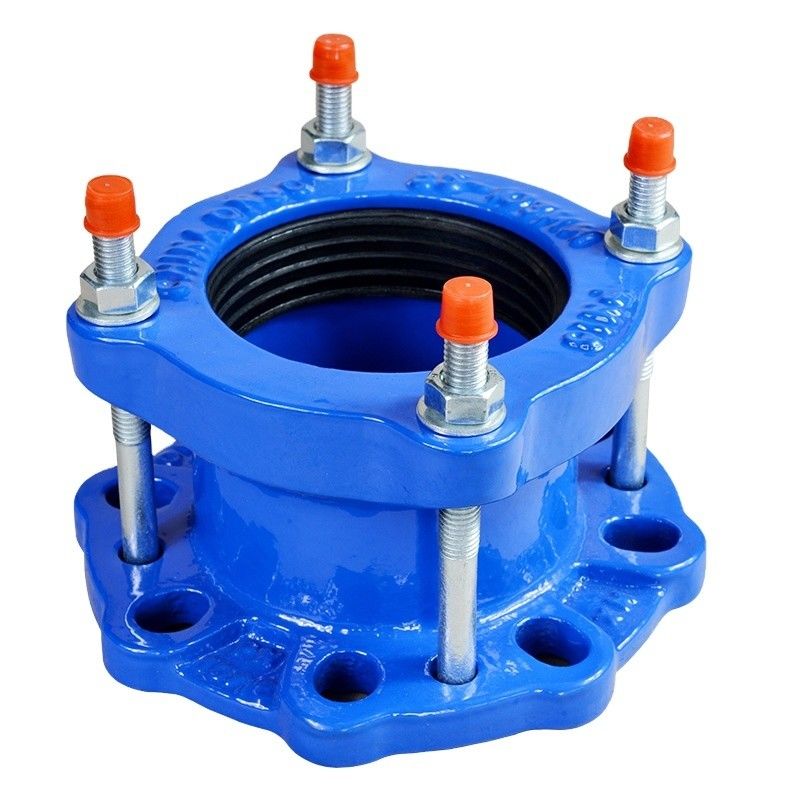

Working Pressure Ductile Iron And Hdpe Flange Adapters For Upvc Pipe Connections
Structure and material of dresser coupling
|
|
|
|
|||
TIME
|
DESCRIPTION
|
MATERIAL
|
QUANTITY
|
|||
1
|
END RING
|
GJS500-7
|
1
|
|||
2
|
GASKET
|
EPDM
|
1
|
|||
3
|
BOLT
|
GD 4.8
|
N
|
|||
4
|
BODY
|
GJS500-7
|
1
|
|||
5
|
PLASTIC CAP
|
PLASTIC
|
N
|
Main connecting dimension of carbon steel pipe flange adapter
|
|
|
|
|
|
|||||
DN
|
RANGE(MM)
|
L(MM)
|
D(MM)
|
BOLT
|
|
|||||
|
|
|
|
SIZE
|
QTY
|
|||||
50
|
59-72
|
75
|
165
|
M12*130
|
2
|
|||||
65
|
72-85
|
75
|
185
|
M12*130
|
2
|
|||||
80
|
88-103
|
76
|
185
|
M12*130
|
4
|
|||||
100
|
93-117
|
78
|
218
|
M12*130
|
4
|
|||||
125
|
125-140
|
78
|
250
|
M12*130
|
4
|
|||||
150
|
155-175
|
80
|
272
|
M12*130
|
4
|
|||||
200
|
218-235
|
85
|
335
|
M12*130
|
4
|
|||||
250
|
265-280
|
90
|
405
|
M12*130
|
6
|
|||||
300
|
315-332
|
90
|
460
|
M12*130
|
6
|
|||||
350
|
351-368
|
110
|
510
|
M16*180
|
8
|
|||||
400
|
400-429
|
110
|
580
|
M16*180
|
8
|
|||||
450
|
455-472
|
115
|
640
|
M16*180
|
10
|
|||||
500
|
500-532
|
120
|
690
|
M16*180
|
10
|
|||||
600
|
600-630
|
130
|
820
|
M16*180
|
10
|
