ODM Connection Pumps Couplings with Zinc-Plated Flanges and Rubber Expansion Joints

Name: ODM Connection Pumps Couplings with Zinc-Plated Flanges and Rubber Expansion Joints
Brand: ZHICHENG
SKU: ZCF
Price: 90.00 USD
Availability: InStock
Rating: 4.6 (172 reviews)

Product Details

Place of Origin: Henan, China

Brand Name: ZHICHENG

Model Number: ZCF

Payment & Shipping Terms

Price: $90.00/sets 1-99 sets

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Warranty:	1year	Customized Support:	ODM, OEM, OEM, ODM
Technics:	Forged/vulcanization	Connection:	Flange
Shape:	Equal	Head Code:	Round
Material:	EPDM/NBR/NR/FKM Etc	Product Name:	Rubber Expansion Joint
Application:	Air,water,sewage,acid,oil,etc.	Working Temperature::	-15℃-80℃(-30℃-150℃)
Flange Material:	Carbon Steel Galvanized,Stainless Steel Etc.	Flange Standard:	DIN,ANSI,JIS Etc.
Explosion Pressure:	3 Times Of Working Pressure	Certificate:	ISO9001, TUV, WRAS, CO, MTC, PL, IV Etc
Working Pressure:	6-40bars(PN6-PN40)

Warranty:	1year
Customized Support:	ODM, OEM, OEM, ODM
Technics:	Forged/vulcanization
Connection:	Flange
Shape:	Equal
Head Code:	Round
Material:	EPDM/NBR/NR/FKM Etc
Product Name:	Rubber Expansion Joint
Application:	Air,water,sewage,acid,oil,etc.
Working Temperature::	-15℃-80℃(-30℃-150℃)
Flange Material:	Carbon Steel Galvanized,Stainless Steel Etc.
Flange Standard:	DIN,ANSI,JIS Etc.
Explosion Pressure:	3 Times Of Working Pressure
Certificate:	ISO9001, TUV, WRAS, CO, MTC, PL, IV Etc
Working Pressure:	6-40bars(PN6-PN40)

Description

ODM Connection Pumps Couplings with Zinc-Plated Flanges and Rubber Expansion Joints

Product Description

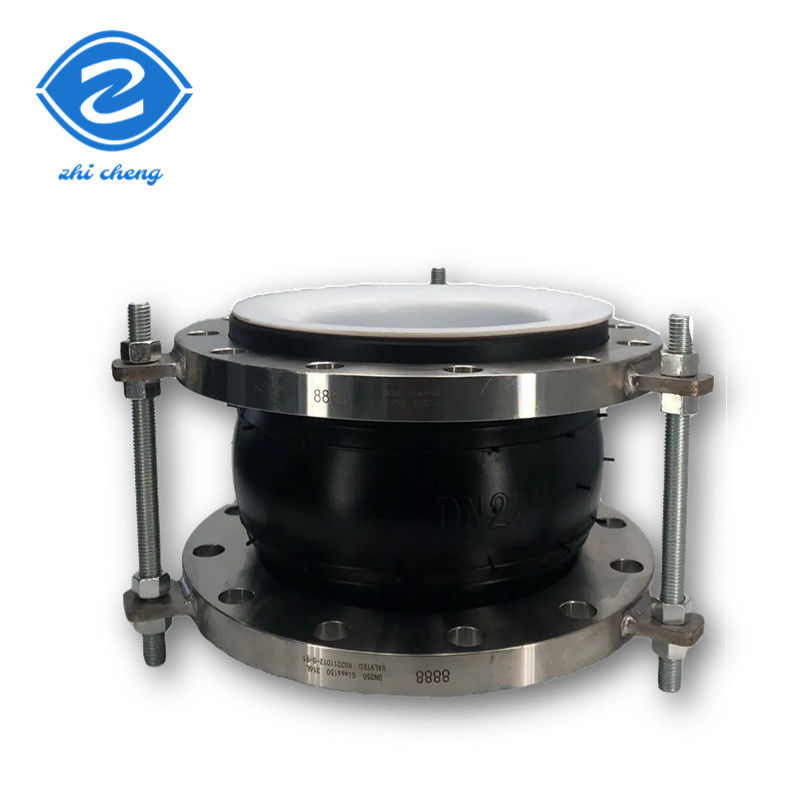

Corrosion resistant SS304 flange flexible chemical piping PTFE rubber expansion joint

Rubber soft joints, also known as rubber flexible joints, soft joints, shock absorbers, pipe shock absorbers, shock absorber
throats, etc.It is a high Flexible, highly airtight, medium resistant and weatherproof pipe joints.It has the characteristics of
vibration reduction, high temperature resistance, flexibility and friction resistance. It is suitable for the connection of
pipeline dislocation difference, displacement, size change and vibration parts.
PTFE lined joint is based on the original conventional rubber joint, adding PTFE coating lining inside, which can effectively
protect the rubber joint from corrosion and medium erosion. For example, strong acid, strong alkali or high-temperature oil, PTFE
coating can effectively adhere to the inner wall of the pipeline, prevent the separation caused by medium erosion or pipeline
tensile contraction, so that the original mechanical and physical properties of flexible rubber joint are not affected, and can
still compensate for pipeline vibration, absorb pipeline displacement and reduce pipeline noise.

Product Paramenters

Material of all parts

No.	Name	Material
1	Flange	SS304
2	Pressurized ring	Steel wire strand
3	Lined	PTFE
4	Outer/inner rubber	NR/NBR/EPDM
5	Frame	Nylon cord fabric

Material of all parts

Model	Ⅰ	Ⅱ	Ⅲ
Working pressure(Kg f/cm²)	1.0(10)	1.6(16)	2.5(25)
Explosion pressure(Kg f/cm²)	2.0(20)	3.0(30)	4.5(45)
Vacuum(mmHg)	53.3(400)	53.3(400)	53.3(400)
Applicable Temperature	-15℃ - +80℃ (the special can reach -30℃ - +150℃)
	Air, Water, Oil, Weak Acid and Alkali etc.

The above data is for reference only. If you want to know more about product details or parameters, please click here to consult us
Features of rubber expansion joint:
1). Small volume, light weight, good elasticity, easy installation and maintenance.
2). Transverse, axial and angular displacements may occur during installation, which are not restricted by the pipeline not
concentric and the flange not parallel.
3). When working, it can reduce the transmission noise and strong vibration absorption ability.
Advantage of PTFE lined rubber expansion joint:
The PTFE lined rubber expansion joint has excellent chemical stability and corrosion resistance. It is one of the best corrosion
resistant materials today. Except for molten metal sodium and liquid fluorine, it can resist all kinds of chemicals. It can not
change when boiling in aqua regia. It is widely used in all kinds of acid-base and organic solvent resistant.

Rubber expansion joint series products:
single sphere rubber expansion joint, double ball rubber expansion joint, concentric diameter rubber expansion joint, reducer
rubber expansion joint, food grade rubber expansion joint, threaded connection rubber expansion joint.

Packing & Delivery

Packing: Inner plastic film packing, outer
standard export wooden case packing.

Shipping: Courier company transport, air freight and sea transport. It depends on your actual order details and quantity.

FAQ

Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement
Q: What are your payment terms?
A: T/T (30% as despot, the rest 70% will be paid before delivery), L/C at sight
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.
Q: How can you guarantee the quality or any warranty?
A: Check the specification, material and appearance before delivery, and approve the delivery after qualified
B: Support third-party inspection
Q: Do you accept small quantity order?
A: Of course we do.
Q: Can we choose different material.
A: Yes, the material can be chose according to your requirement.
Q: what is your shipment and delivery time?
A: By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
