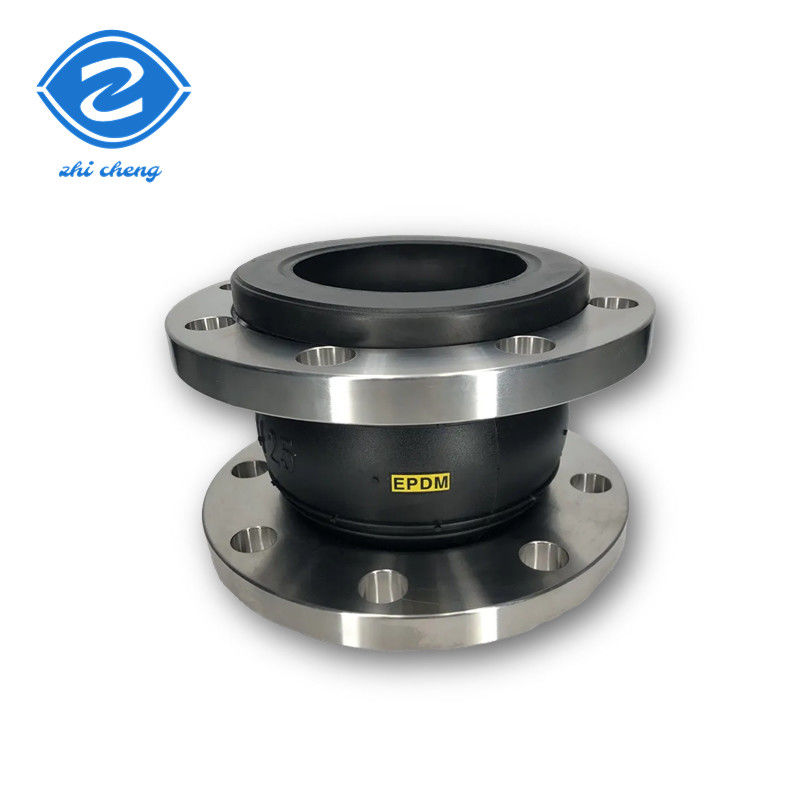

Dn200 Pn16 Oil Resistant Hydraulic System Rubber Shock Absorber Bellows Compensator

Name: Dn200 Pn16 Oil Resistant Hydraulic System Rubber Shock Absorber Bellows Compensator
Brand: ZHICHENG
SKU: ZCF
Price: 13.20 USD
Availability: InStock
Rating: 4.9 (175 reviews)

Product Details

Place of Origin: Henan, China

Brand Name: ZHICHENG

Certification: ISO

Model Number: ZCF

Payment & Shipping Terms

Price: $13.20/sets 1-99 sets

Packaging Details: Inner: plastic film, then put into carton case.
Outer: safe firmed export plywood case, marking on carton case and wooden case can be customized, or packing as per your requests.

Supply Ability: 15000 Set/Sets per Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Warranty:	1year	Customized Support:	ODM, OEM
Technics:	Forged/vulcanization	Connection:	Flange
Shape:	Equal	Head Code:	Round
Product Name:	Hot Selling Single Sphere Rubber Expansion Joint	Working Pressure:	PN6-PN40
Working Temperature:	-15℃-80℃(in Special -30℃-150℃)	Applicable Media:	Air,water,sewage,acid,oil,etc.
Nominal Diameter:	DN25-DN3000	Flange Material:	Carbon Steel Galvanized,Stainless Steel Etc.
Rubber Material:	NR,EPDM,NBR Etc.	Flange Standard:	DIN,ANSI,JIS Etc.
Factory Address:	Henan, China	Port:	Qingdao, Tianjin, Dalian, Shanghai, Ningbo, Guangzhou, Yiwu, Etc.

Warranty:	1year
Customized Support:	ODM, OEM
Technics:	Forged/vulcanization
Connection:	Flange
Shape:	Equal
Head Code:	Round
Product Name:	Hot Selling Single Sphere Rubber Expansion Joint
Working Pressure:	PN6-PN40
Working Temperature:	-15℃-80℃(in Special -30℃-150℃)
Applicable Media:	Air,water,sewage,acid,oil,etc.
Nominal Diameter:	DN25-DN3000
Flange Material:	Carbon Steel Galvanized,Stainless Steel Etc.
Rubber Material:	NR,EPDM,NBR Etc.
Flange Standard:	DIN,ANSI,JIS Etc.
Factory Address:	Henan, China
Port:	Qingdao, Tianjin, Dalian, Shanghai, Ningbo, Guangzhou, Yiwu, Etc.

Description

Dn200 Pn16 Oil Resistant Hydraulic System Rubber Shock Absorber Bellows Compensator

Company Profile

Henan Province Zhicheng Valve & Fittings Manufacturing Co.
Our mission: on product details, improve innovation, and meet user needs.
Our value: integrity and standardization, cooperation and win-win
Main products: rubber expansion joints, bellows expansion joints, metal hoses, double flange disassembly joints, flange adapters ，fabric expansion joints, bellows

Product Description

Pump And Valve Connectors Tubular Waterproof Joints Flange Type Flexible Epdm Expansion Joints

Specification

Material of rubber joint
No.	Name	Material
1	Outer/inner rubber	NR, NBR, EPDM, SBR, BR etc.
2	Frame	Nylon card fabric
3	Pressurized ring	Steel wire strand
4	Flange	Q235 carbon steel, 304 stainless steel etc.

Technical conditions of rubber joint
Type	1	2	3
Working pressure(Kg f/cm2)	1.0(10)	1.6(16)	2.5(25)
Explosion pressure(Kg f/cm2)	2.0(20)	3.0(30)	4.5(45)
Vacuum value(mmHg)	2.0(20)	86.7(650)	100(750)
Applicable temperature	-15℃ ~ +80 ℃ (-30℃~+150℃ special)
Applicable media	Air,compressed air,water,sea water,hot water,oil,acid and alkali etc

Main connecting dimension of rubber joint
Nominal diameter(DN)			Length	Axial displacement			Horizontal displacement	Deflexion angle
mm	inch	Extension(mm)	Compression(mm)	mm	mm	(a1+a2)°
32	1 and 1/4	95	6	9	9	15°
40	1 and 1/2	95	6	10	9	15°
50	2	105	7	10	10	15°
65	2 and 1/2	115	7	13	11	15°
80	3	135	8	15	12	15°
100	4	150	10	19	13	15°
125	5	165	12	19	13	15°
150	6	180	12	20	14	15°
200	8	210	16	25	22	15°
250	10	230	16	25	22	15°
300	12	245	16	25	22	15°
350	14	255	16	25	22	15°
400	16	255	16	25	22	15°
450	18	255	16	25	22	15°
500	20	255	16	25	22	15°
600	24	260	16	25	22	15°
700	28	260	16	25	22	15°
800	32	260	16	25	22	15°
900	36	260	16	25	22	15°
1000	40	260	18	26	24	15°
1200	48	260	18	26	24	15°
1400	56	350	20	28	26	15°
1600	64	350	25	35	30	10°
1800	72	350	25	35	30	10°
2000	80	420	25	35	30	10°
2200	88	420	25	35	30	10°
2400	96	420	25	35	30	10°
2600	104	450	25	35	30	10°
2800	112	450	25	35	30	10°
3000	120	500	25	35	30	10°

For offering you a qucik quotation,pls tell us

1.Which kind of media do you want to flow through the rubber expansion joint, water , oil or anything else ?

2.What's the nomial diameter of rubber expansion joint ?

3.What's the type of rubber expansion joint, equal or reducing shape ?

4.What's the material of rubber and flange, EPDM and stainless steel ?

5.What's the standard of flange, ANSI, DIN or anything else ?
6.What's the nominal pressure,150lb or 300lb ?

7.What's the length of rubber sphere?8.How many pieces of rubber expansion joints do you need in total ?

Advantage of rubber expansion joint:

1.It excels in pressure resistance by the combination of spherical structure with super stability against internal pressure and
strong special reinforcing .
2.Superior absorption of vibration-noise-shock
3.Compensate greater elongation, compression , lateral and angular movement

Classification of rubber joint

Concentric reducers

end face fully sealed

Food grade fluoroelastomer

hand made

Handmade double spheres

With limit puller

limit rodsPTFElinner

union type

Counterclamp type

Packing & Delivery

Shipping:
1.FedEx/DHL/UPS/TNT for sample. Door-to-Door
2.By Air or By Sea for batch goods for LCL/FCL;Airport /Port receiving
3.Customers specified freight forworders or negotiable shipping methods!

Delivery Time :
a.in stock:immediately b.sample:about 3 days c.OEM/ODM:about 15 DAYS

FAQ

Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement.

Q: What are your payment terms?
A: T/T (30% as desposit, the rest 70% will be paid before delivery), L/C at sight.

Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.

Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned or according to consumer's requests.

Q: Do you accept small quantity order?
A: Of course we do.

Q: And what is your shipment and delivery time?
A: By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity. Pls send your detailed needs in the below and get a quick reply!
