Product Name: |
Hot Selling Single Sphere Rubber Expansion Joint |
Working Pressure: |
PN6-PN40 |
Working Temperature: |
-15℃-80℃(in Special -30℃-150℃) |
Applicable Media: |
Air,water,sewage,acid,oil,etc. |
Nominal Diameter: |
DN25-DN3000 |
Flange Material: |
Carbon Steel Galvanized,Stainless Steel Etc. |
Rubber Material: |
NR,EPDM,NBR Etc. |
Flange Standard: |
DIN,ANSI,JIS Etc. |
Factory Address: |
Henan, China |
Warranty: |
1year |
Customized Support: |
ODM, OEM |
Technics: |
Forged/vulcanization |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Product Name: |
Hot Selling Single Sphere Rubber Expansion Joint |
Working Pressure: |
PN6-PN40 |
Working Temperature: |
-15℃-80℃(in Special -30℃-150℃) |
Applicable Media: |
Air,water,sewage,acid,oil,etc. |
Nominal Diameter: |
DN25-DN3000 |
Flange Material: |
Carbon Steel Galvanized,Stainless Steel Etc. |
Rubber Material: |
NR,EPDM,NBR Etc. |
Flange Standard: |
DIN,ANSI,JIS Etc. |
Factory Address: |
Henan, China |

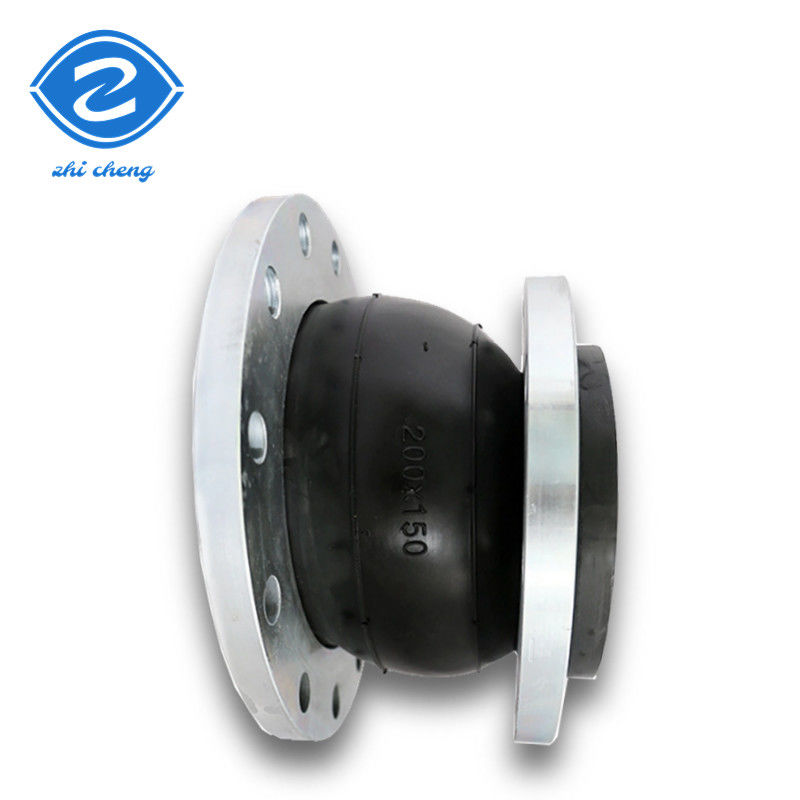

Carbon Steel Galvanized Flange Connector Single Sphere Flexible Rubber Expansion Joint
|
Material of rubber joint
|
|
|
||
|
No.
|
Name
|
Material
|
||
|
1
|
Outer/inner rubber
|
NR, NBR, EPDM, SBR, BR etc.
|
||
|
2
|
Frame
|
Nylon card fabric
|
||
|
3
|
Pressurized ring
|
Steel wire strand
|
||
|
4
|
Flange
|
Q235 carbon steel, 304 stainless steel etc.
|
||
|
Technical conditions of rubber joint
|
|
|
|
|||
|
Type
|
1
|
2
|
3
|
|||
|
Working pressure(Kg f/cm2)
|
1.0(10)
|
1.6(16)
|
2.5(25)
|
|||
|
Explosion pressure(Kg f/cm2)
|
2.0(20)
|
3.0(30)
|
4.5(45)
|
|||
|
Vacuum value(mmHg)
|
2.0(20)
|
86.7(650)
|
100(750)
|
|||
|
Applicable temperature
|
-15℃ ~ +80 ℃ (-30℃~+150℃ special)
|
|
|
|||
|
Applicable media
|
Air,compressed air,water,sea water,hot water,oil,acid and alkali etc
|
|
|
|||
|
Main connecting dimension of rubber joint
|
|
|
|
|
|
|
||||||
|
Nominal diameter(DN)
|
|
Length
|
Axial displacement
|
|
Horizontal displacement
|
Deflexion angle
|
||||||
|
mm
|
inch
|
Extension(mm)
|
Compression(mm)
|
mm
|
mm
|
(a1+a2)°
|
||||||
|
32
|
1 and 1/4
|
95
|
6
|
9
|
9
|
15°
|
||||||
|
40
|
1 and 1/2
|
95
|
6
|
10
|
9
|
15°
|
||||||
|
50
|
2
|
105
|
7
|
10
|
10
|
15°
|
||||||
|
65
|
2 and 1/2
|
115
|
7
|
13
|
11
|
15°
|
||||||
|
80
|
3
|
135
|
8
|
15
|
12
|
15°
|
||||||
|
100
|
4
|
150
|
10
|
19
|
13
|
15°
|
||||||
|
125
|
5
|
165
|
12
|
19
|
13
|
15°
|
||||||
|
150
|
6
|
180
|
12
|
20
|
14
|
15°
|
||||||
|
200
|
8
|
210
|
16
|
25
|
22
|
15°
|
||||||
|
250
|
10
|
230
|
16
|
25
|
22
|
15°
|
||||||
|
300
|
12
|
245
|
16
|
25
|
22
|
15°
|
||||||
|
350
|
14
|
255
|
16
|
25
|
22
|
15°
|
||||||
|
400
|
16
|
255
|
16
|
25
|
22
|
15°
|
||||||
|
450
|
18
|
255
|
16
|
25
|
22
|
15°
|
||||||
|
500
|
20
|
255
|
16
|
25
|
22
|
15°
|
||||||
|
600
|
24
|
260
|
16
|
25
|
22
|
15°
|
||||||
|
700
|
28
|
260
|
16
|
25
|
22
|
15°
|
||||||
|
800
|
32
|
260
|
16
|
25
|
22
|
15°
|
||||||
|
900
|
36
|
260
|
16
|
25
|
22
|
15°
|
||||||
|
1000
|
40
|
260
|
18
|
26
|
24
|
15°
|
||||||
|
1200
|
48
|
260
|
18
|
26
|
24
|
15°
|
||||||
|
1400
|
56
|
350
|
20
|
28
|
26
|
15°
|
||||||
|
1600
|
64
|
350
|
25
|
35
|
30
|
10°
|
||||||
|
1800
|
72
|
350
|
25
|
35
|
30
|
10°
|
||||||
|
2000
|
80
|
420
|
25
|
35
|
30
|
10°
|
||||||
|
2200
|
88
|
420
|
25
|
35
|
30
|
10°
|
||||||
|
2400
|
96
|
420
|
25
|
35
|
30
|
10°
|
||||||
|
2600
|
104
|
450
|
25
|
35
|
30
|
10°
|
||||||
|
2800
|
112
|
450
|
25
|
35
|
30
|
10°
|
||||||
|
3000
|
120
|
500
|
25
|
35
|
30
|
10°
|
||||||
