Product Details
Place of Origin: Henan, China
Brand Name: ZHICHENG
Certification: ISO
Model Number: ZCF
Payment & Shipping Terms
Price: $13.20/sets 1-99 sets
Packaging Details: Inner: plastic film, then put into carton case.
Outer: safe firmed export plywood case, marking on carton case and wooden case can be customized, or packing as per your requests.
Supply Ability: 15000 Set/Sets per Month
Warranty: |
1year |
Customized Support: |
ODM, OEM |
Technics: |
Forged/vulcanization |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Product Name: |

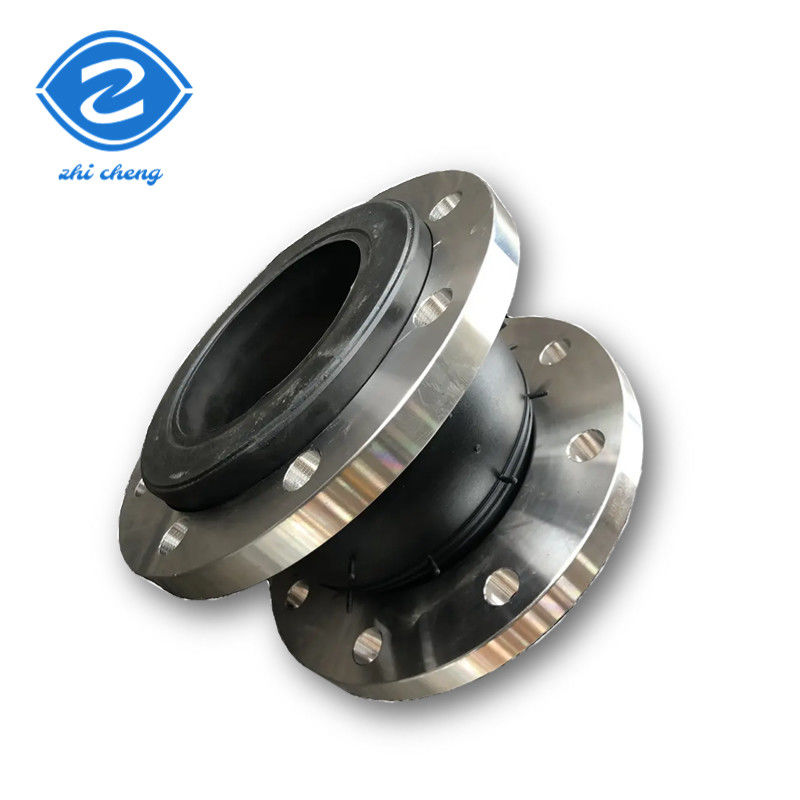

Hot Selling Single Sphere Rubber Expansion Joint |
Working Pressure: |
PN6-PN40 |
Working Temperature: |
-15℃-80℃(in Special -30℃-150℃) |
Applicable Media: |
Air,water,sewage,acid,oil,etc. |
Nominal Diameter: |
DN25-DN3000 |
Flange Material: |
Carbon Steel Galvanized,Stainless Steel Etc. |
Rubber Material: |
NR,EPDM,NBR Etc. |
Flange Standard: |
DIN,ANSI,JIS Etc. |
Factory Address: |
Henan, China |
Port: |
Qingdao, Tianjin, Dalian, Shanghai, Ningbo, Guangzhou, Yiwu, Etc. |
Warranty: |
1year |
Customized Support: |
ODM, OEM |
Technics: |
Forged/vulcanization |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Product Name: |
Hot Selling Single Sphere Rubber Expansion Joint |
Working Pressure: |
PN6-PN40 |
Working Temperature: |
-15℃-80℃(in Special -30℃-150℃) |
Applicable Media: |
Air,water,sewage,acid,oil,etc. |
Nominal Diameter: |
DN25-DN3000 |
Flange Material: |
Carbon Steel Galvanized,Stainless Steel Etc. |
Rubber Material: |
NR,EPDM,NBR Etc. |
Flange Standard: |
DIN,ANSI,JIS Etc. |
Factory Address: |
Henan, China |
Port: |
Qingdao, Tianjin, Dalian, Shanghai, Ningbo, Guangzhou, Yiwu, Etc. |
Material of rubber joint | ||||
No. | Name | Material | ||
1 | Outer/inner rubber | NR, NBR, EPDM, SBR, BR etc. | ||
2 | Size | DN25-DN3000 | ||
3 | Frame | Nylon card fabric | ||
3 | Pressurized ring | Steel wire strand | ||
5 | Flange | Q235 carbon steel, 304 stainless steel etc. | ||
Technical conditions of rubber joint | ||||||
Type | 1 | 2 | 3 | |||
Working pressure(Kg f/cm2) | 1.0(10) | 1.6(16) | 2.5(25) | |||
Explosion pressure(Kg f/cm2) | 2.0(20) | 3.0(30) | 4.5(45) | |||
Vacuum value(mmHg) | 2.0(20) | 86.7(650) | 100(750) | |||
Applicable temperature | -15℃ ~ +80 ℃ (-30℃~+150℃ special) | |||||
Applicable media | Air,compressed air,water,sea water,hot water,oil,acid and alkali etc | |||||
Main connecting dimension of rubber joint | ||||||||||||
Nominal diameter(DN) | Length | Axial displacement | Horizontal displacement | Deflexion angle | ||||||||
mm | inch | Extension(mm) | Compression(mm) | mm | mm | (a1+a2)° | ||||||
32 | 1 and 1/4 | 95 | 6 | 9 | 9 | 15° | ||||||
40 | 1 and 1/2 | 95 | 6 | 10 | 9 | 15° | ||||||
50 | 2 | 105 | 7 | 10 | 10 | 15° | ||||||
65 | 2 and 1/2 | 115 | 7 | 13 | 11 | 15° | ||||||
80 | 3 | 135 | 8 | 15 | 12 | 15° | ||||||
100 | 4 | 150 | 10 | 19 | 13 | 15° | ||||||
125 | 5 | 165 | 12 | 19 | 13 | 15° | ||||||
150 | 6 | 180 | 12 | 20 | 14 | 15° | ||||||
200 | 8 | 210 | 16 | 25 | 22 | 15° | ||||||
250 | 10 | 230 | 16 | 25 | 22 | 15° | ||||||
300 | 12 | 245 | 16 | 25 | 22 | 15° | ||||||
350 | 14 | 255 | 16 | 25 | 22 | 15° | ||||||
400 | 16 | 255 | 16 | 25 | 22 | 15° | ||||||
450 | 18 | 255 | 16 | 25 | 22 | 15° | ||||||
500 | 20 | 255 | 16 | 25 | 22 | 15° | ||||||
600 | 24 | 260 | 16 | 25 | 22 | 15° | ||||||
700 | 28 | 260 | 16 | 25 | 22 | 15° | ||||||
800 | 32 | 260 | 16 | 25 | 22 | 15° | ||||||
900 | 36 | 260 | 16 | 25 | 22 | 15° | ||||||
1000 | 40 | 260 | 18 | 26 | 24 | 15° | ||||||
1200 | 48 | 260 | 18 | 26 | 24 | 15° | ||||||
1400 | 56 | 350 | 20 | 28 | 26 | 15° | ||||||
1600 | 64 | 350 | 25 | 35 | 30 | 10° | ||||||
1800 | 72 | 350 | 25 | 35 | 30 | 10° | ||||||
2000 | 80 | 420 | 25 | 35 | 30 | 10° | ||||||
2200 | 88 | 420 | 25 | 35 | 30 | 10° | ||||||
2400 | 96 | 420 | 25 | 35 | 30 | 10° | ||||||
2600 | 104 | 450 | 25 | 35 | 30 | 10° | ||||||
2800 | 112 | 450 | 25 | 35 | 30 | 10° | ||||||
3000 | 120 | 500 | 25 | 35 | 30 | 10° | ||||||
