Product Details
Place of Origin: Henan, China
Brand Name: ZHICHENG
Certification: ISO9001,TUV,WRAS,CO,MTC,
Model Number: DN25-DN3000
Payment & Shipping Terms
Price: $105.00/bushels 1-999 bushels
Packaging Details: N10/PN16/PN25/PN40 Free samples HUAYUAN Double spherical rubber expansion joint/rubber flexible joint with metal flange Packing: inner packing is one carton/box (depending on the size), outer packing is wooden box (mixed packing or various sizes of wooden
Supply Ability: 9000 Bushel/Bushels per Month
Warranty: |
1 Years |
Customized Support: |
OEM, ODM, Bespoke Customised Signs (minimum Order Of 20 Set, Customised Packaging (minimum Order 500 Sets), Graphic Customisation (minimum Order Of 50 Sets) |
Technics: |
Forging/casting/vulcanization/galvanizing |
Connection: |
Flange |
Shape: |
Round |
Head Code: |
Equal |
Product Name: |
Rubber Expansion Joint |
Materials: |
EPDM/NBR/NR/IIR Etc. |
Flange Material: |
CS, SS304, SS316, Etc. |
Work Stress: |
6-40bars(PN6-PN40) |
Media: |
Air, Water, Sewage, Acid, Oil, Etc. |
Operating Temperature: |
-15~+80℃ (Special: -30~+150℃) |
Pressure: |
2 Times The Working Pressure |
Standard: |
JIS, DIN, ANSI, ASME, Etc. |
Port: |
Qingdao Port, Tianjin Port Or Negotiable |
Warranty: |
1 Years |
Customized Support: |
OEM, ODM, Bespoke Customised Signs (minimum Order Of 20 Set, Customised Packaging (minimum Order 500 Sets), Graphic Customisation (minimum Order Of 50 Sets) |
Technics: |
Forging/casting/vulcanization/galvanizing |
Connection: |
Flange |
Shape: |
Round |
Head Code: |
Equal |
Product Name: |
Rubber Expansion Joint |
Materials: |
EPDM/NBR/NR/IIR Etc. |
Flange Material: |
CS, SS304, SS316, Etc. |
Work Stress: |
6-40bars(PN6-PN40) |
Media: |
Air, Water, Sewage, Acid, Oil, Etc. |
Operating Temperature: |
-15~+80℃ (Special: -30~+150℃) |
Pressure: |
2 Times The Working Pressure |
Standard: |
JIS, DIN, ANSI, ASME, Etc. |
Port: |
Qingdao Port, Tianjin Port Or Negotiable |
| Four simple steps to teach you to select rubber joints: |
| 1. Look: whether there are depressions in the inner wall, no depressions can not achieve the expansion effect |
| 2. smell: excellent rubber joints do not have a pungent smell |
| 3. Weight: excellent joints are heavy, with sufficient materials |
| 4. Sturdiness: when stepping on it, a small rubber joint can support the weight of an adult and will not collapse |
| Basic information of rubber joint products | ||
| Product Name | Double sphere rubber expansion joint | |

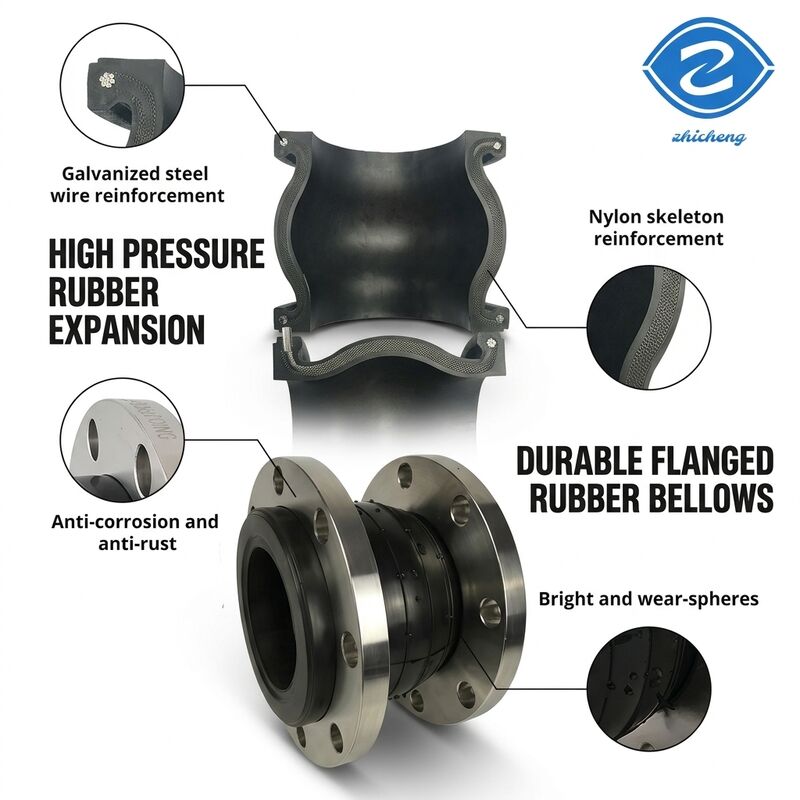

| Characteristics | 1.The form: this product consists of rubber pipe, made of inner glue, multi-layerproofinf and cord fabric and outer glue abd metal woggle joint. 2. Small size ,light weight,good elasticity,easy to install. Characteristics
3.lt can absorb lateral, axial and angular displacement caused by pipe vibration after instalation,and is not limited by pipe's non-concentric and non-parallel flange. 4 .When working,the structure can be reduce noise transmission and strong vibrationabsorption ability.
|
|
| Application | It is applicable for the connection of inlet and outlet pipes of various fancoil sets of airApplication in the guest rooms of hotels and restaurants. |
|
Double sphere rubber bellows coupling is generally consist of the inner and the outer rubber
layer and fabric reinforced layer (the enhancement layer has a multilayer spreading cord fabric),
vulcanization molded in high temperature and high pressure , then assembly together with rubber
tube and metal flange or parallel joint sleeve.It is mainly used for pipeline, pump and valve
connection etc,applicable media could be air,compressed air,water,sea water,hot water,oil,acid
and alkali etc.
