Product Details
Place of Origin: Henan, China
Brand Name: ZHICHENG
Model Number: ZCF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $90.00/sets 1-99 sets
Warranty: |
1year |
Customized Support: |
ODM, OEM, OEM, ODM |
Technics: |
Forged/vulcanization |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Material: |
EPDM/NBR/NR/FKM Etc |
Product Name: |
Rubber Expansion Joint |
Application: |
Air,water,sewage,acid,oil,etc. |
Working Temperature:: |
-15℃-80℃(-30℃-150℃) |
Flange Material: |
Carbon Steel Galvanized,Stainless Steel Etc. |
Flange Standard: |
DIN,ANSI,JIS Etc. |
Explosion Pressure: |
3 Times Of Working Pressure |
Certificate: |
ISO9001, TUV, WRAS, CO, MTC, PL, IV Etc |
Working Pressure: |
6-40bars(PN6-PN40) |
Warranty: |
1year |
Customized Support: |
ODM, OEM, OEM, ODM |
Technics: |
Forged/vulcanization |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Material: |
EPDM/NBR/NR/FKM Etc |
Product Name: |
Rubber Expansion Joint |
Application: |
Air,water,sewage,acid,oil,etc. |
Working Temperature:: |
-15℃-80℃(-30℃-150℃) |
Flange Material: |
Carbon Steel Galvanized,Stainless Steel Etc. |
Flange Standard: |
DIN,ANSI,JIS Etc. |
Explosion Pressure: |
3 Times Of Working Pressure |
Certificate: |
ISO9001, TUV, WRAS, CO, MTC, PL, IV Etc |
Working Pressure: |
6-40bars(PN6-PN40) |
1.The rubber joint is composed of inner and outer rubber layer, nylon cord fabric
and steel ring, which is vulcanized and thencombined with metal flange or parallel
joint loose sleeve.
2.The product can reduce vibration and noise, and can compensatethermal expansion
and contraction caused by temperature change. It is widely used in various pipeline systems.

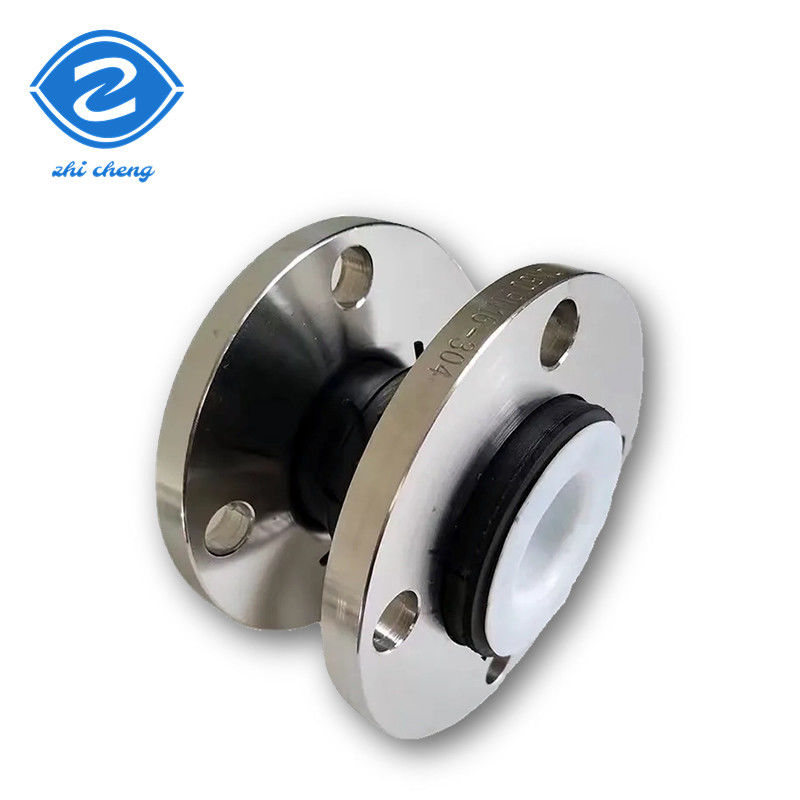

3.PTFE lined joint is based on the original conventional rubber joint, adding PTFE
coating lining inside, which can effectively protect the rubberjoint from corrosion and
medium erosion. For example, strong acid, strong alkali or high-temperature oil,
PTFE coating caneffectively adhere to the inner wall of the pipeline, prevent the separation
caused by medium erosion or pipeline tensilecontraction, so that the original mechanical and
physical properties of flexible rubber joint are not affected, and can stillcompensate for
pipeline vibration, absorb pipeline displacement and reduce pipeline noise.
MATERIAL OF AII PARTS
|
No.
|
Name
|
Material
|
|
1
|
Flange
|
SS304
|
|
2
|
Pressurized ring
|
Steel wire strand
|
|
3
|
Lined
|
PTFE
|
|
4
|
Outer/inner rubber
|
NR/NBR/EPDM
|
|
5
|
Frame
|
Nylon cord fabric
|
|
Model
|
Ⅰ
|
Ⅱ
|
Ⅲ
|
|
Working pressure(Kg f/cm²)
|
1.0(10)
|
1.6(16)
|
2.5(25)
|
|
Explosion pressure(Kg f/cm²)
|
2.0(20)
|
3.0(30)
|
4.5(45)
|
|
Vacuum(mmHg)
|
53.3(400)
|
53.3(400)
|
53.3(400)
|
|
Applicable Temperature
|
-15℃ - +80℃ (the special can reach -30℃ - +150℃)
|
||
|
|
Air, Water, Oil, Weak Acid and Alkali etc.
|
||
|
Inner
|
plastic film, then put into carton case
|
|
Outer
|
safe firmed export plywood case, marking on carton case and wooden case can be customized, or packing as per your requests.
|
|
Lead time
|
to be negotiated
|
|
Shipping:
|
Courier company transport, air freight and sea transport. It depends on your actual order details and quantity.
|
