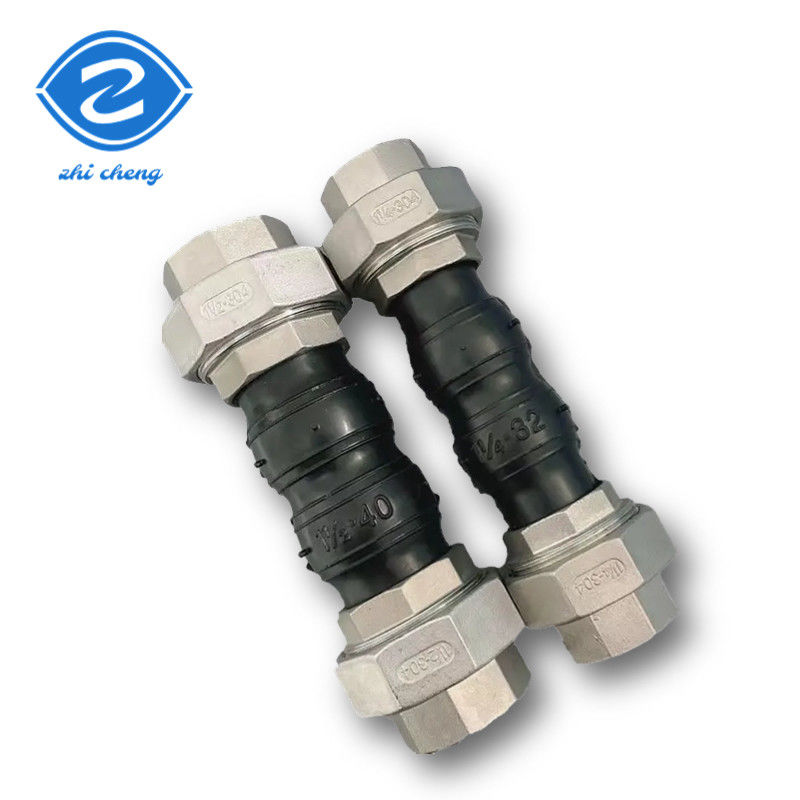

DN15 80mm Joint Epdm Flexible Rubber Expansion Joint With Internal Thread double ball expansion joint

Product Details

Place of Origin: Henan, China

Brand Name: Zhi Cheng

Certification: ISO 9001

Model Number: ZCH

Payment & Shipping Terms

Price: $475.00/bushels 1-99 bushels

Packaging Details: Inside: plastic film packaging.
Outside: export wooden box.

Supply Ability: 8000 Bushel/Bushels per Month

Get Best Price
Contact Now
Specifications
Highlight:

double ball expansion joint

,

Epdm Flexible Rubber Expansion Joint

,

DN15 Flexible Rubber Expansion Joint

Warranty:
1 Years
Customized Support:
OEM, ODM
Technics:
Forged
Connection:
Flange
Shape:
Round
Head Code:
Equal
Material:
Natural Rubber, Nitrile Rubber, EPDM Rubber, Etc.
Size:
DN15 - 80mm
Minimum Order Quantity:
1 Piece
Drawing:
Provide
Suitable Media:
Air, Water, Gases, Weak Acids, Weak Bases
Tensile Strength:
13.6
Connection Material:
Malleable Iron, Ss304 Etc.
Product Name:
SS304 Flexural Bellows Threaded Rubber Coupling
Packaging:
Wooden Boxes
Port:
Qingdao Port, Tianjin Port Or Negotiable
Warranty:
1 Years
Customized Support:
OEM, ODM
Technics:
Forged
Connection:
Flange
Shape:
Round
Head Code:
Equal
Material:
Natural Rubber, Nitrile Rubber, EPDM Rubber, Etc.
Size:
DN15 - 80mm
Minimum Order Quantity:
1 Piece
Drawing:
Provide
Suitable Media:
Air, Water, Gases, Weak Acids, Weak Bases
Tensile Strength:
13.6
Connection Material:
Malleable Iron, Ss304 Etc.
Product Name:
SS304 Flexural Bellows Threaded Rubber Coupling
Packaging:
Wooden Boxes
Port:
Qingdao Port, Tianjin Port Or Negotiable
Description
DN15 80mm Joint Epdm Flexible Rubber Expansion Joint With Internal Thread double ball expansion joint

DN15 80mm Joint Epdm Flexible Rubber Expansion Joint With Internal Thread double ball expansion joint 0
DN15 80mm Joint Epdm Flexible Rubber Expansion Joint With Internal Thread double ball expansion joint 1
Product structure
DN15 80mm Joint Epdm Flexible Rubber Expansion Joint With Internal Thread double ball expansion joint 2
Part
Name
Materials
1
Female thread
SS304/SS316 etc.
2
Fastening ring
SS304/SS316 etc.
3
External thread
SS304/SS316 etc.
4
Body
EPDM, natural rubber, NBR, IIR, etc.
5
Skeleton layer
Nylon cord fabric
Nominal diameter

Length (mm)
Axial displacement

Horizontal displacement
mm
inch

Compression
Extension

15
1/2
200/220
22
5-6
22
20
3/4
200/220
22
5-6
22
25
1
200/220
22
5-6
22
32
11/4
200/220
22
5-6
22
40
11/2
200/220
22
5-6
22
50
2
200/220
22
5-6
22
65
21/2
245
22
5-6
22
80
3
270
22
5-6
22
Threaded connection of rubber joints for mesh steel wire multi-body protection, in long-term use can prevent natural shrinkage, reduce aging and fracture, can replace other widely used in power plants, water plants, sewage plants expansion products, chemical industry, metallurgy and other industries.
DN15 80mm Joint Epdm Flexible Rubber Expansion Joint With Internal Thread double ball expansion joint 3
DN15 80mm Joint Epdm Flexible Rubber Expansion Joint With Internal Thread double ball expansion joint 4
We stock all sizes of rubber fittings throughout the year, so you can be assured of fast delivery and quality.
DN15 80mm Joint Epdm Flexible Rubber Expansion Joint With Internal Thread double ball expansion joint 5
DN15 80mm Joint Epdm Flexible Rubber Expansion Joint With Internal Thread double ball expansion joint 6

FQA

Q: Can you make products to customer specifications? A: Yes, we can make them to your specific requirements. Q: When will the products be delivered? A: Within 7 to 25 days after receipt of advance payment. Q: How do you guarantee the quality or any warranty? A: All products are returnable or can be returned at the consumer's request if any quality issues arise during use. Q: Do you have an OEM service? A: Yes. A wide range of product sizes, qualities and quantities can be customised to suit your needs. Q: What is your shipment and delivery time? A: Sea or air freight. Depending on the quantity of your order, delivery usually takes between 7 and 14 days. Q: Can I visit your factory before I order? A: Yes, you are welcome to visit our factory to check the quality Q: Where is your nearest port of loading? A: Shanghai, Qingdao or Tianjin, China or upon request. Q: What are your payment terms? A: T/T (30% as deposit, the remaining 70% will be paid prior to delivery), sight L/C
