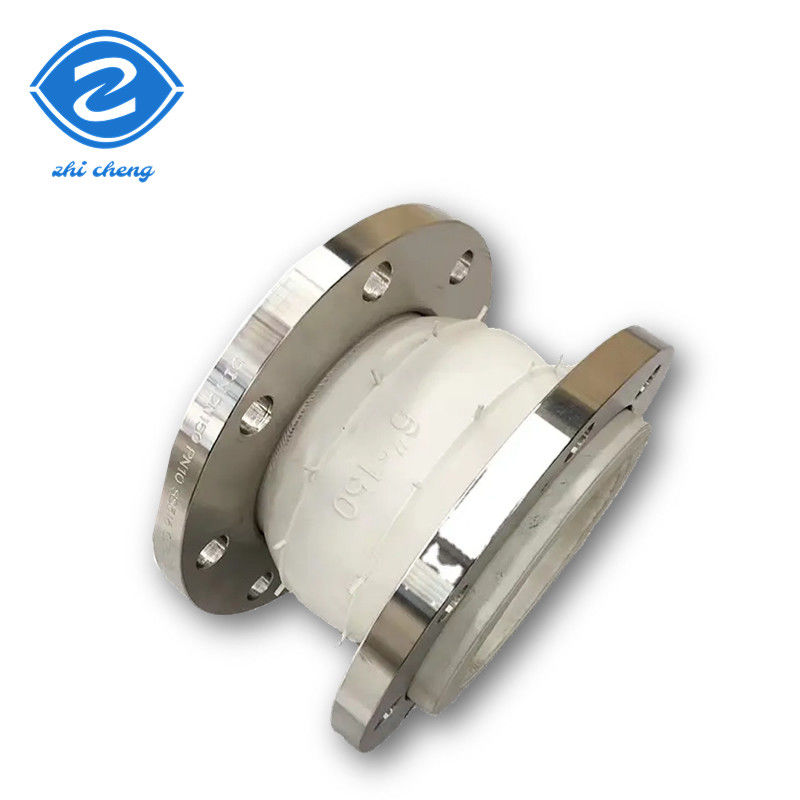

Stainless Steel Flange Rubber Single Ball Expansion Joints for Food Processing Line

Product Details

Place of Origin: Henan, China

Brand Name: ZHICHENG

Certification: ISO

Model Number: ZCF

Payment & Shipping Terms

Price: $13.20/sets 1-99 sets

Get Best Price
Contact Now
Specifications
Highlight:
Warranty:
1year
Customized Support:
ODM, OEM
Technics:
Forged/vulcanization
Connection:
Flange
Shape:
Equal
Head Code:
Round
Product Name:
Hot Selling Single Sphere Rubber Expansion Joint
Working Pressure:
PN6-PN40
Working Temperature:
-15℃-80℃(in Special -30℃-150℃)
Applicable Media:
Air,water,sewage,acid,oil,etc.
Nominal Diameter:
DN25-DN3000
Flange Material:
Carbon Steel Galvanized,Stainless Steel Etc.
Rubber Material:
NR,EPDM,NBR Etc.
Flange Standard:
DIN,ANSI,JIS Etc.
Factory Address:
Henan, China
Warranty:
1year
Customized Support:
ODM, OEM
Technics:
Forged/vulcanization
Connection:
Flange
Shape:
Equal
Head Code:
Round
Product Name:
Hot Selling Single Sphere Rubber Expansion Joint
Working Pressure:
PN6-PN40
Working Temperature:
-15℃-80℃(in Special -30℃-150℃)
Applicable Media:
Air,water,sewage,acid,oil,etc.
Nominal Diameter:
DN25-DN3000
Flange Material:
Carbon Steel Galvanized,Stainless Steel Etc.
Rubber Material:
NR,EPDM,NBR Etc.
Flange Standard:
DIN,ANSI,JIS Etc.
Factory Address:
Henan, China
Description
Stainless Steel Flange Rubber Single Ball Expansion Joints for Food Processing Line
Company Profile
Henan Province Zhicheng Valve & Fittings Manufacturing Co.
Our mission:
on product details, improve innovation, and meet user needs.
Our value: integrity and standardization, cooperation and win-win
Main products: rubber expansion joints, bellows expansion joints, metal hoses, double flange disassembly joints, flange adapters ,fabric expansion joints, bellows
Product Description
Pump And Valve Connectors Tubular Waterproof Joints Flange Type Flexible Epdm Expansion Joints
Stainless Steel Flange Rubber Single Ball Expansion Joints for Food Processing Line 0
Stainless Steel Flange Rubber Single Ball Expansion Joints for Food Processing Line 1
Stainless Steel Flange Rubber Single Ball Expansion Joints for Food Processing Line 2
Stainless Steel Flange Rubber Single Ball Expansion Joints for Food Processing Line 3
Specification
Material of rubber joint
No.
Name
Material
1
Outer/inner rubber
NR, NBR, EPDM, SBR, BR etc.
2
Frame
Nylon card fabric
3
Pressurized ring
Steel wire strand
4
Flange
Q235 carbon steel, 304 stainless steel etc.
Stainless Steel Flange Rubber Single Ball Expansion Joints for Food Processing Line 4
Technical conditions of rubber joint
Type
1
2
3
Working pressure(Kg f/cm2)
1.0(10)
1.6(16)
2.5(25)
Explosion pressure(Kg f/cm2)
2.0(20)
3.0(30)
4.5(45)
Vacuum value(mmHg)
2.0(20)
86.7(650)
100(750)
Applicable temperature
-15℃ ~ +80 ℃ (-30℃~+150℃ special)
Applicable media
Air,compressed air,water,sea water,hot water,oil,acid and alkali etc
Main connecting dimension of rubber joint
Nominal diameter(DN)
Length
Axial displacement
Horizontal displacement
Deflexion angle
mm
inch
Extension(mm)
Compression(mm)
mm
mm
(a1+a2)°
32
1 and 1/4
95
6
9
9
15°
40
1 and 1/2
95
6
10
9
15°
50
2
105
7
10
10
15°
65
2 and 1/2
115
7
13
11
15°
80
3
135
8
15
12
15°
100
4
150
10
19
13
15°
125
5
165
12
19
13
15°
150
6
180
12
20
14
15°
200
8
210
16
25
22
15°
250
10
230
16
25
22
15°
300
12
245
16
25
22
15°
350
14
255
16
25
22
15°
400
16
255
16
25
22
15°
450
18
255
16
25
22
15°
500
20
255
16
25
22
15°
600
24
260
16
25
22
15°
700
28
260
16
25
22
15°
800
32
260
16
25
22
15°
900
36
260
16
25
22
15°
1000
40
260
18
26
24
15°
1200
48
260
18
26
24
15°
1400
56
350
20
28
26
15°
1600
64
350
25
35
30
10°
1800
72
350
25
35
30
10°
2000
80
420
25
35
30
10°
2200
88
420
25
35
30
10°
2400
96
420
25
35
30
10°
2600
104
450
25
35
30
10°
2800
112
450
25
35
30
10°
3000
120
500
25
35
30
10°
Stainless Steel Flange Rubber Single Ball Expansion Joints for Food Processing Line 5
For offering you a qucik quotation,pls tell us
1.Which kind of media do you want to flow through the rubber expansion joint, water , oil or anything else ?
2.What's the nomial diameter of rubber expansion joint ?
3.What's the type of rubber expansion joint, equal or reducing shape ?
4.What's the material of rubber and flange, EPDM and stainless steel ?
5.What's the standard of flange, ANSI, DIN or anything else ?
6.What's the nominal pressure,150lb or 300lb ?
7.What's the length of rubber sphere?8.How many pieces of rubber expansion joints do you need in total ?
Stainless Steel Flange Rubber Single Ball Expansion Joints for Food Processing Line 6



Advantage of rubber expansion joint:
1.It excels in pressure resistance by the combination of spherical structure with super stability against internal pressure and
strong special reinforcing .
2.Superior absorption of vibration-noise-shock
3.Compensate greater elongation, compression , lateral and angular movement
Classification of rubber joint
Stainless Steel Flange Rubber Single Ball Expansion Joints for Food Processing Line 7
Concentric reducers
Stainless Steel Flange Rubber Single Ball Expansion Joints for Food Processing Line 8
end face fully sealed
Stainless Steel Flange Rubber Single Ball Expansion Joints for Food Processing Line 9
Food grade fluoroelastomer
Stainless Steel Flange Rubber Single Ball Expansion Joints for Food Processing Line 10
hand made
Stainless Steel Flange Rubber Single Ball Expansion Joints for Food Processing Line 11
Handmade double spheres
Stainless Steel Flange Rubber Single Ball Expansion Joints for Food Processing Line 12
With limit puller
Stainless Steel Flange Rubber Single Ball Expansion Joints for Food Processing Line 13
limit rodsPTFElinner
Stainless Steel Flange Rubber Single Ball Expansion Joints for Food Processing Line 14
union type
Stainless Steel Flange Rubber Single Ball Expansion Joints for Food Processing Line 15
Counterclamp type
Stainless Steel Flange Rubber Single Ball Expansion Joints for Food Processing Line 16
Packing & Delivery
Stainless Steel Flange Rubber Single Ball Expansion Joints for Food Processing Line 17
Stainless Steel Flange Rubber Single Ball Expansion Joints for Food Processing Line 18
Shipping:
1.FedEx/DHL/UPS/TNT for sample. Door-to-Door
2.By Air or By Sea for batch goods for LCL/FCL;Airport /Port receiving
3.Customers specified freight forworders or negotiable shipping methods!


Delivery Time :
a.in stock:immediately b.sample:about 3 days c.OEM/ODM:about 15 DAYS
