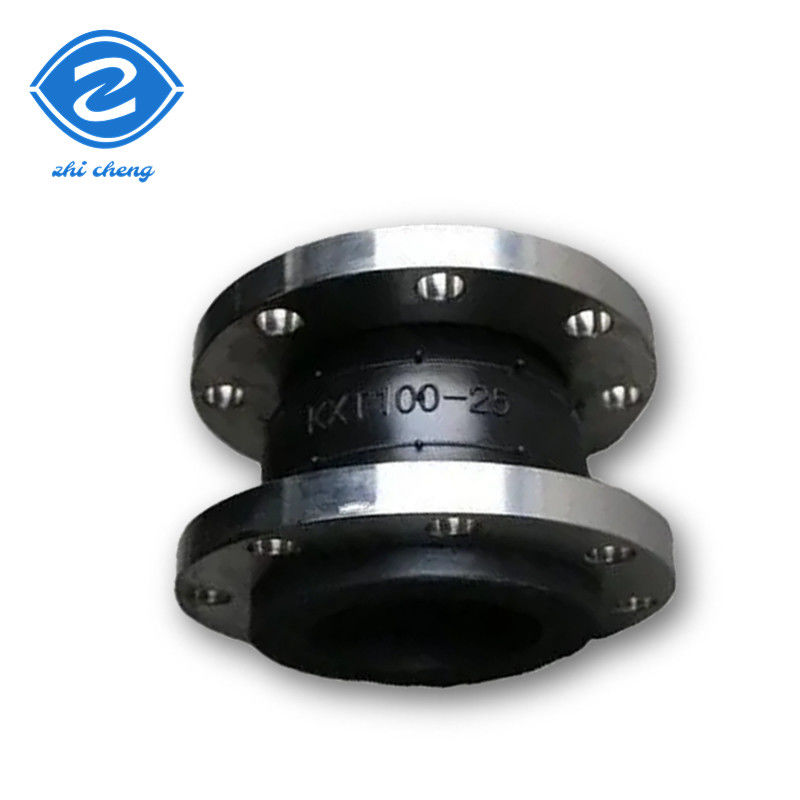

Hot Selling Single Sphere Rubber Expansion Joint
Working Pressure:
PN6-PN40
Working Temperature:
-15℃-80℃(in Special -30℃-150℃)
Applicable Media:
Air,water,sewage,acid,oil,etc.
Nominal Diameter:
DN25-DN3000
Flange Material:
Carbon Steel Galvanized,Stainless Steel Etc.
Rubber Material:
NR,EPDM,NBR Etc.
Flange Standard:
DIN,ANSI,JIS Etc.
Factory Address:
Henan, China
Warranty:
1year
Customized Support:
ODM, OEM
Technics:
Forged/vulcanization
Connection:
Flange
Shape:
Equal
Head Code:
Round
Product Name:
Hot Selling Single Sphere Rubber Expansion Joint
Working Pressure:
PN6-PN40
Working Temperature:
-15℃-80℃(in Special -30℃-150℃)
Applicable Media:
Air,water,sewage,acid,oil,etc.
Nominal Diameter:
DN25-DN3000
Flange Material:
Carbon Steel Galvanized,Stainless Steel Etc.
Rubber Material:
NR,EPDM,NBR Etc.
Flange Standard:
DIN,ANSI,JIS Etc.
Factory Address:
Henan, China
Description
Stainless Steel Single Sphere Rubber Fittings for Air Media and DIN Flange Standard
Company Profile
Henan Province Zhicheng Valve & Fittings Manufacturing Co.
Our mission:
on product details, improve innovation, and meet user needs.
Our value: integrity and standardization, cooperation and win-win
Main products: rubber expansion joints, bellows expansion joints, metal hoses, double flange disassembly joints, flange adapters ,fabric expansion joints, bellows
Stainless Steel Single Sphere Rubber Fittings for Air Media and DIN Flange Standard 0
Product Description
Pump And Valve Connectors Tubular Waterproof Joints Flange Type Flexible Epdm Expansion Joints
Stainless Steel Single Sphere Rubber Fittings for Air Media and DIN Flange Standard 1
Stainless Steel Single Sphere Rubber Fittings for Air Media and DIN Flange Standard 2
Stainless Steel Single Sphere Rubber Fittings for Air Media and DIN Flange Standard 3
Specification
Material of rubber joint
No.
Name
Material
1
Outer/inner rubber
NR, NBR, EPDM, SBR, BR etc.
2
Size
DN25-DN3000
3
Frame
Nylon card fabric
3
Pressurized ring
Steel wire strand
5
Flange
Q235 carbon steel, 304 stainless steel etc.
Stainless Steel Single Sphere Rubber Fittings for Air Media and DIN Flange Standard 4
Technical conditions of rubber joint
Type
1
2
3
Working pressure(Kg f/cm2)
1.0(10)
1.6(16)
2.5(25)
Explosion pressure(Kg f/cm2)
2.0(20)
3.0(30)
4.5(45)
Vacuum value(mmHg)
2.0(20)
86.7(650)
100(750)
Applicable temperature
-15℃ ~ +80 ℃ (-30℃~+150℃ special)
Applicable media
Air,compressed air,water,sea water,hot water,oil,acid and alkali etc
Main connecting dimension of rubber joint
Nominal diameter(DN)
Length
Axial displacement
Horizontal displacement
Deflexion angle
mm
inch
Extension(mm)
Compression(mm)
mm
mm
(a1+a2)°
32
1 and 1/4
95
6
9
9
15°
40
1 and 1/2
95
6
10
9
15°
50
2
105
7
10
10
15°
65
2 and 1/2
115
7
13
11
15°
80
3
135
8
15
12
15°
100
4
150
10
19
13
15°
125
5
165
12
19
13
15°
150
6
180
12
20
14
15°
200
8
210
16
25
22
15°
250
10
230
16
25
22
15°
300
12
245
16
25
22
15°
350
14
255
16
25
22
15°
400
16
255
16
25
22
15°
450
18
255
16
25
22
15°
500
20
255
16
25
22
15°
600
24
260
16
25
22
15°
700
28
260
16
25
22
15°
800
32
260
16
25
22
15°
900
36
260
16
25
22
15°
1000
40
260
18
26
24
15°
1200
48
260
18
26
24
15°
1400
56
350
20
28
26
15°
1600
64
350
25
35
30
10°
1800
72
350
25
35
30
10°
2000
80
420
25
35
30
10°
2200
88
420
25
35
30
10°
2400
96
420
25
35
30
10°
2600
104
450
25
35
30
10°
2800
112
450
25
35
30
10°
3000
120
500
25
35
30
10°
Data above is only for reference, much more information, please click here to contact us .
For offering you a qucik quotation,pls tell us
1.Which kind of media do you want to flow through the rubber expansion joint, water , oil or anything else ?
2.What's the nomial diameter of rubber expansion joint ?
3.What's the type of rubber expansion joint, equal or reducing shape ?
4.What's the material of rubber and flange, EPDM and stainless steel ?
5.What's the standard of flange, ANSI, DIN or anything else ?
6.What's the nominal pressure,150lb or 300lb ?
7.What's the length of rubber sphere?8.How many pieces of rubber expansion joints do you need in total ?
Stainless Steel Single Sphere Rubber Fittings for Air Media and DIN Flange Standard 5



Advantage of rubber expansion joint:
1.It excels in pressure resistance by the combination of spherical structure with super stability against internal pressure and
strong special reinforcing .
2.Superior absorption of vibration-noise-shock
3.Compensate greater elongation, compression , lateral and angular movement
