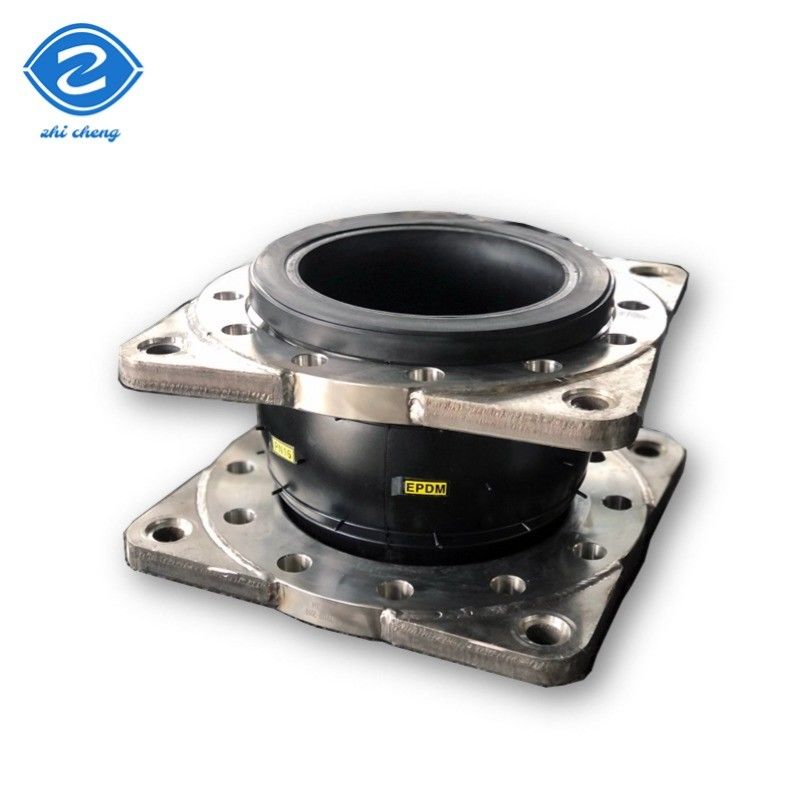

ANSI 150 LB Special valve pipeline carbon steel flange rubber flexible joint rubber Expansion Joint Fluororubber EPDM rubber

Product Details

Place of Origin: CHINA

Brand Name: zhi cheng

Model Number: KXT

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 5

Packaging Details: Different model numbers have different packaging sizes, please contact customer service.

Get Best Price
Contact Now
Specifications
Highlight:
Work Stress:
1.0 - 2.5 MPa
End Connections:
Flanged, Threaded, Or Grooved
Pressure:
Ansi 150;din'pn10,pn16
Businese Type:
Factory
Sample:
Available
Product:
Rubber Expansiion Joint
Service:
OEM ODM
Flange Standards:
DIN/JIS/ANSI/BS/ISO
Shape:
Equal
Type:
Eccentric Reducing
Seal:
EPDM
Temperature Range:
-40°F To 212°F
Factory Address:
Henan, China
Pressure Rating:
150 Psi
Application:
Piping Systems For Absorbing Thermal Expansion And Vibration
Work Stress:
1.0 - 2.5 MPa
End Connections:
Flanged, Threaded, Or Grooved
Pressure:
Ansi 150;din'pn10,pn16
Businese Type:
Factory
Sample:
Available
Product:
Rubber Expansiion Joint
Service:
OEM ODM
Flange Standards:
DIN/JIS/ANSI/BS/ISO
Shape:
Equal
Type:
Eccentric Reducing
Seal:
EPDM
Temperature Range:
-40°F To 212°F
Factory Address:
Henan, China
Pressure Rating:
150 Psi
Application:
Piping Systems For Absorbing Thermal Expansion And Vibration
Description
ANSI 150 LB Special valve pipeline carbon steel flange rubber flexible joint rubber Expansion Joint Fluororubber EPDM rubber

Product Description

Rubber expansion joints consist of inner and outer rubber, cord layer and steel wire

strand, which are vulcanized and then
combined with metal flanges or loose sleeves of parallel joints. It is widely used in

various pipeline systems.

ANSI 150 LB Special valve pipeline carbon steel flange rubber flexible joint  rubber  Expansion Joint Fluororubber EPDM rubber 0

The rubber expansion joints allow for four way movements, and they are molded

from synthetic rubber and nylon cord, and this can
reduce vibration and noise, and compensate thermal expansion and contraction

caused by temperature change.

ANSI 150 LB Special valve pipeline carbon steel flange rubber flexible joint  rubber  Expansion Joint Fluororubber EPDM rubber 1

The rubber expansion joints allow for four way movements, and they are molded

from synthetic rubber and nylon cord, and this can
reduce vibration and noise, and compensate thermal expansion and contraction

caused by temperature change.

ANSI 150 LB Special valve pipeline carbon steel flange rubber flexible joint  rubber  Expansion Joint Fluororubber EPDM rubber 2

ANSI 150 LB Special valve pipeline carbon steel flange rubber flexible joint  rubber  Expansion Joint Fluororubber EPDM rubber 3

NO
Name
Material
1
Outer/inner rubber
NR, EPDM, NBR, Neoprene etc.
2
Frame
Nylon cord fabric
3
Pressurized ring
Steel wire strand
4
Flange
Carbon steel galvanized, paint ductile iron, stainless steel etc.



Operation condition
Working temperature
-15℃~80℃(-30℃~150℃)
Working pressure
6-40bars(PN6-PN40)
Test pressure
1.5 times of working pressure
Explosion pressure
2 times of working pressure
Applicable media
Air, water, sewage, sea water, acid, alkali, oil etc.



ANSI 150 LB Special valve pipeline carbon steel flange rubber flexible joint  rubber  Expansion Joint Fluororubber EPDM rubber 4

( Note: Size range from DN25-3000 are all available, special size and length can

also be customized

please contact us for exact data.

ZHICHENG has a strict quality control system, the standard production process,

standardized factory testing means to ensure that
every product to meet the customer requirements, and provide customers with

high-quality products.

ANSI 150 LB Special valve pipeline carbon steel flange rubber flexible joint  rubber  Expansion Joint Fluororubber EPDM rubber 5

choose the products of ZHICHENG ?
1.24 hours online service-- anytime, anywhere can provide what you want.
2.100% quality inspection before shippment.
3.Strong production capability and strict quality control.

ANSI 150 LB Special valve pipeline carbon steel flange rubber flexible joint  rubber  Expansion Joint Fluororubber EPDM rubber 6

Packing & Delivery
Packaging
1.Inner package: plastic film with carton cases.
2.Outer package: wooden cases(usually the size of 1100mm*1100mm*1100mm).



ANSI 150 LB Special valve pipeline carbon steel flange rubber flexible joint  rubber  Expansion Joint Fluororubber EPDM rubber 7

Product installation

When the customer installs, we will provide installation instructions, installation
notes and maintenance instructions. and this
is the installation picture of the DN1800 rubber expansion joint.
ANSI 150 LB Special valve pipeline carbon steel flange rubber flexible joint  rubber  Expansion Joint Fluororubber EPDM rubber 8

FAQ

Q: Are you a trading company or a manufacturer?
A: We are manufacturers of rubber expansion joints, metal expansion joints, flexible hoses,

dismantling joints, trimmer joints,flange adapters and flanges with over 30 years experience.
Q: Do you have a catalogue?
A: Yes, we do. Please let me know your email or instant messenger and we will send you our

catalogue.
Q: Can you provide drawings and technical information?
A: Yes, our specialist technical department will design and supply drawings and technical data.
Q: Do you provide samples? Are they free of charge or do you charge for them?
A: Yes, we can provide samples free of charge, but transport costs are borne by the customer.
Q: Can the products be manufactured to the customer's requirements?
A: Yes, the above specifications are standard specifications and we can design and manufacture

as required.
