Product Details
Place of Origin: henan china
Brand Name: zhi cheng
Model Number: KXT JGD
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 20
Packaging Details: carton; wooden box
Delivery Time: 5-8 work days
Payment Terms: L/C, D/P, T/T, MoneyGram, Western Union, D/A
Body: |
Wcb |
Work Stress: |
1.0 - 2.5 MPa |
Technical: |
Vulcanized |
Rubber Material: |
EPDM, NBR, NR, Neoprene Etc |
Nominal Diameter: |
DN15-DN4000 |
Standard Of Flange: |
DIN,JIS,ANSI,etc. |
Medium: |
Water,oil,gas |
Material Of Flange: |
Carbon Steel, SS304, 316 Etc. |
Structure: |
Single Sphere |
Flange Standards: |
DIN/JIS/ANSI/BS/ISO |
Nominal Size: |
DN25 - DN3000 |
Material: |
Rubber |
Temperature Range: |
-40°F To 212°F |
Test Pressure: |
1.5 Times Of Working Pressure |
Head Code: |
Equal |
Body: |
Wcb |
Work Stress: |
1.0 - 2.5 MPa |
Technical: |
Vulcanized |
Rubber Material: |
EPDM, NBR, NR, Neoprene Etc |
Nominal Diameter: |
DN15-DN4000 |
Standard Of Flange: |
DIN,JIS,ANSI,etc. |
Medium: |
Water,oil,gas |
Material Of Flange: |
Carbon Steel, SS304, 316 Etc. |
Structure: |
Single Sphere |
Flange Standards: |
DIN/JIS/ANSI/BS/ISO |
Nominal Size: |
DN25 - DN3000 |
Material: |
Rubber |
Temperature Range: |
-40°F To 212°F |
Test Pressure: |
1.5 Times Of Working Pressure |
Head Code: |
Equal |

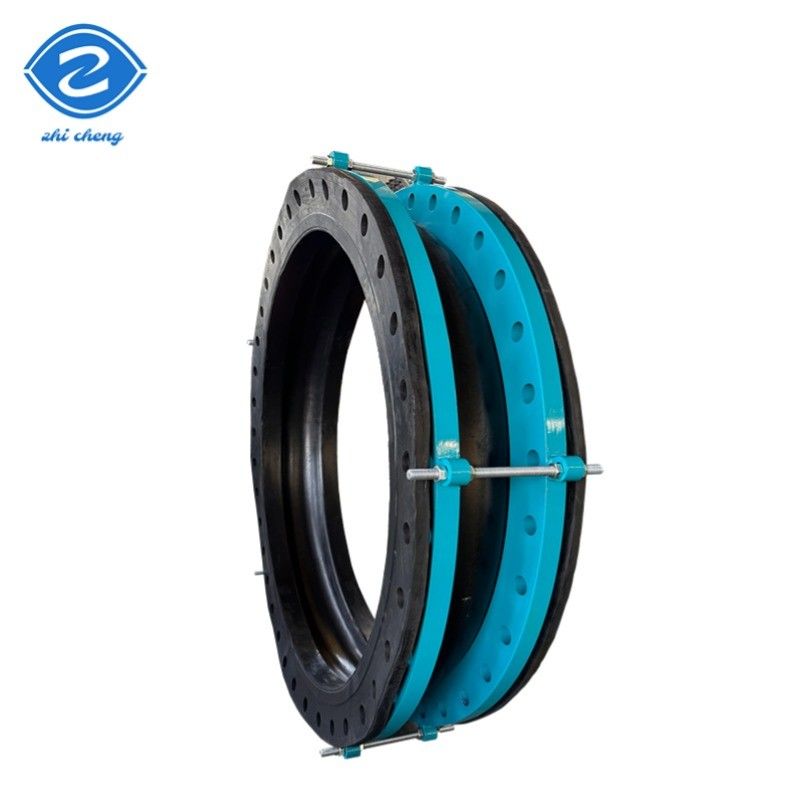

A Rubber Expansion Joint with Full Sealing Surface is a specialized type of flexible
joint designed to accommodate thermal expansion, vibration, and movement in
piping systems while ensuring a high level of sealing. It is commonly used in various
industries such as water treatment, HVAC, chemical processing, and more, where
leakage prevention is crucial.
| Material of rubber joint | ||
| NO. | Name | Material |
| 1 | Outer/inner rubber | NR, NBR, EPDM, SBR, BR etc. |
| 2 | Frame | Nylon card fabric |
| 3 | Pressurized ring | Steel wire strand |
| Technical conditions of rubber joint | |||
| Type | 1 | 2 | 3 |
| Working pressure(Kg f/cm2) | 1.0/10 | 1.6/16 | 2.5/25 |
| Explosion pressure(Kg f/cm2) | 2.0/20 | 3.0/30 | 4.5/45 |
| Vacuum value(mmHg) | 2.0(20) | 86.7(650) | 100(750) |
| Applicable temperature | -15℃ ~ +80 ℃ (-30℃~+150℃ special) | ||
| Applicable media | Air,compressed air,water,sea water,hot water,oil,acid and alkali etc | ||
Delivery Time :
a.in stock:immediately b.sample:about 3 days c.OEM/ODM:about 15 DAYS
Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement.
Q: What are your payment terms?
A: T/T (30% as desposit, the rest 70% will be paid before delivery), L/C
at sight.
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned
or according to consumer's requests.
Q: Do you accept small quantity order?
A: Of course we do.
Q: And what is your shipment and delivery time?
A: By sea or air. Normally 7 to 14 Days for delivery, according to your
order quantity. Pls send your detailed needs in the below and get a quick reply!
