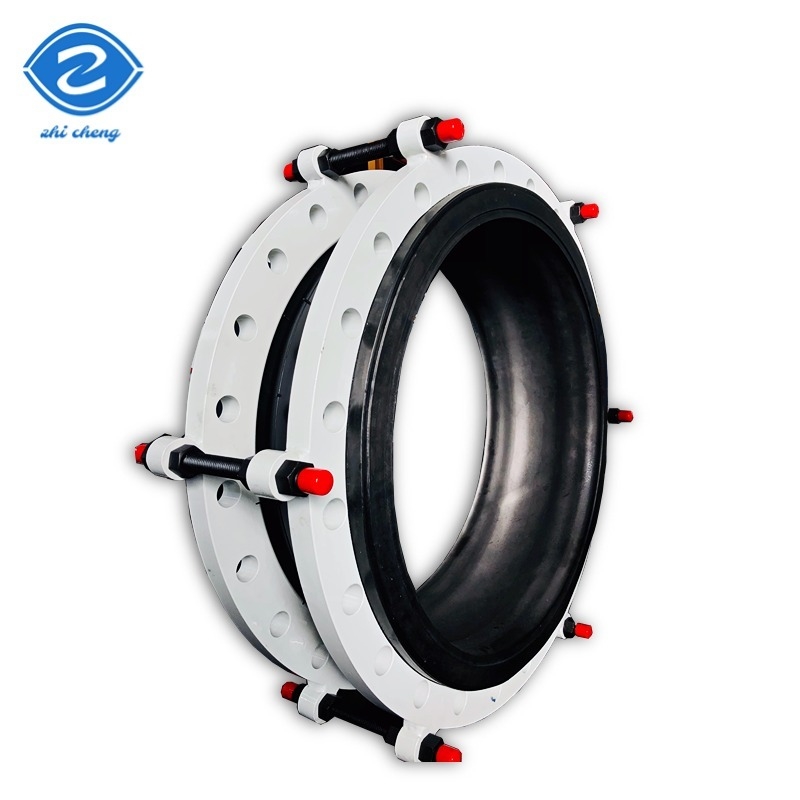

EPDM Single Flange Rubber Expansion Joint DN25-DN3000 PN6-PN40

Product Details

Place of Origin: Henan, China

Brand Name: ZHICHENG

Certification: CE / ISO

Model Number: ZCF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $13.20/sets 1-99 sets

Packaging Details: Inner: plastic film, then put into carton case.
Outer: safe firmed export plywood case, marking on carton case and wooden case can be customized, or packing as per your requests.

Delivery Time: 5-8work days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 100pic /5-7work days

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          EPDM rubber expansion joint flange, single flange expansion joint DN3000, rubber expansion joint PN40


Warranty:	1year	Customized Support:	ODM, OEM
Technics:	Forged/vulcanization	Connection:	Flange
Shape:	Equal	Head Code:	Round
Product Name:	Hot Selling Single Sphere Rubber Expansion Joint	Working Pressure:	PN6-PN40
Working Temperature:	-15℃-80℃(in Special -30℃-150℃)	Applicable Media:	Air,water,sewage,acid,oil,etc.
Nominal Diameter:	DN25-DN3000	Flange Material:	Carbon Steel Galvanized,Stainless Steel Etc.
Rubber Material:	NR,EPDM,NBR Etc.	Flange Standard:	DIN,ANSI,JIS Etc.
Factory Address:	Henan, China

Warranty:	1year
Customized Support:	ODM, OEM
Technics:	Forged/vulcanization
Connection:	Flange
Shape:	Equal
Head Code:	Round
Product Name:	Hot Selling Single Sphere Rubber Expansion Joint
Working Pressure:	PN6-PN40
Working Temperature:	-15℃-80℃(in Special -30℃-150℃)
Applicable Media:	Air,water,sewage,acid,oil,etc.
Nominal Diameter:	DN25-DN3000
Flange Material:	Carbon Steel Galvanized,Stainless Steel Etc.
Rubber Material:	NR,EPDM,NBR Etc.
Flange Standard:	DIN,ANSI,JIS Etc.
Factory Address:	Henan, China

Description

EPDM Single Flange Rubber Expansion Joint DN25-DN3000 PN6-PN40

Diamond Flange Rubber Expansion Joint Pipe Fittings Compensator DN450 DN100 Ball Connector Epdm Single Flange Sphere Bellow

Company Profile

Henan Province Zhicheng Valve & Fittings Manufacturing Co.

Our mission: Improve product details through innovation to meet user needs.

Our values: Integrity and standardization, cooperation and win-win

Main products: Rubber expansion joints, bellows expansion joints, metal hoses, double flange disassembly joints, flange adapters, fabric expansion joints, bellows

Product Description

Pump And Valve Connectors Tubular Waterproof Joints Flange Type Flexible EPDM Expansion Joints

Specification

Material of rubber joint
No.	Name	Material
1	Outer/inner rubber	NR, NBR, EPDM, SBR, BR etc.
2	Frame	Nylon card fabric
3	Pressurized ring	Steel wire strand
4	Flange	Q235 carbon steel, 304 stainless steel etc.

Technical conditions of rubber joint
Type	1	2	3
Working pressure(Kg f/cm2)	1.0(10)	1.6(16)	2.5(25)
Explosion pressure(Kg f/cm2)	2.0(20)	3.0(30)	4.5(45)
Vacuum value(mmHg)	2.0(20)	86.7(650)	100(750)
Applicable temperature	-15℃ ~ +80 ℃ (-30℃~+150℃ special)
Applicable media	Air, compressed air, water, sea water, hot water, oil, acid and alkali etc

For Quick Quotation

Please provide the following information:

Media type (water, oil, etc.)
Nominal diameter
Type (equal or reducing shape)
Material of rubber and flange
Flange standard (ANSI, DIN, etc.)
Nominal pressure (150lb or 300lb)
Length of rubber sphere
Total quantity needed

Advantages

Excellent pressure resistance with spherical structure and special reinforcing
Superior absorption of vibration, noise, and shock
Compensates for greater elongation, compression, lateral and angular movement

Classification of Rubber Joint

Counterclamp Type

For quick quotation, please provide:

Nominal diameter
Work pressure
Applicable medium
Material
Applicable temperature
Length
Quantity

Packing & Delivery

Shipping Options:

FedEx/DHL/UPS/TNT for samples (Door-to-Door)
By Air or By Sea for batch goods (LCL/FCL)
Customer-specified freight forwarders

Delivery Time:

In stock: Immediately
Sample: About 3 days
OEM/ODM: About 15 days

FAQ

Q: Can you make the product as per client's requirement?

A: Yes, we can make it with your exact requirement.

Q: What are your payment terms?

A: T/T (30% deposit, 70% before delivery) or L/C at sight.

Q: Where is your nearest loading port?

A: Shanghai, Qingdao or Tianjin, China.

Q: How can you guarantee the quality or any warranty?

A: If any quality problems occur, products can be returned or handled according to consumer's requests.

Q: Do you accept small quantity order?

A: Yes, we accept small quantity orders.

Q: What is your shipment and delivery time?

A: By sea or air. Normally 7 to 14 days for delivery, depending on order quantity.
