EPDM Acid and Alkali Resistant Rubber Expansion Joint with Carbon Steel Flange for DN25-DN3000 Piping Systems

Product Details

Place of Origin: zheng zhou

Brand Name: ZhiCheng

Certification: CE

Model Number: KXT

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 5-15

Packaging Details: Bubble Wrap, Cardboard Boxes, Wooden Crates

Delivery Time: 7 Work Days

Payment Terms: Paid In Full Before Shipment

Supply Ability: 8000 Pieces/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              EPDM acid resistant rubber expansion joint, Nitrile rubber oil resistant pipeline joint, flexible rubber joint with EPDM


Media:	Air, Water, Oil, Weak Acids And Bases	Type:	Expansion Joint
Head Code:	Equal	Porduct Name:	Tee Bellow Expansion Joint
Material Of Flange:	Carbon Steel	Nominal Diameter:	DN25 - DN3000
Flange Standard:	DIN, ANSI, JIS, Etc.	Material:	Rubber、EPDN、NBR、etc.

Media:	Air, Water, Oil, Weak Acids And Bases
Type:	Expansion Joint
Head Code:	Equal
Porduct Name:	Tee Bellow Expansion Joint
Material Of Flange:	Carbon Steel
Nominal Diameter:	DN25 - DN3000
Flange Standard:	DIN, ANSI, JIS, Etc.
Material:	Rubber、EPDN、NBR、etc.

Description

EPDM Acid and Alkali Resistant Rubber Expansion Joint with Carbon Steel Flange for DN25-DN3000 Piping Systems

Natural Rubber Flexible Joint - EPDM Acid & Alkali Resistant, Nitrile Rubber Oil Resistant Pipeline Connection

The Tee Bellow Expansion Joint is a versatile industrial rubber component designed to provide reliable flexibility and vibration absorption in piping systems. With a nominal size range from DN25 to DN3000, this expansion joint accommodates applications from small installations to large industrial pipelines. Its robust construction and flexible design make it essential for managing thermal expansion, mechanical vibrations, and misalignments within piping networks.

Manufactured with high-quality rubber materials, the Tee Bellow Expansion Joint handles various media including air, water, oil, and weak acids and bases. This broad compatibility ensures functionality across multiple industries such as chemical processing, water treatment, HVAC systems, and oil and gas. The product withstands working pressures ranging from 6 to 40 bars, demonstrating durability under demanding operational conditions.

Operation Conditions

Parameter	Specification
Working Temperature	-15~80℃ (-30~150℃)
Working Pressure	6~40 bars (PN6~PN40)
Test Pressure	1.5 times of working pressure
Explosion Pressure	2 times of working pressure
Applicable Media	Water, sea water, hot water, oil, acid, alkali, and more

Nominal diameter (DN)	inch	Length (mm)	Axial displacement - Extension(mm)	Axial displacement - Compression(mm)	Horizontal displacement (mm)	Deflexion angle
32	1 and 1/4	95	6	9	9	15
40	1 and 1/2	95	6	10	9	15
50	2	105	7	10	10	15
65	2 and 1/2	115	7	13	11	15
80	3	135	8	15	12	15
100	4	150	10	19	13	15
125	5	165	12	19	13	15
150	6	180	12	20	14	15
200	8	210	16	25	22	15
250	10	230	16	25	22	15
300	12	245	16	25	22	15
350	14	255	16	25	22	15
400	16	255	16	25	22	15
450	18	255	16	25	22	15
500	20	255	16	25	22	15
600	24	260	16	25	22	15
700	28	260	16	25	22	15
800	32	260	16	25	22	15
900	36	260	16	25	22	15
1000	40	260	18	26	24	15
1200	48	260	18	26	24	15
1400	56	350	20	28	26	15
1600	64	350	25	35	30	10
1800	72	350	25	35	30	10
2000	80	420	25	35	30	10
2200	88	420	25	35	30	10
2400	96	420	25	35	30	10
2600	104	450	25	35	30	10
2800	112	450	25	35	30	10
3000	120	500	25	35	30	10

For more information about our products, please contact us directly.

Certifications

Packing

Inner packaging: plastic film, then placed into carton case.

Outer packaging: secure export plywood case with customizable markings on both carton and

wooden cases. Custom packaging available per customer requirements.

Shipping

International express delivery via DHL, UPS, TNT, EMS, and others
Flexible transportation options based on your schedule and budget
Option to use your own cargo agent

Henan Province Zhicheng Valve & Fittings Manufacturing Co.

Our Mission: Focus on product details, drive innovation, and meet user needs.
Our Values: Integrity and standardization, cooperation and win-win partnerships.

Main Products: Rubber expansion joints, bellows expansion joints, metal hoses, double flange disassembly joints, flange adapters, fabric expansion joints, bellows.

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a manufacturer of rubber expansion joints, bellows expansion joints, metal hoses, breakaway joints, trimmer joints, flange adapters and flanges with over 30 years of experience.

Do you have a catalogue?

Yes, we do. Please provide your email or instant messenger details and we will send you our catalogue.

Can you provide drawings and technical information?

Yes, our specialist technical department will design and provide drawings and technical information.

Do you offer samples? Are they free of charge or do you charge for them?

Yes, we can provide samples for free, but shipping costs are borne by the customer.

Can the products be manufactured according to the customer's requirements?

Yes, the above specifications are standard and we can design and manufacture according to customer requirements.

Tags:

Developed for Low Maintenance and Absorption of Movement in Pipin Pump valve in and out 304 stainless steel lined PTFE flexible coupling

Get Best Price

Video

Oil Compatible Rubber Expansion Joint Featuring Low Maintenance and ODM Customized Support for Durable Pipeline Systems

Get Best Price

Video

ANSI Flange Standard EPDM Rubber Expansion Joint Nominal Diameter DN25 DN3000 Flexible Connector for Industrial Piping Systems

Get Best Price

Video

Nominal Diameter DN25 DN3000 Rubber Expansion Joint Developed for Low Maintenance and Absorption of Movement in Piping Networks

Get Best Price

Send your inquiry

Please send us your request and we will reply to you as soon as possible.

Send

Rubber Expansion Joint

Double Ball Rubber Expansion Joint

End Face Fully Sealed Rubber Expansion Joints

Concentric Reducing Rubber Expansion Joint

Eccentric Reducer Rubber Expansion Joint

Wire Buckle Rubber Expansion Joint

Clamp Type Rubber Expansion Joint

Duckbill Rubber Check Valve

Disassemtling Joint

Double Flange Limit Expansion Joint

Flexible Coupling Joints

Flange Adapter

Pipe Repair Clamps

Bellow Expansion Joints

Stainless Steel Metal Hose

Butterfly Valve

EPDM Acid and Alkali Resistant Rubber Expansion Joint with Carbon Steel Flange for DN25-DN3000 Piping Systems

EPDM acid resistant rubber expansion joint

Nitrile rubber oil resistant pipeline joint

flexible rubber joint with EPDM

2 inch rubber expansion joint,

ss expansion,

flanged expansion joint

1 4" 1 2 Inch Rubber Expansion Joint Dn50 Dn100 Dn1000 Dn200 Dn300 Dn350 Flange Pn80

DN15-DN4000 Pn16 Pn10 Carbon Steel Flange Rubber Compensator Epoxy Rubber Monosphere

EPDM Flexible Restrictive Tie Rubber Expansion Joint with PN10 Flange Sulphide Resistant

Sturdy Ss304 Flange Epdm Ptfe Lined Rubber Expansion Joint For 1.0 2.5 MPa Work Stress

Food Grade Rubber Expansion Joints for Safe Drinking Water Flange Connection -30-150C

SS304 Flange Double Sphere Rubber Expansion Joint with DN25-DN2000 Range for Flexible Pipe Connection

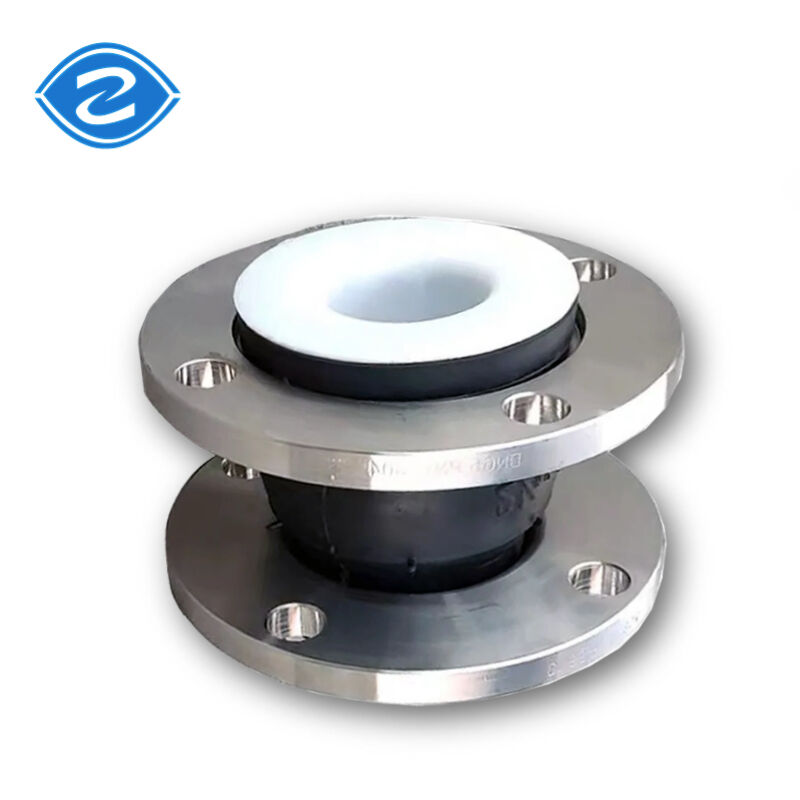

Developed for Low Maintenance and Absorption of Movement in Pipin Pump valve in and out 304 stainless steel lined PTFE flexible coupling
