Product Details
Place of Origin: Henan, China
Brand Name: Zhicheng
Model Number: B2F
Payment & Shipping Terms
Price: $535.60/sets 1-98 sets
Packaging Details: high quality dn2200 double flange piping plumbing industry metal expansion dismanting joint is packed by plastic film,then put into export wooden case.
Supply Ability: 5000 Set/Sets per Month
Warranty: |
3 Years |
Customized Support: |
ODM, OEM |
Technics: |
Forged |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Nominal Size: |
DN65-DN3200 |
Working Pressure: |
0-25 Bars |
Installation Length: |
200-450 Mm |
Material Of Body: |
Carbon Steel,Ductile Iron Or Stainless Steel |
Coating: |
Epoxy |
Production Drawing: |
Offer |
Manufactuer Factory: |
Yes |
OEM/ODM: |
Support |
Export Country: |
Australia,Canada,USA,Chile,Indonesia,Philippine Etc |
Product Name: |
Piping Plumbing Industry Metal Expansion Dismanting Joint |
Port: |
Qingdao Port Or Negotiable |
Warranty: |
3 Years |
Customized Support: |
ODM, OEM |
Technics: |
Forged |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Nominal Size: |
DN65-DN3200 |
Working Pressure: |
0-25 Bars |
Installation Length: |
200-450 Mm |
Material Of Body: |
Carbon Steel,Ductile Iron Or Stainless Steel |
Coating: |
Epoxy |
Production Drawing: |
Offer |
Manufactuer Factory: |
Yes |
OEM/ODM: |
Support |
Export Country: |
Australia,Canada,USA,Chile,Indonesia,Philippine Etc |
Product Name: |
Piping Plumbing Industry Metal Expansion Dismanting Joint |
Port: |
Qingdao Port Or Negotiable |

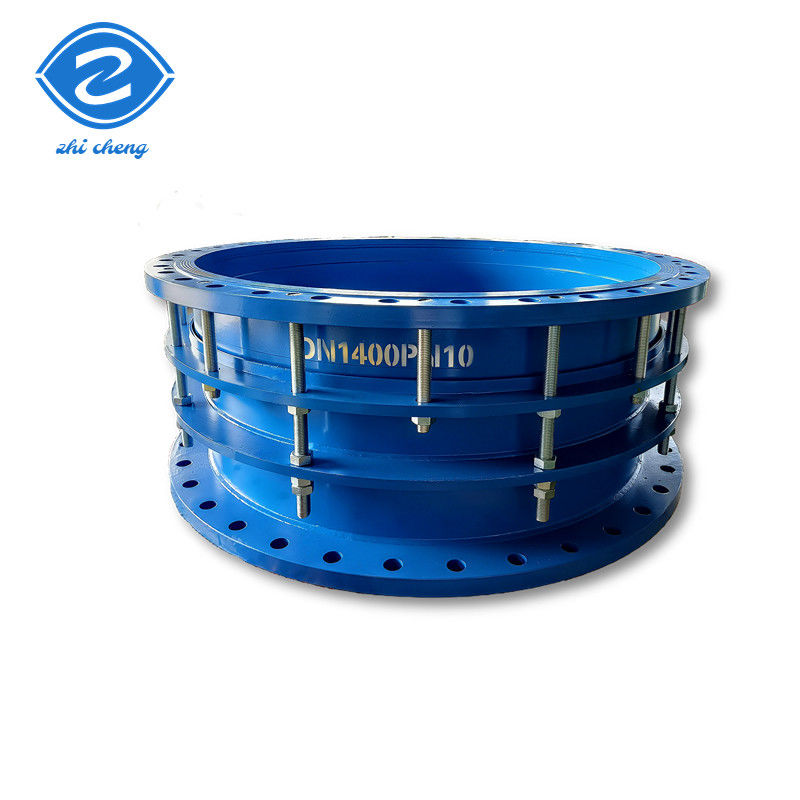

Double Flange Expanded Metal Disassembly Joint DN65-DN3200 with Production Drawing Offer
The double flange limited expansion joint is composed of main parts, sealing rings, gland, telescopic short pipe and other main components. On the basis of the original performance of the loose sleeve expansion joint, a limit device is added, and a double nut is used for locking at the maximum expansion. Pipeline can be free to expand in the allowable expansion, once exceeding its maximum expansion limit, to ensure the safe operation of the pipeline, especially for vibration or a certain degree of inclination and bending in the pipeline connection.
Datas above are only for reference,pls contact us for exact data and price!
The package should be accompanied by a valid certificate of product conformity, including the product name, product marking, production date, manufacturer name, factory address, trademark and implementation standard number.Ensure that the goods are delivered to the customer completely.
The material of double flange limited expansion joint is mainly Q235 carbon steel, stainless steel, cast steel, ductile iron and so on. Different materials and models are chosen for different purposes.
The factory was established in 1985, integrating design, manufacture, processing and sales. The main product series include: rubber expansion joints, bellows expansion joints and flexible metal hoses. Widely used in petroleum, chemical, metallurgy, power, construction, thermal power, water supply and other industries.
