Product Details
Place of Origin: Henan, China
Brand Name: ZHICHENG
Certification: International Organization for Standardization
Model Number: ZCC
Payment & Shipping Terms
Price: $20.00/bushels 1-99 bushels
Warranty: |
1 Years |
Customized Support: |
OEM, ODM |
Technics: |
Vulcanising And Forming |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Product Name: |

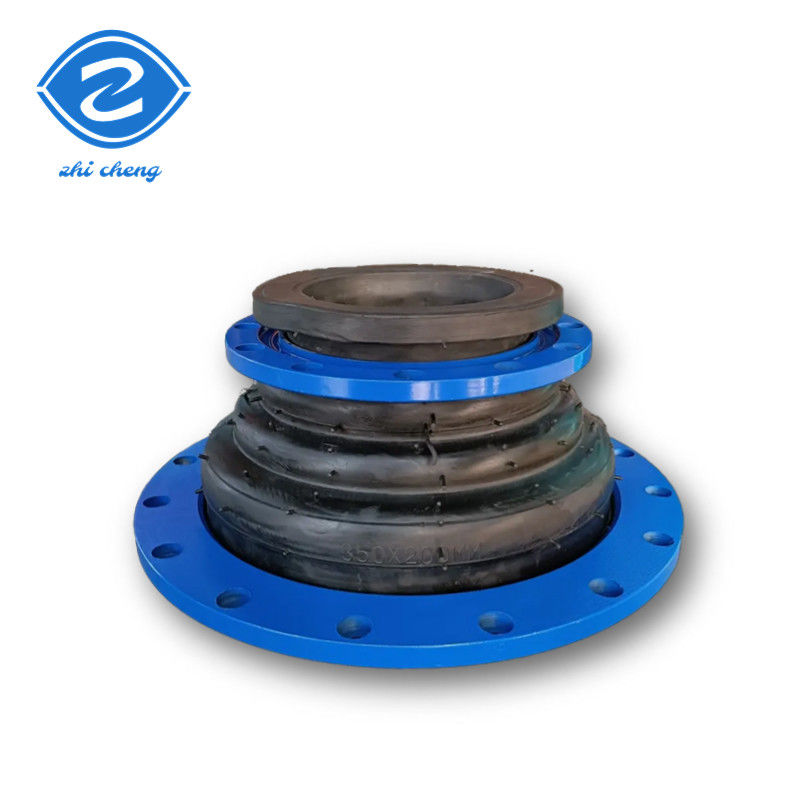

Pn16 Carbon Steel Epdm Flexible Concentric Reducer Rubber Joint |
Flange Material: |
CS, SS304, SS316, Etc. |
Work Stress: |
1.0 - 2.5 MPa |
Media: |
Air, Water, Oil, Weak Acids And Bases |
Size: |
DN25-DN300mm |
Flange Standards: |
DIN/JIS/ANSI/BS/ISO |
Vacuum: |
53.5-100mmHg |
MOQ:: |
1 Piece |
Warranty: |
1 Years |
Customized Support: |
OEM, ODM |
Technics: |
Vulcanising And Forming |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Product Name: |
Pn16 Carbon Steel Epdm Flexible Concentric Reducer Rubber Joint |
Flange Material: |
CS, SS304, SS316, Etc. |
Work Stress: |
1.0 - 2.5 MPa |
Media: |
Air, Water, Oil, Weak Acids And Bases |
Size: |
DN25-DN300mm |
Flange Standards: |
DIN/JIS/ANSI/BS/ISO |
Vacuum: |
53.5-100mmHg |
MOQ:: |
1 Piece |
The rubber flexible joint, also known as a rubber flexible joint, a flexible rubber joint, or a rubber
shock absorber, is a tub rubber component mainly composed of inner and outer rubber layers,
fabric layers, and steel wire rings. It is formed by high-temperature and high-pressure vulcanization
then combined with metal flanges. It is widely used in fire protection, chemical, pump valve,
and other pipeline systems to absorb displacement generated during operation, providing resistance
and noise reduction.
| NO | Name | Material | Name | Material |
| 1 | Union | Malleable iron/ss304 | Outer/inner rubber | EPDM,NR,NBR,PTFE,BR,CR,BR+CR,FKM,etc. |
| 2 | Outer/inner rubber | EPDM,NR,NBR,etc. | Frame | Nylon cord fabric |
| 3 | Frame | Nylon cord fabric | Flange | stainless steel,carbon steel,ductile iron. |
| Name | Size |
| Routine rubber joint | DN15~DN4000 |
| Concentric reducer rubber joint | DN32xDN25~DN600xDN500 |
| Eccentric reducer rubber joint | DN100xDN80~DN500xDN300 |
| NO | Name | Material | Remarks |
| 1 | Outer/inner rubber | EPDM,NR,NBR,PTFE,BR,CR,BR+CR,FKM,Sylopute. | Select different materials according to the media |
| 2 | Frame | Nylon cord fabric | the density and number of layers determine the pressure |
| 3 | Pressurized ring | Nylon cord fabric | Prevent pressure bearing deformation from being pulled off |
| 4 | Flange | stainless steel,carbon steel,ductile iron. | Choose different materials according to your requirements |
