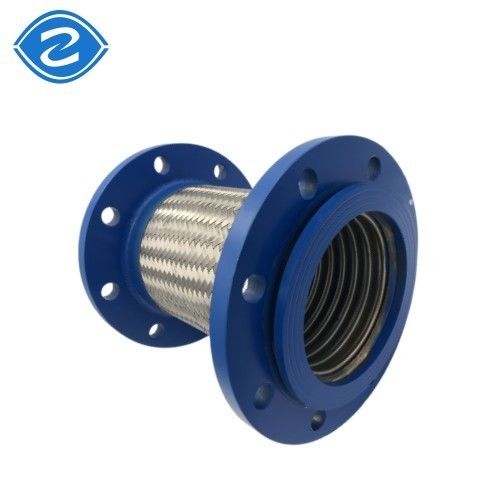

Chemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE Flange

Product Details

Place of Origin: China

Brand Name: ZHICHENG

Model Number: ZCR

Payment & Shipping Terms

Minimum Order Quantity: 10 sets

Price: $12.20/sets 10-99 sets

Get Best Price
Contact Now
Specifications
Highlight:

ss flexible metal hose

,

ss braided metal hose

,

SS Metal Hose

Customized Support:
OBM, ODM
Technics:
Forged
Connection:
Flange
Shape:
Equal
Head Code:
Round
Product Name:
Metal Flanged Braided Hose
Nominal Diameter:
DN8-DN400mm
Working Pressure:
PN10,PN16,PN25 Etc
Working Temperature:
<1200 ℃
Installation Length:
Customized
Production Drawing:
Offer
Material Of Bellow:
SS304, SS316, SS321etc
Material Of Braided Mesh:
SS304, SS316, SS321etc
Material Of Flange:
Carbon Steel, SS304, SS316 Etc
Warranty:
12 Months
Customized Support:
OBM, ODM
Technics:
Forged
Connection:
Flange
Shape:
Equal
Head Code:
Round
Product Name:
Metal Flanged Braided Hose
Nominal Diameter:
DN8-DN400mm
Working Pressure:
PN10,PN16,PN25 Etc
Working Temperature:
<1200 ℃
Installation Length:
Customized
Production Drawing:
Offer
Material Of Bellow:
SS304, SS316, SS321etc
Material Of Braided Mesh:
SS304, SS316, SS321etc
Material Of Flange:
Carbon Steel, SS304, SS316 Etc
Warranty:
12 Months
Description
Chemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE Flange

Chemical Anti-Corrosive Gas Compensator SS304 Metal Hose with PTFE Flange at 1200C

Product Description

Customized floating ss304 316 wire stainless steel flanged end connections braided flexible joint ptfe metal hose



PTFE metal hose: acid, alkali and salt resistant, mainly used for pipeline anti-corrosion

engineering.It can withstand various concentrations of acid and alkali.



Product structure: bellows, mesh sleeve and joint/flange.



Main body: the corrugated pipe is welded by thin-wall stainless steel and processed

in waveform, with disturbance resistance and good temperature and pressure resistance.



Mesh sleeve: (steel belt mesh sleeve or steel wire mesh sleeve) plays the role of strengthening

the protection of bellows and is the "skeleton" of metal hose. One layer, two-layer or three-layer

mesh sleeve can be selected according to different hose diameter and pressure.

Technical parameter

PTFE lined flexible metal hose:

Chemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE Flange 0

Technical parameter of metal hose with flange
Nominal diameter DN

Inner diameter

(mm)

Outer diameter Minimum bending radius Working pressure
Bellows Braid mesh Static Dynamic Single braid mesh Double braid mesh
8 8.8 13.2 14.4 50 110 15 20
10 11.7 16.5 17.7 65 145 185 20
15 13.5 19.5 21.1 80 180 18 20
20 20.0 27 28.6 120 270 10 15
25 27.0 34.5 36.1 160 360 6.3 10
32 32.0 40 41.6 175 400 4.0 6.3
40 39.6 52 53.6 225 510 4.0 6.3
50 49.7 62 63.6 280 640 3.0 5.0
65 61.2 80.2 81.8 410 915 3.0 5.0
80 79.0 96.3 97.9 486 1030 3.0 5.0
100 101.2 119.6 121.2 610 1340 2.5 4.0
125 124.1 145.3 146.9 700 1540 2.5 4.0
150 149.4 180.8 182.4 810 1780 2.5 4.0
200 176.0 240 243.2 1000 2000 2.5 4.0
250 248.0 290 294 1250 2500 2.5 4.0
300 298.0 350 354 1500 3000 1.6 2.5
350 347.0 400 404.8 1750 3500 1.6 2.5
400 397.6 460 464.8 2000 4000 1.6 2.5

Datas above are only for reference,want best price?pls click here to contact us now .

Character of metal flexible hose:
1. good softness, anti-fatigue.

2. high pressure resistant, high and low temperature resistant, corrosion resistant.

3. the service life of metal hose is much higher.

4. high comprehensive economical benefits.

Chemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE Flange 1



Hot sell products

Chemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE Flange 2

1.rubber expansion joint

2.bellows expansion joint

3.repair clamp

Why choose the flanged connection metal hose from zhicheng ?

1.24 hours online service-- anytime,anywhere can provide what you want.

2.100% quality inspection before shippment.

3.Reasonable price.

4.Strong production capability ,strict quality control, offer satisfied service.

Chemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE Flange 3

Chemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE Flange 4

Chemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE Flange 5

Product use

Application of metal flexible hose:

Chemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE Flange 6

Chemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE Flange 7

Test of metal flexible hose:

Chemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE Flange 8

If you are interested in our products, please click here to contact us on alibaba.com.

Certifications

Chemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE Flange 9

Packaging & Shipping

Inner: plastic film packing.

Outer: export wooden cases or pallet.

Chemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE Flange 10Chemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE Flange 11

Company Information

Henan Province Zhicheng Valve & Fittings Manufacturing Co., Ltd, established in 1985,

is located in Xicun Town Pipeline Industrial Park, Gongyi City, China, covering an area of

20,000 square meters. The production equipment is complete, with a monthly output of

10,000 pieces.

Main products: rubber expansion joints, bellows expansion joints, metal hoses,

disassembly joints, flange adapters, bellows, etc.

Our products are exported to more than 150 countries and regions overseas and we have

established long-term cooperative relationships with our customers, mainly exporting to

USA, Russia, Spain, Vietnam, Saudi Arabia, Egypt, Austria, Malaysia, Italy, Brazil, Thailand,

Turkey, Singapore, etc.

The company has passed the ISO9001:2008 quality management system certification and

has a strict quality control system, standard production process and standardized delivery

inspection program to ensure that the delivered products meet the technical requirements.

Our mission: to provide high quality products to our global customers

Our values: honesty and trustworthiness, win-win cooperation

Quality engineering with Zhicheng, finished product delivery recognition Zhicheng, choose

us, you will be 100% satisfied!

Chemical Anti-Corrosive Gas Compensator 304 SS Braided Metal Hose Flexible With PTFE Flange 12



If you have some questions, please click here to contact us on alibaba.com.

FAQ

Q: Do you have products catalog?

A: Yes, we have. Please tell me your email or instant messager, we will send our catalog.



Q: Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and technical data.



Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer sample free but shipping charges covered by customer.





Q: How long is your delivery time?
A: Depends on QTY, but normally no more than 30 working days.



Q: Can the products be manufactuered by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as

requirement.
