Type Flange Expansion Joint Galvanised Compression Flexible Connection

Product Details

Place of Origin: Henan, China

Brand Name: ZHICHENG

Model Number: C2F

Payment & Shipping Terms

Price: $35.60/sets 1-99 sets

Packaging Details: Wrapped in bubble wrap, placed in a cardboard box and finally packed in a wooden crate.

Supply Ability: 10000 Set/Sets per Month

Get Best Price
Contact Now
Specifications
Highlight:

expansion joint flange type

,

expansion joint flange type

,

flange expansion joint

Warranty:
1 Year
Customized Support:
ODM, OEM
Technics:
Casting Forging
Connection:
Flange
Shape:
Equal
Head Code:
Round
Warranty::
1 YEAR
Model Number::
SSJB(AY)
Working Pressure::
From Pn10 To Pn16
Color::
Blue
Technics::
Casting Forging
Medium::
Water
Nominal Size::
DN40- DN600mm
Drawing::
Offer
Product Certificate::
ISO9001, WRAS
Material Of Body::
Cast Iron,carbon Steel,stainless Steel
Port:
Qingdao Port Or Negotiable
Warranty:
1 Year
Customized Support:
ODM, OEM
Technics:
Casting Forging
Connection:
Flange
Shape:
Equal
Head Code:
Round
Warranty::
1 YEAR
Model Number::
SSJB(AY)
Working Pressure::
From Pn10 To Pn16
Color::
Blue
Technics::
Casting Forging
Medium::
Water
Nominal Size::
DN40- DN600mm
Drawing::
Offer
Product Certificate::
ISO9001, WRAS
Material Of Body::
Cast Iron,carbon Steel,stainless Steel
Port:
Qingdao Port Or Negotiable
Description
Type Flange Expansion Joint Galvanised Compression Flexible Connection
Flanged Galvanised Compression Expansion Joint Flexible Connection and Durable Design
Product Description

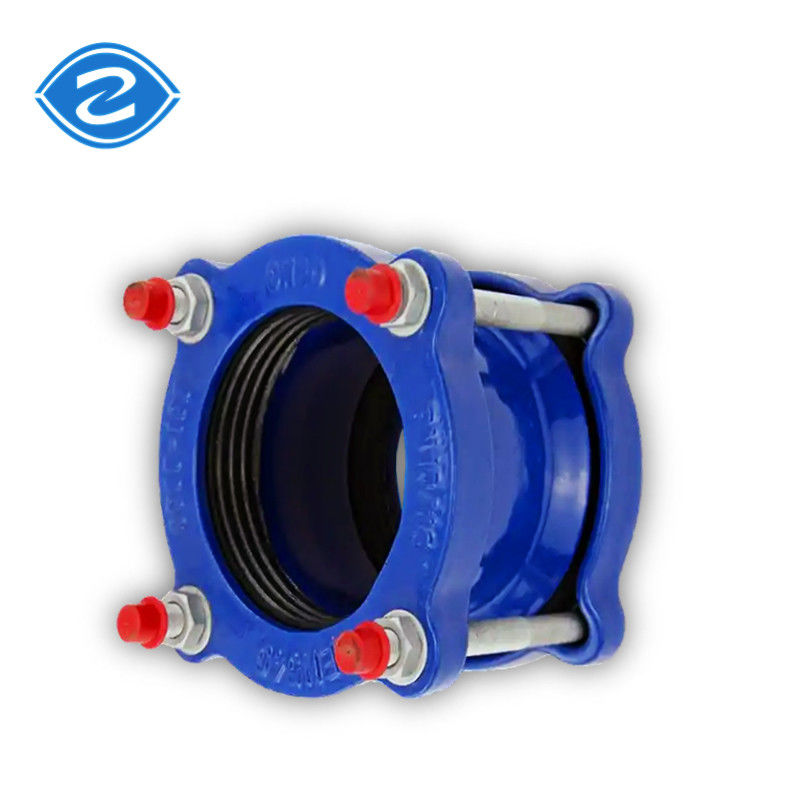

The dresser coupling is composed of loose sleeve telescopic joint and two spacing short pipes. It is mainly used to absorb the axial displacement and loose pipe connection under axial pressure and thrust in the allowable displacement range.
Type Flange Expansion Joint Galvanised Compression Flexible Connection 0
Specification
Type Flange Expansion Joint Galvanised Compression Flexible Connection 1
Structure and material of dresser coupling



Number
NoParts Name
Quality
Material
1
Cover
2
Ductile iron
2
Body
1
Ductile iron
3
Sealing ring
2
NBR,CR,EPDM,NR
4
Bolt
n
Q235,ss304,ss316
5
Nut
n
Q235,ss304,ss316
Main connecting dimension






Nominaldiameter
Code
Workingpressure
Connection size



DN

PN
D1
L1
L2
Weight
65
AH0002









PN10/PN16
72-85
170
92
3.3
80
AH0004

88-103
170

4.1
100
AH0006

108-128
170

4.8
125
AH0008

132-146
170
97
6.3
150
AH0010

158-182
190

7.2
200
AH0012

218-235
210
130
10.8
250
AH0014

272-289
210
130
17.5
300
AH0016

315-332
210
130
19.8
350
AH0018

351-368
240
135
27.5
400
AH0020

400-429
240
135
34.3
450
AH0022

455-472
240
135
41.2
500
AH0024

500-532
260
135
48.7
Product installation steps
Type Flange Expansion Joint Galvanised Compression Flexible Connection 2
Company Profile
Company :Henan Province Zhicheng Valve & Fittings Manufacturing Co.
Address:Xicun Pipeline Industrial Park,Xicun Town,Gongyi City,Henan Province,China
The factory covers an area of 40,000 square meters. The production equipment is complete, with a monthly output of 10,000 pieces.
The company has passed the ISO9001:2008 quality management system certification and has a strict quality control system, standard
production process and standardized delivery inspection program to ensure that the delivered products meet the technical
requirements.
The main products are:
rubber expansion joints, bellows expansion joints, metal hoses, double flange disassembly joints, flange adapters
Type Flange Expansion Joint Galvanised Compression Flexible Connection 3
Why Choose Us
Type Flange Expansion Joint Galvanised Compression Flexible Connection 4
Packing & Delivery
Type Flange Expansion Joint Galvanised Compression Flexible Connection 5
Type Flange Expansion Joint Galvanised Compression Flexible Connection 6
Packing: Inner plastic film packing, outer
standard export wooden case packing.

Shipping: Courier company transport, air freight and sea transport. It depends on your actual order details and quantity.
FAQ
Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement
Q: What are your payment terms?
A: T/T (30% as desposit, the rest 70% will be paid before delivery), L/C at sight
Q: Can I visit your factory before the order?
A: Yes, welcome to our factory to check the quality
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned or according to consumer's requests
Q: Do you accept small quantity order?
A: Of course we do.
Q: Can we choose different material?
A: Yes, the material can be chose according to your requirement.
Q: And what is your shipment and delivery time?
A: By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
Q: And what's your packing?
A: carton cases inside, export wooden cases outside.
