Product Details
Place of Origin: Henan, China
Brand Name: ZHICHENG
Model Number: ZCB-1
Payment & Shipping Terms
Minimum Order Quantity: 15 bushels
Price: $43.20/bushels 15-98 bushels
Warranty: |
1years |
Customized Support: |
OEM, ODM |
Technics: |
Casting |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Working Pressure:: |
PN10-PN40 |
Flange Standard:: |
DIN, ANSI, BS, ISO, JIS, EN 1092 |
Operating Temperature:: |
-10℃-+300℃ |
Flange Material:: |
Stainless Steel, Carbon Steel, Etc |
Application:: |
Air, Water, Oil, Steam, Etc. |
Package:: |
Wooden Case Packing |
Product Name:: |
Pipepline Flexible Expansion Joint Metal Corrugated Bello |
Certificate:: |
ISO 9001:2008 |
Drawing:: |
Offer |
Nominal Size:: |
DN32 - DN3000mm |
Warranty: |
1years |
Customized Support: |
OEM, ODM |
Technics: |
Casting |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Working Pressure:: |
PN10-PN40 |
Flange Standard:: |
DIN, ANSI, BS, ISO, JIS, EN 1092 |
Operating Temperature:: |
-10℃-+300℃ |
Flange Material:: |
Stainless Steel, Carbon Steel, Etc |
Application:: |
Air, Water, Oil, Steam, Etc. |
Package:: |
Wooden Case Packing |
Product Name:: |
Pipepline Flexible Expansion Joint Metal Corrugated Bello |
Certificate:: |
ISO 9001:2008 |
Drawing:: |
Offer |
Nominal Size:: |
DN32 - DN3000mm |

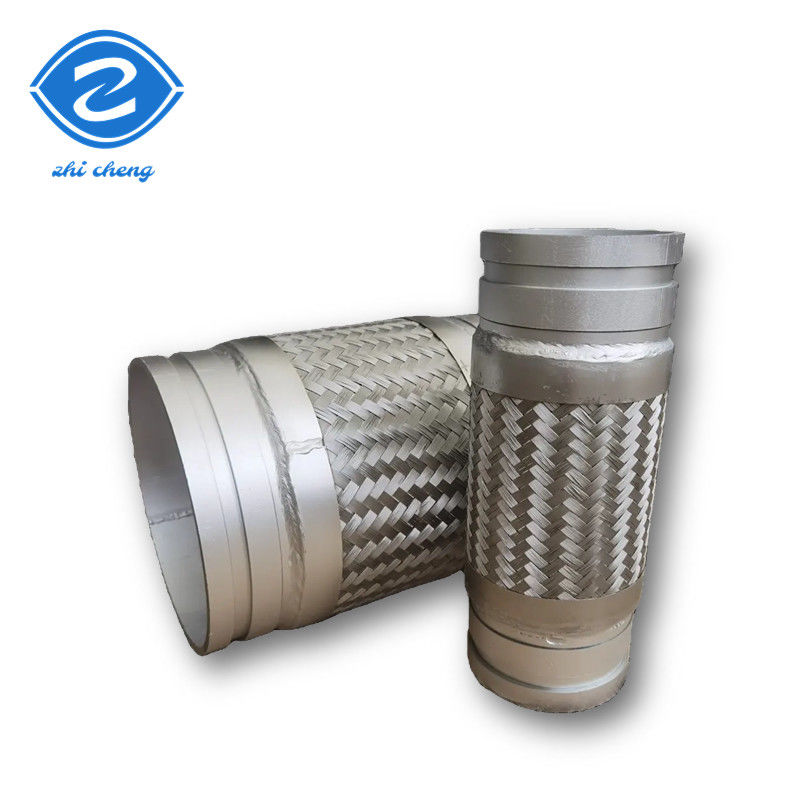

Drawing Offer 3" Stainless Steel Flanged Braided Bellows Expansion Joint Flexible Metal Hose
Technical parameter of Flanged Flexible Metal Hose
|
|
|
|
|
|
|
|
|||||||
Nominal
diameter
DN
|
Inner
diameter
(mm)
|
Outer diameter
|
|
Minimum bendingradius
|
|
Working pressure
|
|
|||||||
|
|
Bellows
|
Braid mesh
|
Static
|
Dynamic
|
Single
braid mesh
|
Double braid mesh
|
|||||||
8
|
8.8
|
13.2
|
14.4
|
50
|
110
|
15
|
20
|
|||||||
10
|
11.7
|
16.5
|
17.7
|
65
|
145
|
185
|
20
|
|||||||
15
|
13.5
|
19.5
|
21.1
|
80
|
180
|
18
|
20
|
|||||||
20
|
20.0
|
27
|
28.6
|
120
|
270
|
10
|
15
|
|||||||
25
|
27.0
|
34.5
|
36.1
|
160
|
360
|
6.3
|
10
|
|||||||
32
|
32.0
|
40
|
41.6
|
175
|
400
|
4.0
|
6.3
|
|||||||
40
|
39.6
|
52
|
53.6
|
225
|
510
|
4.0
|
6.3
|
|||||||
50
|
49.7
|
62
|
63.6
|
280
|
640
|
3.0
|
5.0
|
|||||||
65
|
61.2
|
80.2
|
81.8
|
410
|
915
|
3.0
|
5.0
|
|||||||
80
|
79.0
|
96.3
|
97.9
|
486
|
1030
|
3.0
|
5.0
|
|||||||
100
|
101.2
|
119.6
|
121.2
|
610
|
1340
|
2.5
|
4.0
|
|||||||
125
|
124.1
|
145.3
|
146.9
|
700
|
1540
|
2.5
|
4.0
|
|||||||
150
|
149.4
|
180.8
|
182.4
|
810
|
1780
|
2.5
|
4.0
|
|||||||
200
|
176.0
|
240
|
243.2
|
1000
|
2000
|
2.5
|
4.0
|
|||||||
250
|
248.0
|
290
|
294
|
1250
|
2500
|
1.6
|
4.0
|
|||||||
300
|
298.0
|
350
|
354
|
1500
|
3000
|
1.6
|
2.5
|
|||||||
350
|
347.0
|
400
|
404.8
|
1750
|
3500
|
1.6
|
2.5
|
|||||||
400
|
397.6
|
460
|
464.8
|
2000
|
4000
|
1.6
|
2.5
|
