Stainless Steel Flexible Coupling Quick For PE Pipe Live Joints

Name: Stainless Steel Flexible Coupling Quick For PE Pipe Live Joints
Brand: ZHICHENG
SKU: C2F
Price: 35.60 USD
Availability: InStock
Rating: 4.7 (153 reviews)

Product Details

Place of Origin: Henan, China

Brand Name: ZHICHENG

Model Number: C2F

Payment & Shipping Terms

Price: $35.60/sets 1-99 sets

Packaging Details: Wrapped in bubble wrap, placed in a cardboard box and finally packed in a wooden crate.

Supply Ability: 10000 Set/Sets per Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            stainless steel flexible coupling, Flexible Coupling Quick, Flexible Quick Coupling


Warranty:	1 Year	Customized Support:	ODM, OEM
Technics:	Casting Forging	Connection:	Flange
Shape:	Equal	Head Code:	Round
Warranty::	1 YEAR	Model Number::	SSJB(AY)
Working Pressure::	From Pn10 To Pn16	Color::	Blue
Technics::	Casting Forging	Medium::	Water
Nominal Size::	DN40- DN600mm	Drawing::	Offer
Product Certificate::	ISO9001, WRAS	Material Of Body::	Cast Iron,carbon Steel,stainless Steel
Port:	Qingdao Port Or Negotiable

Warranty:	1 Year
Customized Support:	ODM, OEM
Technics:	Casting Forging
Connection:	Flange
Shape:	Equal
Head Code:	Round
Warranty::	1 YEAR
Model Number::	SSJB(AY)
Working Pressure::	From Pn10 To Pn16
Color::	Blue
Technics::	Casting Forging
Medium::	Water
Nominal Size::	DN40- DN600mm
Drawing::	Offer
Product Certificate::	ISO9001, WRAS
Material Of Body::	Cast Iron,carbon Steel,stainless Steel
Port:	Qingdao Port Or Negotiable

Description

Stainless Steel Flexible Coupling Quick For PE Pipe Live Joints

Customized ODM Support Stainless Steel Flexible Quick Coupling for PE Pipe Live Joints

Product Description

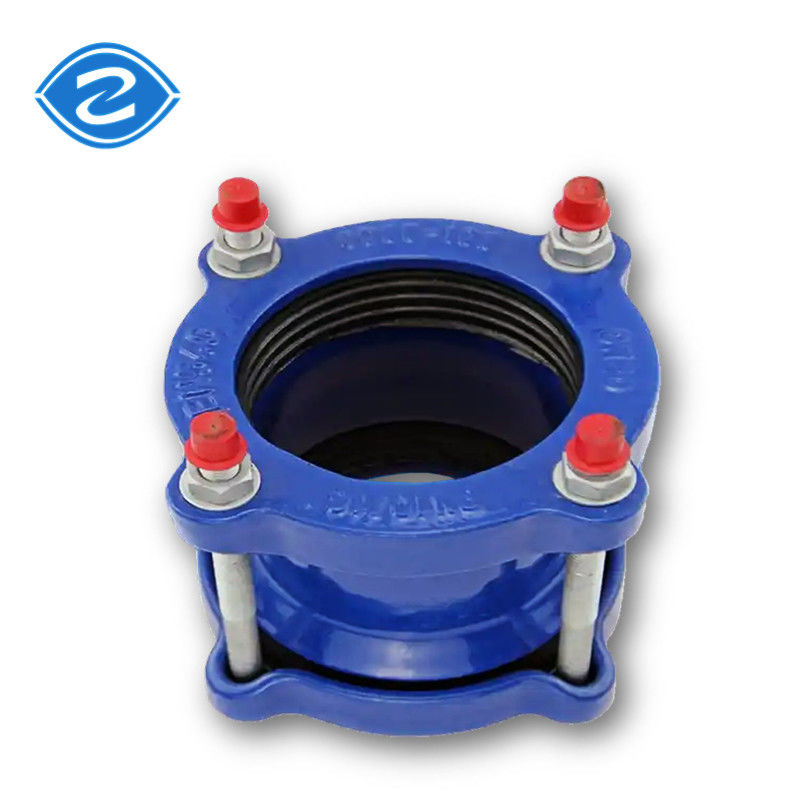

The dresser coupling is composed of loose sleeve telescopic joint and two spacing short pipes. It is mainly used to absorb the axial displacement and loose pipe connection under axial pressure and thrust in the allowable displacement range.

Specification

Structure and material of dresser coupling
Number	NoParts Name	Quality	Material
1	Cover	2	Ductile iron
2	Body	1	Ductile iron
3	Sealing ring	2	NBR,CR,EPDM,NR
4	Bolt	n	Q235,ss304,ss316
5	Nut	n	Q235,ss304,ss316

Main connecting dimension
Nominaldiameter	Code	Workingpressure	Connection size
DN		PN	D1	L1	L2	Weight
65	AH0002	PN10/PN16	72-85	170	92	3.3
80	AH0004			88-103	170		4.1
100	AH0006			108-128	170		4.8
125	AH0008			132-146	170	97	6.3
150	AH0010			158-182	190		7.2
200	AH0012			218-235	210	130	10.8
250	AH0014			272-289	210	130	17.5
300	AH0016			315-332	210	130	19.8
350	AH0018			351-368	240	135	27.5
400	AH0020			400-429	240	135	34.3
450	AH0022			455-472	240	135	41.2
500	AH0024			500-532	260	135	48.7

Product installation steps

Company Profile

Company :Henan Province Zhicheng Valve & Fittings Manufacturing Co.
Address:Xicun Pipeline Industrial Park,Xicun Town,Gongyi City,Henan Province,China
The factory covers an area of 40,000 square meters. The production equipment is complete, with a monthly output of 10,000 pieces.
The company has passed the ISO9001:2008 quality management system certification and has a strict quality control system, standard
production process and standardized delivery inspection program to ensure that the delivered products meet the technical
requirements.
The main products are: rubber expansion joints, bellows expansion joints, metal hoses, double flange disassembly joints, flange adapters

Why Choose Us

Packing & Delivery

Packing: Inner plastic film packing, outer
standard export wooden case packing.

Shipping: Courier company transport, air freight and sea transport. It depends on your actual order details and quantity.

FAQ

Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement
Q: What are your payment terms?
A: T/T (30% as desposit, the rest 70% will be paid before delivery), L/C at sight
Q: Can I visit your factory before the order?
A: Yes, welcome to our factory to check the quality
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned or according to consumer's requests
Q: Do you accept small quantity order?
A: Of course we do.
Q: Can we choose different material?
A: Yes, the material can be chose according to your requirement.
Q: And what is your shipment and delivery time?
A: By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
Q: And what's your packing?
A: carton cases inside, export wooden cases outside.
